Plant Equipment - AP3036, Part 11 (1st Ed) & Part 12 (2nd Ed) - Well-boring Equipment/Part 12 (2nd Ed) - Soil Stabilisation Equipment


It would appear that the release of the 1st Edition of AP3036 took place in late 1943/early 1944 as new pages begin to appear from February 194  The original edition was probably replaced by the 2nd edition in late 1950/early 1951 as the first Amendment List (AL1) was issued in March 195  AP3036 (2nd Edition) was also probably the final edition as it numerous ALs were issued until AL99 in November 1960.

The list below shows all the plant equipment shown in both editions of AP3036 between 1944 and 1960 with much of the later equipment still being in use until the RAF Airfield Construction Branch disbanded on 1 April 196  More details on each item of equipment will be added over time.  The listings in these documents were divided into a number of Parts covering a general category of equipment and each Part was further split into Sections, each covering a specific type of equipment

(1st Ed) indicates that the Part/Section was in the original 1st Edition of AP3036.  (2nd Ed) indicates that the Part/Section was in the original 2nd Edition of AP3036, whilst the addition of AL? indicates which Amendment List, introduced this Part/Section following the original release of AP3036 (2nd Edition)

Part 11 (1st Ed) & Part 12 (2nd Ed) - Well-boring Equipment

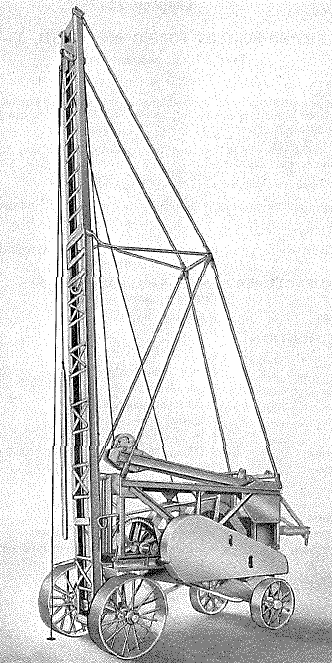

Ruston-Bucyrus boring rig, Model 33-W (to Part 14 - AL73)

Ruston-Bucyrus boring rig, Model 33-W (to Part 14 - AL73)

Description
  1. The boring rig is a percussion drilling machine for well drilling.  The basic components are a derrick, two-line hoist, spudding beam, and an engine.  The derrick can be folded down over the machine to facilitate transportation.

  2. The two-line hoist consists of one line for operating the drilling tools and another for operating the bailer or sand pump.

  3. The spudding beam raises and lowers the drilling tools.

  4. Power for operating the machine is supplied by a Ford 24 hp. industrial gasoline engine.

MT required for transportation -

  • Hand or Templewood 8-wheel flat trailer or

  • SMT, 20 ton, low-loading trailer

This item of equipment appears to have been added to the 2nd Edition by the issue of AL29 and was transferred to Part 14 by AL73.

Engine

Engine - Ford, Industrial, 4-cylinder, water-cooled, petrol:  Capacity - 200.57 cu in:  BHP - 52 at 2,600 rpm

Operating Data

Stroke

  • Maximum - 36 in

  • Intermediate - 30 in

  • Minimum - 24 in

Sand Reel - Friction driven, with capacity to carry 7 in. x 10 ft. bailer.  Provided with 1,450 ft. of 3/8 in. steel cable

Bull Reel - Provided with 1,450 ft. of 5/8 in. steel cable

Belt - 6 in. five ply endless Balata

Belt Tightener - Adjustable idler pulley

Dimensions

Weight - 8,960 lb

Frame

  • Length overall (without trailer bracket or wagon tongue) - 9ft. 10 in.

  • Width overall (including overhang of belt idler pulley and sand reel pulley) - 5 ft. 2 in.

  • Overall height of machine (above truck platform) - 5 ft. 8 in.

Derrick

  • Height (from ground to the centre of crown pulley) - 33 ft.

  • Telescopes - 1 ft.

  • Overall length when telescoped - 22 ft.

  • Overhang of derrick at rear - 5 ft. I I in.

Sleeve diameters

  •             Spudding - 16 in.

  •             Heel - 16 in.

  •             Sand line - 14 in.

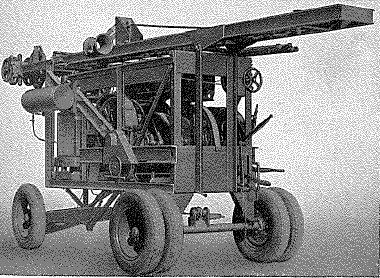

Ruston-Bucyrus boring rig, Model 22-RW (to Part 14 - AL73)

Ruston-Bucyrus boring rig, Model 22-RW - Erected  Ruston-Bucyrus boring rig, Model 22-RW - Travelling position

Description
  1. This boring rig is a percussion drilling machine for well drilling, generally similar in design to that described in the entry above.  It is capable of drilling the following range of bore holes: -

            16 in dia to a depth of 100 ft

            12 in dia to a depth of 200 ft

            10 in dia to a depth of 350 ft

            8 in dia to a depth of 500 ft

            6 in dia to a depth of 70 ft

  1. The machine described here is mounted on pneumatic tyred wheels and, with the derrick folded, can be towed at convoy speeds by a suitable MT vehicle.

This item of equipment appears to have been added to the 2nd Edition by the issue of AL60 and was transferred to Part 14 by AL73.

Engine

Ruston, Type 2VSH, 2-cylinder, water-cooled, Diesel:  Capacity - 143 cu in:  BHP - not stated

Machine Specification

Frame - Rolled steel sections, welded construction

Derrick - Steel channel and strip welded construction  telescopic height when extended approximately 36 ft; derrick can be folded along the top of the frame for transit

Shock absorber - Rubber and steel discs

Jackshaft - Belt-driven from engine

Belt - 5 in., 5-ply flat endless balata;  tension adjusted by idler pulley.

Bull reel - Gear-driven from jackshaft through clutch and sliding pinion; has capacity for 2,600 ft. of 5/8 in. steel cable.

Casing reel -Gear -driven from jackshaft through clutch and sliding pinion; has capacity for 350 ft. of 5/8 in. steel cable.

Sand reel - Driven from jackshaft through friction pulley; with capacity for 2,090 ft. of 3/8 in. steel cable

Spudding beam - Driven from jackshaft through clutch and pinion

Stroke

  • Maximum - 36 in

  • Intermediate - 30 in.

  • Minimum - 24 in.

Clutches - Anderton disc type

Running Gear

Chassis - Forecarriage bolted  to drill lower members rear axle attached directly to underside of drill frame.

Wheels and tyres - Four, three-piece type wheels with detachable flange; 7.00-20 pneumatic tyres all round, twin at rear.

Dimensions

Weight - 8,960 lb

Overall Dimensions

  • Length overall (with derrick folded) - 23 ft. 6 in.,

  • Overhang of derrick - 6 ft 7 in

  • Width overall - 7 ft. 0 in.

  • Overall height (with derrick folded) - 9 ft. 6 in.

  • Overall height (with derrick erected) - 38 ft. 10 in.

  • Wheelbase - 9 ft 2 in

  • Track - 6 ft 3 in (front), 7 ft 0 in (rear)

  • Height of towing eye (draw-bar level) - 17 in

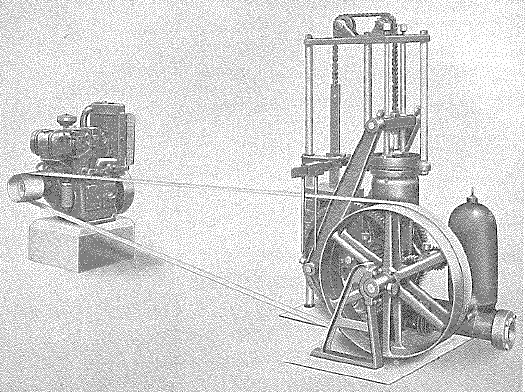

Godwin deep well pump, Type B (Lister 5/1 diesel engine)

Godwin deep well pump, Type B (Lister 5/1 diesel engine)

Description
  1. This type of pump is for use where the well is deep and it is necessary that the pump bucket and cylinder should be located at the bottom of the borehole.

  2. The bucket is operated by pump rods, which pass through the rising main, and are attached to a crosshead which works on guides secured to the pump body.  The required reciprocal motion is obtained by two connecting rods - one on each side - attached at their upper ends to the crosshead and at their lower ends to crank pins.  The crank pins are mounted on spur wheels which mesh with pinions keyed to a driving shaft provided with a fast and loose pulley.  The pulleys are coupled by means of a belt to a Lister 5/1 diesel engine.

  3. A balancing mechanism is attached to the crosshead to balance the weight of the pump rods and bucket.  This consists of a chain which after passing upwards over a sprocket and roller, falls downwards and is connected to a rod for the attachment of the balance weights.

MT required for transportation -

  • AEC, Matador, 4x4, Tractor

This item of equipment appears to have been added to the 2nd Edition by the issue of AL15.

Engine

Lister, Type 5/1, single cylinder, tank-cooled, Diesel:  Capacity - 87.5 cu in:  BHP - 6 at 650 rpm

Operating Data

Stroke - 12 in. and 15 in.

Minimum dia. of borehole - 6 in. for 4 in. rising main, 6 in. for 5 in. rising main

Diameter of delivery outlet - 4in.

Diameter of fast and loose pulleys - 30 in.

Width of driving belt - 4 in.

The below ground equipment will vary according to the depth of the well and the particular requirements of each installation.       The following is an example only of the below ground parts required in a typical installation used to raise water from a 262 foot deep well to a head of 30 feet above the surface.

Rising main - 250 feet of 4 in. dia. rising main pipe

Pump rods - 250 feet of tubular pump rods fitted with all necessary couplings, locknuts and guides

Suction pipe - 8 ft. of 2 in. suction pipe fitted with ball type foot valve and strainer

Borehole pump cylinder - One double acting borehole pump cylinder 3 in. dia. x 18 in stroke

The approximate output of the pump when operating at 26 double strokes per minute - that is at an engine speed of 650 rpm, the engine and pump pulleys being 6 in. and 30 in. in diameter respectively - is: -

1,500 Imperial gallons of water per hour with a 15 in. pump stroke

1,200 Imperial gallons of water per hour with a 12 in. pump stroke

Dimensions

Weight - 2,688 lb

  • Overall Length -12 ft. 0 in.

  • Overall Width - 4 ft. 2 in

  • Overall Height - 5 ft. 11 in



Godwin deep well pump, Type B (Petter AV2 diesel engine)

Godwin deep well pump, Type B (Petter AV2 diesel engine)

Description
  1. This type of pump is for use where the well is deep and it is necessary that the pump bucket and cylinder should be located at the bottom of the borehole.

  2. The bucket is operated by pump rods, which pass through the rising main, and are attached to a crosshead which works on guides secured to the pump body.  The reciprocal motion is obtained by two connecting-rods, one on each side, attached at their upper ends to the crosshead. and at their lower ends to crank pins. The crank pins are mounted on spur wheels which mesh with pinions keyed to a driving shaft provided with a fast and loose pulley.  The pulleys are coupled by means of a belt to a Petter diesel engine Type AV2

  3. A balancing mechanism is attached to the crosshead to balance the weight of the pump rods and bucket.  This consists of a chain which after passing upwards over a sprocket and roller falls downwards and is connected to a rod for the attachment of the balance weights

MT required for transportation -

  • AEC, Matador, 4x4, Tractor

This item of equipment appears to have been added to the 2nd Edition by the issue of AL55.

Engine

Petter, Type AV2, 2-cylinder, water-cooled, Diesel:  Capacity - 67.46 cu in:  BHP - 6 at 1,000 rpm, 5.4 when operating 24 hours per day in temperate climate.

Operating Data

Stroke - 18 in.

Minimum dia. of borehole - 6 in. for 5 in. rising main

Diameter of delivery outlet - 4in.

Diameter of fast and loose pulleys - 30 in.

Width of driving belt - 4 in.

The below ground equipment will vary according to the depth of the well and the particular requirements of each installation.       The following is an example only of the below ground parts required in a typical installation used to raise water from a 262 foot deep well to a head of 30 feet above the surface.

Rising main - 250 feet of 5 in. dia. rising main pipe

Pump rods - 250 feet of tubular pump rods fitted with all necessary couplings, locknuts and guides

Suction pipe - 8 ft. of 2 in. suction pipe fitted with ball type foot valve and strainer

Borehole pump cylinder - One double acting borehole pump cylinder 3 in. dia. x 18 in stroke

The approximate output of the pump when operating at 23 double strokes per minute is 1,500 Imperial gallons of water per hour with a 18 in. pump stroke.  This represents a countershaft speed of 115 rpm.

Dimensions

Weights

  • Engine - 654 lb

  • Power head - 1,600 lb

  • Balance weight, large - 115 lb

  • Balance weight, small - 50 lb

  • Pipe cylinder with suction pipe and foot valve - 200 lb

  • 10 ft of rising main pipe - 103 lb

  • 10 ft of pump rod with guide - 35 lb

Dimensions

  • Overall Length -11 ft. 3 in.

  • Overall Width - 3 ft. 9 in

  • Overall Height - 6 ft. 0 in

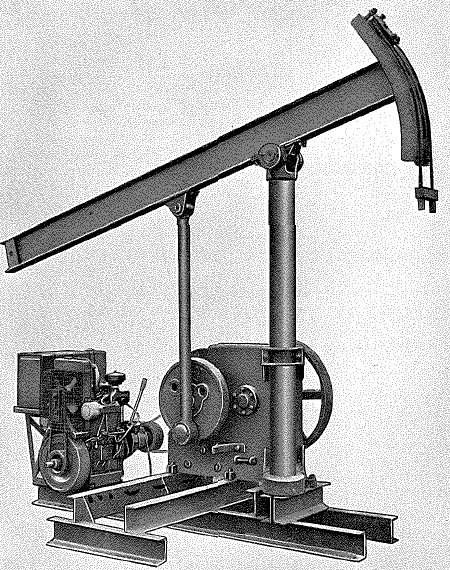

Edeco deep well pump Mk 3 (Petter AV2 diesel engine)

Edeco deep well pump Mk 3 (Petter AV2 diesel engine)

Description
  1. The Edeco Mk. 3 Deepwell Pump is used for raising water where owing to the depth of the well, it is necessary that the pump cylinder and bucket should be located below the water level.

  2. The bucket is operated by pump rods which are connected to a polished rod working through a stuffing box, the upper end of the polished rod being attached by a clamp to the carrier bar, which, in turn, is slung from the walking beam mulehead by a wire rope sling.

  3. The walking beam is provided with detachable balance weights which can be applied or removed in order to balance out the total weight of pump rods in suspension and half the weight of the water column.  The actual weights used will depend upon the depth of the well and the diameter of the pump cylinder.

  4. The power for operating the plant is supplied by a Petter AV2 diesel engine

  5. A hoist, which is supplied separately and which may be used to service a number of pumping units is arranged to bolt on to the pump unit frame after disconnecting the pitman which is then swung down to the ground.  It is coupled by a friction clutch to the crank disc and is engaged by a hand-operated lever when hoisting.  Lowering is controlled by a foot-operated hand brake.

MT required for transportation -

  • AEC, Matador, 4x4, Tractor

This item of equipment appears to have been added to the 2nd Edition by the issue of AL59.

Engine

Petter, Type AV2, 2-cylinder, water-cooled, Diesel:  Capacity - 67.46 cu in:  BHP - 6 at 1,000 rpm, 5.4 when operating 24 hours per day in temperate climate.

Machine Specification

Diameter of pulley - 32 in.

Drive - 4 x Vee belts

Speed of pulley shaft - 160 r.p.m.

Pump rods in. API weldless steel rod in lengths of 15 ft.

Rising main - 4 in. nominal bore x 5 wg tubing in lengths of 15 ft..

Working barrel -  5 in. x 24 in. stroke, fitted with cupped bucket and standing valve.

Operating Data

The theoretical yield with a total head of 200 ft. and a pump stroke of 24 in. at 25 strokes per minute, is 3,390 gallons per hour.   In practice, an allowance of 10% should be made for slip.  In tropical climates or at high altitudes, allowance should be made for loss of power from the engine.  For each additional 1,000 ft. in excess of 330 ft. above sea level, a deduction of 4% and for every 5 deg. F. rise above 65 deg. F. a deduction of 1 % must be made from the normal rated output.

Dimensions

Dimensions

  • Length (including engine) - 12 ft. 8 in.

  • Width (excluding hoist) - 3 ft. 6 in.

  • Width (including hoist) - 5 ft. 6 in.

  • Height - 9 ft. 6 in.

Weights

  • Pumping unit - 2,072 lb.

  • Engine - 830 lb.

  • Hoist - 490 lb.

  • Balance weight (large) - 112 lb.

  • Balance weight (small) - 56 lb.



Part 12 (2nd Ed) - Soil Stabilisation Equipment (from AL82, August 1956)

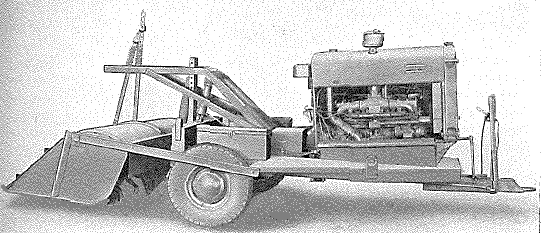

Seaman Rotary Pulvi-mixer, Model MHD-72

Seaman Rotary Pulvi-mixer, Model MHD-72

Description
  1. The Seaman Rotary Pulvi-mixer Model MHD-72 is a speed rotary pulverizer and mixer.  Its purpose is to pulverise or mix materials on site.  Power is supplied by a Waukesha gasoline engine Type MZRU mounted on the forward part of the machine.  The power is transmitted from the engine to the rotor assembly by shafts, a double universal joint and a spiral bevel gear.

  2. The mixer is primarily designed for mixing any type of binder with all kinds of soils or aggregates.

  3. The mixer is fitted with two pneumatic tyred wheels and a towing eye so that it can be towed by a tractor.

MT required for transportation -

  • Any flat platform trailer or lorry of 3 tons loading or over.

This item of equipment was moved to Part 12 in AL82.

Engine

Engine - Waukesha, 6 cylinder, water-cooled, petrol:  Capacity - 404 cu in:

Running Gear - 2 Pneumatic tyred wheels - 7.50 x 16

Operating Data

Width of operation - 75 in.

Depth of operation when pulverizing and mixing -  The depth of possible mixing is determined by the nature of the soil and aggregates, and by the speed of the tractor or truck towing the pulvi-mixer.  Actual depth of mixing operation is determined by the adjustments of the depth shoe and the rotor lifting bar.

Speed of travel - 1 to 2 mph

Power required to tow pulvi-mixer - Any wheeled or crawler type tractor of 30 belt horsepower or more, or any truck of one ton or over, provided it can run slow enough.

Dimensions

Weight - 4,625 lb

  • Overall Length -16 ft. 9 in.

  • Overall Width - 7 ft. 0 in

  • Overall Height - 6 ft. 6 in

  • Ground Clearance at axle - 1 ft 3 in
