AP2782 - Group 4

BC = Bogie Centres. GC = Ground Clearance. MPG = Miles per gallon. TC = Turning Circle. WB = Wheelbase.

RAF (Stores) Ref Nos were not given in this document but where they are shown, they have been assumed from later versions of AP2782. This edition also did not include photos so these have been added from AP2782A. When a vehicle appears in more than one edition of AP2782, the technical details have been assembled from all available data.

Details shown in RED are not quoted in the relevant entry and they are assumed to being the same as those shown for the basic vehicle given under other Groups.

Eagle, 5 ton, 4-wheel, trailer chassis Crown Copyright^©
RAF Ref No	16A/1117
Construction	Constructed of mild steel channels, gusseted and electrically welded where necessary. Socket and pin for tandem towing.
Suspension	Semi-elliptical, front and rear:
Wheels & Tyres	6.00x13 wheels with eight 9/167 in studs. 10.50-13 HD single tyres.
Steering	4 ft diameter turntable with centre pin and triangular drawbar fitted with a swivelling type towing eye. Limited lock.
Brakes	Internal expanding, fitted to rear wheels only, vacuum operated. Single line vacuum pipe-line extends to front and rear of trailer for connection to the tractor and for tandem towing. A parking brake lever is fitted to the near-side.
Dimensions	Overall length (towbar horizontal) - 21 ft 9 in; Length of frame - 15 ft 0 in; Overall Width - 7 ft 3-3/8 in; Frame width - 3 ft 5 in (front), 4 ft 2 in (rear) Height (frame laden) - 2 ft 5 in; WB - 8 ft 6 in; G/C - 9½ in; TC - 45 ft; Track - 6 ft 5 in: Centre towing eye to turntable pivot - 8 ft 11¾ in
Notes	Also shown in AP2782A, Section 15 and AP2782B, Section 8.

Brockhouse & Eagle, 6 ton, 4-wheel, trailer chassis
RAF Ref No	16A/1139
Suspension	Progressive semi-elliptical, all interchangeable.
Wheels & Tyres	Either 4-piece or 2-piece 6.00x13 wheels with eight 9/167 in studs. 10.50-13 single tyres. Hubs - Standar hubs, type 45 low loading.
Steering	Turntable (Lock limited to 27 degrees)
Brakes	Single line vacuum system operated from vacuum tank on motive unit. Girling brakes on rear wheels only operated from a single Clayton cylinder. Separate hand parking brake for applying brakes when disconnected from tractor. Extension from vacuum piping to connector on rear cross member to operate brakes on a second trailer when towing in tandam.
Dimensions	Overall length (towbar horizontal) - 22 ft 9 in; (less towbar) - 16 ft 3 in; Length of frame - 15 ft 6 in; Overall Width - 7 ft 5¾ in; Frame width - 3 ft 10½ in Height (frame laden) - 2 ft 10½ in; WB - 8 ft 11 in; G/C - 9½ in; TC - 45 ft; Track - 6 ft 7 in: Centre towing eye - (to turntable pivot) - 6 ft 6 in; (to front axle) - 10 ft 1½ in
Notes	Rear towing attachment - Pin and pintle. Also shown in AP2782A, Section 15 and AP2782B, Section 8.

Ambulance, Light, Morris type Y, 4x2 Crown Copyright^©
Manufacturer	Morris
RAF Ref No	Unknown
Engine	Morris, 4 cyl, petrol. Bore: 75 mm (2.95 in), Stroke: 102 mm (4.01 in), Capacity: 1.8 litres (110 Cu in). RAC rating - 13.94 hp.. Max BHP - 36 at 3,600 rpm.
Transmission	Clutch - Borg and Beck, Single dry plate 8 in diameter. Gearbox - 4 speed and reverse, synchromesh. Ratios - 1st - 3.98 to 1, 2nd - 2.29 to 1, 3rd - 1.48 to 1, 4th - 1 to 1, Reverse - 3.98 to 1. Front axle - 'H' Section Rear axle - ¾-floating, spiral bevel, ratio 5.428 to 1 Overall ratios - 21.58 to 1, 12.425 to 1, 8.025 to 1, 4th - 5.428 to 1, Reverse - 21.58 to 1:
Performance	Max Speed - not stated; MPG - 16; Radius of Action - 128 miles
Dimensions	Length - 14 ft 11 in (internal - 7 ft 10 in); Width - 5 ft 10 in (internal - 5 ft 4 in); Height - 7 ft 3 in (internal - 4 ft 8 in); WB - 8 ft 4 in; G/C - not stated; TC - 41 ft 10 in (Right), 42 ft 3 in (Left); Track - 4 ft 2 in (front), 4 ft 6 in (rear):
Weights	Unladen - 1 ton 6 cwt; Laden - 1 ton 16 cwt: Standing tonnage - 15.6 tons.
Body	Body - Wooden construction with metal gusset plates. Close boarded sides and front, 17 in high. 9 in wheel arches. Fixed canvas tilt, full width tailboard with double hinges, to form rear step. Accommodation for four stretchers carried on steel framework on two tiers. Hinged seats over wheel arches to provide for six sitting patients as an alternative to four stretchers. Canvas curtain at rear. Cab - All enclosed seating driver and one passenger, spare wheel carried on top of cab.
Suspension	Semi elliptical, front and rear with hydraulic shock absorbers.
Brakes	Hydraulic foot brakes on all wheels, mechanical hand brake on rear wheels.
Wheels/Tyres	Spoke disc 4.50 x 16/7.00-16 HD singles
Notes	Steering - Bishop cam. Also shown in AP2782A, Section 4.

Ambulance, Heavy, Ford WOT 1, 6x4 Crown Copyright^©
Manufacturer	Ford
RAF Ref No	16A/383
Engine	Ford, petrol V8. Bore: 77.79 mm (30625 in), Stroke: 95.25 mm (3.75 in), Capacity: 3.62 litres (221 cu in), RAC rating - 30.01 hp. Max BHP - 85 at 3,800 rpm; Max torque - 1,800 lbs/ins at 2,000 rpm.
Transmission	Clutch - Single dry plate, 11-1/8 in dia. Gearbox - 4 speed and 1 reverse. Ratios: 1st - 6.4 to 1, 2nd - 3.1 to 1, 3rd - 1.69 to 1, 4th - 1 to 1, reverse - 7.82 to 1: Front axle - 'H' Section Rear axle - Full floating, spiral bevel drive, ratios 6.67 to 1. Overall ratios - 42.65 to 1, 20.61 to 11.24 to 1, 6.67 to 1, reverse - 52.13 to 1
Performance	Max Speed - not stated; MPG - 8; Radius of Action - 124 miles
Dimensions	Length - 22 ft 0 in (internal - 11 ft 0 in); Width - 7 ft 5 in (internal - 6 ft 9 in); Height - 9 ft 6 in (internal - 5 ft 8 in); WB (Front to middle axle) - 11 ft 11½ in; BC - 3 ft 6-1/8 in; G/C - 9 in (rear axle); TC - 60 ft 9 in; Track - 5 ft 7 in (front), 5 ft 2½ in (rear)
Weights	Unladen - 4 tons 4½ cwt; Laden - 4 tons 14½ cwt. Standing tonnage - 39.18 tons
Body	Body - Fitted with Carter's "Portland" Type 826 or Southern "Easylift", two tier stretcher elevating gears which can be stored when sitting case are being conveyed. Wash basin with 2¼ gallon water storage tank and accommodation is also provided for two medical boxes and a "Thomas" splint carrier. Air conditioning is carried out with the aid of a Clayton Dewandre heater and ventilators in the roof. Four interior lamps, enclosed electric gong and searchlight. Two windows on each side of body and one in each rear door made of Purdah blue laminated or toughened safety glass. Cab - Enclosed steel panelled cab, seats for driver and one passenger with speaking tube to body.
Suspension	Front and rear - Special ambulance 12-leaf springs.
Brakes	Foot and hand , Cable operated, self energising internal brakes shoes on all wheels.
Wheels/Tyres	Disc 2-piece or divided/9.00-16 singles on all wheels.
Notes	Steering - worm and sector type. Also shown in AP2782A, Section 4.

Ambulance, Heavy, Ford, 3 ton, 6x4 Crown Copyright^©
Manufacturer	Ford (Canada)
RAF Ref No	Unknown
Engine	Ford Mercury petrol V8. Bore: 3.19 in (80.9 mm), Stroke: 3.75 in (95.25 mm), Capacity: 3.91 litres (239 cu in), RAC rating - 32.5 hp. Max BHP - 95 at 3,600 rpm; Max torque - 2,136 lbs/ins at 1,850 rpm.
Transmission	Clutch - Semi-centrifugal single dry plate, 11 in dia. Gearbox - 4 speed and 1 reverse. Ratios: 1st - 6.4 to 1, 2nd - 3.1 to 1, 3rd - 1.69 to 1, 4th - 1 to 1, reverse - 7.82 to 1: Transfer case - 2-speed, helical gear drive. Power take off incorporated for driving auxiliary equipment which may be mounted on this chassis. Ratios - 1 to 1 and 1.87 to 1. Front wheel drive can be disengaged in high gear. Front and Rear axle - Full floating, spiral bevel drive, ratios 7.16 to 1: Overall ratios (High) - 46.0 to 1, 22.2 to 12.1 to 1, 7.16 to 1, reverse - 56.3 to 1 Overall ratios (Low) - 86.1 to 1, 41.6 to 22.7 to 1, 13.4 to 1, reverse - 105.2 to 1
Performance	Max Speed - not stated; MPG - 7½-8; Radius of Action - 190 miles
Dimensions	Length - 19 ft 3¼ in; Width - 7 ft 6¼ in; Height - 9 ft 1½ in; WB - 13 ft 2¼ in; G/C - 11¼ in (rear axle); TC - 66 ft; Track - 5 ft 10½ in (front), 5 ft 9 (rear)
Weights	Unladen - not stated; Laden - 5 tons 8 cwt.
Body	Body - Lindsay House type (Van type). Four stretchers, two each side. Lower stretchers are on lockers, upper on elevating gear. Upper stretchers can be lowered to form seats for sitting patients. Communication bellows between cab and body. Fitted with attendant's seat ands water tank. Air conditioning by means of fan and Stewart Warner petrol heater in body. Cab - Canadian Military Pattern Model 13 cab, seating two. Enclosed steel panelled with detachable top. Reverse slope windscreen in two sections.
Suspension	Semi-elliptical special ambulance springs with hydraulic shock absorbers.
Brakes	Foot, hydraulic vacuum servo assisted on all wheels. Hand brake - mechanical on propeller shaft in rear of transfer box.
Wheels/Tyres	WD Divided type/10.50-16
Notes	Steering - Right hand drive, worm and roller. Electrical equipment - 6V. Also shown in AP2782A, Section 4

Ambulance, Light, Standard 12 hp, 4x2
Manufacturer	Standard
RAF Ref No	Unknown
Engine	Standard, 4 cyl, petrol. Bore: 69.5 mm (2.74 in), Stroke: 106 mm (4.17 in), Capacity: 1.609 litres (98.192 cu in). RAC rating - 11.98 hp. Max BHP - 44 at 4,000 rpm.
Transmission	Clutch - Borg and Beck, Single dry plate. Gearbox - 4 speed and reverse. Ratios - 1st - 3.95 to 1, 2nd - 2.43 to 1, 3rd - 1.45 to 1, 4th - 1 to 1, Reverse - 3.95 to 1. Front axle - 'H' Section Rear axle - Semi-floating, spiral bevel, ratio 4.86 to 1 Overall ratios - 19.18 to 1, 11.8 to 1, 7.06 to 1, 4th - 4.86 to 1, Reverse - 19.18 to 1:
Performance	Max Speed - not stated; MPG - 16; Radius of Action - 160 miles
Dimensions	Length - 15 ft 2¼ in (internal - 7 ft 7-5/8 in); Width - 5 ft 10 in (internal - 5 ft 5¾ in); Height - 7 ft 3 in (internal - 4 ft 8 in); WB - 8 ft 4 in; G/C - 8 in; TC - 40 ft 0 in; Track - 4 ft 0-3/8 in (front), 4 ft 3 in (rear):
Weights	Unladen - 1 ton 8 cwt; Laden - 1 ton 18 cwt: Standing tonnage - 13.25 tons.
Body	Body - Board sided truck type with rigid canvas canopy. The body is built up on hardwood runners reinforced with steel plates. Double curtain of canvas closes up rear of body and is fastened down with quick release buckles. Full width tailboard to assist in loading. Four stretchers are carried on steel channels which may be housed in steel clips when not in use. An extractor type ventilator is fitted in the roof. Cab - Steel panelled to seat driver and one passenger. Spare wheel carried on top of cab. Sliding panel in partition for communication and reversing purpose.
Suspension	Semi elliptical, front and rear.
Brakes	Mechanical foot and hand brakes on all wheels.
Wheels/Tyres	Dunlop pierced disc 3.50 x 16/Dunlop 6.00-16 singles
Notes	Steering - Marles cam and roller. Also shown in AP2782A, Section 4.

Coach, 24 seater, Dodge VK62, 4x2
Manufacturer	Dodge (US)
RAF Ref No	Unknown
Engine	Dodge, 6 cyl, petrol. Bore: 3¾ in, Stroke: 5 in, Capacity: 3.74 litres. Max BHP - 91 at 2,800 rpm; Max torque - 2,880 lbs/ins at 800 rpm. Compression ration - 5.85 to 1. RAC Rating - 33.7 hp.
Transmission	Clutch - Single dry plate, 13 in dia. Gearbox - 5 speed and 1 reverse. Ratios: 1st - 6.4 to 1, 2nd - 3.1 to 1, 3rd - 2.4 to 1, 4th - 1 to 1, reverse - not stated: Front axle - Reverse Elliott 'I' beam Rear axle - Full-floating Hypoid 7.166 to 1 Overall ratios - 56.1 to 1, 32.4 to 1, 17.7 to 1, 10.9 to 1, 7.4 to 1, Reverse - 45.1 to 1.
Performance	Max Speed - not stated; MPG - not stated; Radius of Action - not stated
Dimensions	Length - 26 ft 0 in (internal - 15 ft 6 in); Width - 7 ft 9 in (internal - 7 ft 1 in); Height - 9 ft 3 in (internal - 6 ft 3 in; WB - 15 ft 8 in; G/C - 9¾ (rear axle); TC - 68 ft; Track - 5 ft 9 in (front), 5 ft 10½ (rear)
Weights	Unladen - 4 tons 12 cwt; Laden - 6 tons 8 cwt.
Body	Body - Composite construction, metal panels outside, hardboard panels inside, wooden floor, 10 in wheel arches, 2 sliding windows each side of body, 2 fixed windows at front. Full opening double doors at rear with two fixed windows. Emergency exit each side of body between windows. Seating for 23 persons in body and one in cab. Light luggage lockers along interior at cantrail. 6-Volt internal lighting. Windows fitted black-out. Spare wheel under rear of chassis with access flap in body skirting panel. Speaking tube to cab. Cab - Enclosed steel-panelled cab, seating driver and one passenger.
Suspension	Semi-elliptical front and rear, with helper springs at rear
Brakes	Foot, hydraulic vacuum servo assisted on all wheels. Hand brake - mechanical on transmission.
Wheels/Tyres	Steel disc wheels 6.00-20/9.00-20
Notes	Steering - Left hand drive, worm and sector. Electrical equipment - 6V.

Coach, 24 seater, Ford WOT 1, 6x4 Crown Copyright^©
Manufacturer	Ford
RAF Ref No	Possibly 16A/505
Engine	Ford, petrol V8. Bore: 77.79 mm (3.0625 in), Stroke: 95.25 mm (3.75 in), Capacity: 3.62 litres (221 cu in), RAC rating - 30.01 hp. Max BHP - 60 at 2,840 rpm; Max torque - 1,800 lbs/ins at 2,000 rpm.
Transmission	Clutch - Single dry plate, 11-1/8 in dia. Gearbox - 4 speed and 1 reverse. Ratios: 1st - 6.4 to 1, 2nd - 3.1 to 1, 3rd - 1.69 to 1, 4th - 1 to 1, reverse - 7.82 to 1: Front axle - 'H' Section Rear axle - Full floating, spiral bevel drive, ratios 6.67 to 1. Overall ratios - 42.68 to 1, 20.6 to 11.27 to 1, 6.67 to 1, reverse - 52.16 to 1
Performance	Max Speed - not stated; MPG - 8; Radius of Action - 125 miles
Dimensions	Length - 24 ft 0 in (internal - 15 ft 0 in); Width - 7 ft 4 in (internal - 7 ft 0 in); Height - 9 ft 3 in (internal - 6 ft 3 in); WB - 13 ft 8½ in; G/C - 9 in (centre axle); TC - 59 ft ; Track - 5 ft 9 in (front), 5 ft 5 in (rear)
Weights	Unladen - not stated; Laden - 5 tons 19 cwt.
Body	Body - Composite construction, metal panels outside, hardboard panels inside, wooden floor, 10 in wheel arches, 2 sliding windows each side of body, 2 fixed windows at front. Full opening double doors at rear with two fixed windows. Emergency exit each side of body between windows. Seating for 23 persons in body and one in cab. Light luggage lockers along interior at cantrail. 6-Volt internal lighting. Windows fitted black-out. Spare wheel under rear of chassis with access flap in body skirting panel. Speaking tube to cab. Cab - Enclosed steel-panelled cab, seating driver and one passenger.
Suspension	Front - Semi-elliptical , Rear - Inverted semi-elliptical trunnion mounted at centre
Brakes	Foot, mechanical on all wheels. Hand brake - mechanical on all wheels.
Wheels/Tyres	Divided type or 3-piece/10.50-16 singles on all wheels.
Notes	Steering - worm and sector. Electrical equipment - 6V, negative earth return system. Also shown in AP2782A, Section 8.

Coach, 24 seater, Austin K6, 6x4
Manufacturer	Austin
RAF Ref No	Possibly 16A/644 (Vehicle); 16A/661 (Chassis); 16A/936 (Body)
Engine	Austin, 6 cyl, petrol, OHV. Bore: 87.31 mm (3.437 in), Stroke: 111.12 mm (4.375 in), Capacity: 3.995 litres (243.8 cu in). Max BHP - 82 at 2,900 rpm; Max torque - 2,065 lbs/ins at 1,400 rpm. RAC Rating - 28.37 hp
Transmission	Clutch - Borg and Beck single dry plate Gearbox - 4 speed and 1 reverse. Ratios: 1st - 6.58 to 1, 2nd - 3.48 to 1, 3rd - 1.71 to 1, 4th - 1 to 1, reverse - 6.57 to 1: Auxiliary Box - 2 speed. Ratios - 1 to 1 (High) and 1.87 to 1 (Low). Front axle - 'I' beam type. Rear axle - Overhead worm drive, ratio - 7.75 to 1. Overall ratios (High) - 51.0 to 1, 27.0 to 1, 13.26 to 1, 7.75 to 1, Reverse - 51.0 to 1. Overall ratios (Low) - 95.6 to 1, 50.6 to 1, 24.8 to 1,14.5 to 1, Reverse - 95.7 to 1.
Performance	Max Speed - not stated; MPG - 7; Radius of Action - 210 miles
Dimensions	Length - 22 ft 9¼ in (internal - 15 ft 6 in); Width - 7 ft 3 in (internal - 7 ft 1 in); Height - 9 ft 6 in (internal - 6 ft 3 in); WB - 12 ft 9 in; BC - 4 ft 0 in; G/C - 9½ in (rear bogie); TC - 57 ft 5 in (Right), 56 ft 8 in (left); Track - 5 ft 8-1/8 in (front & rear).
Weights	Unladen - not stated; Laden - not stated
Body	Body - Composite construction, metal panels outside, hardboard panels inside, wooden floor, 10 in wheel arches, 2 sliding windows each side of body, 2 fixed windows at front. Full opening double doors at rear with two fixed windows. Emergency exit each side of body between windows. Seating for 23 persons in body and one in cab. Light luggage lockers along interior at cantrail. 12-Volt internal lighting. Windows fitted black-out. Spare wheel under rear of chassis with access flap in body skirting panel. Speaking tube to cab. Cab - All steel construction, bucket seats for driver and one passenger. Driver's seat adjustable - three positions.
Suspension	Front - semi elliptical. Rear - inverted semi-elliptical spring pivoted at centre.
Brakes	Foot, Hydraulic servo assisted on all wheels. Hand brake - mechanical on rear wheels.
Wheels/Tyres	6.00x20 3-piece or Dunlop two piece wheels/9.00-20 or 10.50-20
Notes	Steering - 'Bishop' Cam and roller, model 'DQ'. Also shown in AP2782A, Section 8.

Crane, 2 ton mobile, petrol electric, Coles Mk II
Manufacturer	Coles
RAF Ref No	Unknown
Engine	4 cyl, petrol. Bore: 99 mm (3.875 in), Stroke: 108 mm (4.25 in), Capacity: 3.2586 litres (200.5 cu in). Max BHP - not stated; Max torque - not stated. RAC Rating - 24 hp
Steering	Cole's patent automatic reversing gear, allowing normal steering control from the superstructure irrespective of the position of the jib in relation to the position of the chassis or whether the driving axle id leading or trailing. Provision is made in the drag-link coupling for operating the steering direct from the tow-bar when the crane is being towed by a road vehicle.
Suspension	Front and rear - semi elliptical spring. Provision is made for locking the springs of the driving axle when the crane is performing its normal duties.
Brakes	Foot, Bendix hydraulic assisted by Lockheed-Gates booster, two leading shoe type on all wheels. Hand brake - mechanical on two driving wheels. Trailer connection - Single line vacuum system.
Dimensions	Tail Radius - 4 ft 6 in. With jib horizontal : Length - 19 ft 10 in; Width - 7 ft 6 in; Height - 10 ft 6 in; WB - 6 ft 6 in; G/C - not stated; TC - 57 ft 5 in (Right), 56 ft 8 in (left); Track - 5 ft 3 in.
Wheels/Tyres	Pressed steel disc with 7.33 in flat base rims, 8 stud fixing/10.50-20 pneumatic
Electrical Equipment	Main Generator - Variable voltage 0/230 Volt, shunt wound, totally enclosed, weatherproof. Hoist and derrick motor - 6 hp, 900 rpm, series wound, totally enclosed Slewing motor - 1 hp, 500 rpm, series wound, totally enclosed Travel motor - 28 hp, 1220 rpm, series wound, totally enclosed. Automatic electro-magnetic brakes are fitted in the hoisting and slewing systems. A semi-automatic brake , interlocked with the derrick control hand lever is fitted to the derrick stirrup shaft. Lighting equipment - 6V NIFE Battery.
Lifting data	2 tons at 7 ft 9 in radiius 1¼ tons at 12 ft 3 in radius
Weights	Gross - 7 tons 0 cwt.
Notes	Also shown in AP2782A, Section 9.

Crane, Salvage, 3 ton, petrol electric, Leyland, 6x4 Crown Copyright^©
Manufacturer	Leyland
RAF Ref No	Possibly 16A/506
Engine	Leyland,4 cyl, petrol. Bore: 115.9 mm (4.5625 in), Stroke: 139.7 mm (5.5 in), Capacity: 5.90 litres (359.7 cu in), Max BHP - 73 at 2,120 rpm (governed at 2,150 rpm); Max torque - 3,120 lbs/ins at 1,150 rpm. RAC Rating - 33.3 hp.
Transmission	Clutch - Single dry plate. Gearbox - 4 speed and 1 reverse. Ratios: 1st - 4.78 to 1, 2nd - 3.0 to 1, 3rd - 1.74 to 1, 4th - 1 to 1, reverse - 5.57 to 1: Auxiliary gearbox- Ratios - 1.1 to 1 and 2.22 to 1. Front axle - 'H' Section Rear axle - Full floating, overhead worm drive, ratios 7.5 to 1. Overall ratios (High) - 35.85 to 1, 22.5 to 13.05 to 1, 7.5 to 1, reverse - 41.78 to 1 Overall ratios (Low)- 79.6 to 1, 49.96 to 28.97 to 1, 16.65 to 1, reverse - 92.76 to 1
Performance	Max Speed -not stated; MPG - 6; Radius of Action - 186 miles
Dimensions	(Jib horizontal) Length - 26 ft 0 in; Width - 7 ft 0 in; Height - 13 ft 6 in WB - 13 ft 0 in; BC - 4 ft 0 in; G/C - 11½ in (rear axle), 17½ (belly); TC - 55 ft; Track - 5 ft 11½ in (front), 5 ft 7¾ in (rear) Tail radius - 5 ft 3 in.
Weights	Unladen - 9 tons 11 cwt; Laden - not stated.
Suspension	Front - Semi-elliptical , Rear - Inverted semi-elliptical pivoted at centre with spring locks.
Brakes	Foot, hydraulic servo assisted on all wheels. Hand brake - mechanical on four rear wheels. Trailer brake connection - Single line vacuum (not fitted to all)
Tyres	9.00-20 on all wheels.
Equipment	Coles, Mark VII, Series 5 crane, the hoist, derrick and slewing motors of which obtain their power from a variable voltage, direct current generator driven from the power take off unit on the vehicle gearbox. Automatic electro-magnetic brakes are fitted in the hoisting and slewing motions Hoist and derrick motor - 6 hp, 900 rpm, series wound, totally enclosed Slewing motor - 1 hp, 500 rpm, series wound, totally enclosed. Cab - Open with folding canopy, seating two. Later versions - all enclosed with folding top.
Safe working loads	3½ tons at 7 ft 0 in radius 2 tons at 12 ft radius 1 tons at 19 ft 3 in radius Maximum height of lift - 24 ft 6 in.
Notes	Steering - Marles type Also shown in AP2782A, Section 9.

5-ton, petrol electric, Crane, (Coles) on Thornycroft WF/AC6 (Amazon), 6x4, chassis Crown Copyright^©
Manufacturer	Thornycroft
RAF Ref No	Possibly 16A/507
Engine	Thornycroft AC6/2, 6-cyl, petrol with coil ignition. Bore: 111 mm (4.375 in), Stroke: 133.4 mm (5.25 in), Capacity: 7.759 litres (473.5 cu in), RAC rating - 45.9 hp. Max BHP - 100; Max torque - 3,660 lbs/ins at 1,000 rpm.
Transmission	Clutch - single dry plate. Gearbox (Main) - 4 speed and 1 reverse. Ratios: 1st - 5.13 to 1, 2nd - 2.75 to 1, 3rd - 1.56 to 1, 4th - 1 to 1, reverse - 7.69 to 1: Gearbox (Auxiliary) - 2-speed. Four-wheel drive on low ratio. Ratios - (High) 1 to 1 and (Low) 2.5 to 1 Front Axle - 'I' Section. Rear axle - Full floating, overhead worm drive, ratio 7.66 to 1. Overall ratios (High) - 39.29 to 1, 21.06 to 11.95 to 1, 7.66 to 1, reverse - 58.89 to 1 Overall ratios (Low) - 98.22 to 1, 52.64 to 29.86 to 1, 19.14 to 1, reverse - 147.2 to 1
Performance	Max Speed - not stated; MPG - not stated; Radius of Action - not stated
Dimensions	(Jib horizontal): Length - 30 ft 0 in; Width - 7 ft 0 in; Height - 14 ft 0 in. WB - 11 ft 9 in; BC - 4 ft 6 in; G/C - not stated; TC - 56 ft; Track - 6 ft 6 in (front), 6 ft 4¾ (rear) Tail radius - 6 ft
Weights	Unladen - 12 tons 12½ cwt; Laden - not stated.
Suspension	Front - Semi-elliptical. Rear - Thornycroft patent rigid beam suspension.
Brakes	Foot - mechanical servo assisted on all wheels. Hand brake - mechanical on rear wheels. Trailer brake connection - Single line vacuum.
Wheels/Tyres	Split disc/Front - 12.75-20, Rear - 13.50-20
Equipment	Coles, Mark VII, Series 5 crane, the hoist, derrick and slewing motors of which obtain their power from a variable voltage, direct current generator driven from the power take off unit on the vehicle gearbox. Automatic electro-magnetic brakes are fitted in the hoisting and slewing motions Hoist and derrick motor - 6 hp, 900 rpm, series wound, totally enclosed Slewing motor - 1 hp, 500 rpm, series wound, totally enclosed. Fitted with RAF drawbar gear. Cab - Open with folding canopy, seating two. Later versions - all enclosed with folding top.
Safe working loads	5 tons at 7 ft 6 in radius 3 tons at 13 ft radius 2 tons at 16 ft radius 1½ tons at 19 ft 3 in radius Maximum height of lift - 28 ft.
Notes	Steering - Cam and roller. Also shown in AP2782A, Section 11

Lorain, Moto-Crane, Model MC3 Crown Copyright^©
Manufacturer	Lorain (Thew Shovel Co)
RAF Ref No	Possibly 16A/1008
General	This vehicle is not supplied by TT2 but as it is widely use as an aircraft recovery vehicle the following brief details are included here.
Engine	Waukesha type MZR, 6 cyl, petrol. Bore: 4¼ in, Stroke: 4¾ in, Capacity: 6.6 litres; Max BHP - 96 at 2,400 rpm (governed).
Transmission	Clutch - Single plate, 14 in dia. Gearbox - 5 speed and 1 reverse. Auxiliary gearbox - 2 speed. Rear axle - Timken overhead worm drive, ratio 4.31 to 1:
Performance	Max Speed - not stated; MPG - not stated; Radius of Action - not stated
Dimensions	(Crane in travelling position): Length - 41 ft; Width - 8 ft; Height - 12 ft. (Overall less crane): Length - 23 ft 11 in. WB - not stated; G/C - not stated; TC - not stated; Track - not stated
Equipment	The six wheeler chassis (6x4 drive) has been specially designed for crane work and is equipped with outriggers for supporting the load when lifting. The one-man forward control type driver's cab occupies less than half the width of the vehicle. The space to the right of the cab (it is a left hand drive vehicle) is clear so that the crane boom can be lowered for the travelling position. In this position the crane boom extends approximately 16 ft beyond the front of the vehicle. The crane has a 30 ft boom and is mounted on fully revolving turntable. The crane is powered by a separate engine:- Waukesha, 6 cyl, petrol. Bore: 4¼ in, Stroke: 4¾ in,
Safe working loads	not stated
Weights	Approximately - 18¾ tons
Suspension	not stated
Brakes	not stated
Tyres	10.00-20 single on front and dual on rear
Notes	Electrical equipment - 6V. Also shown in AP2782A, Section 14.

Tender, Fire Crash, 1½-ton, Chevrolet, 4x4
Manufacturer	Chevrolet (US)
RAF Ref No	Unknown
Engine	Chevrolet AY, 6 cyl, OHV, petrol. Bore: 3-9/16 in, Stroke: 3-15/16 in, Capacity: 3.8 litres (235.5 cu in), Max BHP - 83.5 at 3,000 rpm; Max torque - 2,304 lbs/ins.
Transmission	Clutch - Single dry plate 10¾ in dia. Gearbox - 4 speed and 1 reverse. Transfer case - Ratios - (High) Direct (1 to 1) and (Low) 1.94 to 1. Front & Rear axle - Full floating, hypoid drive, ratio - 6.67 to 1: Overall ratios (High) - 47.1 to 1, 23.3 to 1, 11.4 to 1, 6.67 to 1, Reverse - 46.5 to 1.
Performance	Max Speed - not stated; MPG - not stated; Radius of Action - not stated
Dimensions	WB 12 ft 1 in; No other dimensions given.
Weights	Unladen - not stated; Laden - not stated:
Equipment	Equipment carried: - 1 x Tank, foam, 250 gallons PL 4 x Cylinders CO₂, 50 lbs capacity. 1 x Pump booster 100 gallons 2 x Extinguishers CO₂, P & T 15 lbs 2 x Extinguishers, Carbon tetrachloride 1 gallon 1 x Hose Reel complete with 1 length of ½ in Chemical hose with gas horn nozzle for CO₂. 2 x Lengths Hose 1½ in, 100 ft long with foam nozzle for foam system. 80 gallons - Liquid foam solution.
Suspension	Semi elliptical, front and rear with auxiliary rear. Hydraulic shock absorbers all round.
Brakes	Foot - hydraulic vacuum servo assisted on all wheels. Hand - mechanical on transmission.
Wheels/Tyres	WD Divided type 20x7 (5.00-20)/7.50-20, 8-ply, dual rear.
Notes	Steering - Left hand drive, Recirculating ball and sector. Electrical equipment - 6V.

Tender, Fire Crash, Crossley, 3 ton, 4x4,
Manufacturer	Crossley
RAF Ref No	Unknown
Engine	Crossley, 4 cyl, petrol, OHV. Bore: 110mm (4.31 in), Stroke: 140 mm (5.5 in), Capacity: 5.266 litres (321.35 cu in). Max BHP - 90 at 2,500 rpm, (governed to 2,500); Max torque - 2,770 lbs/ins at 1,500 rpm. RAC Rating - 29.8 hp
Transmission	Gearbox (Main) - 4 speed and 1 reverse. Ratios: 1st - 5.34 to 1, 2nd - 2.985 to 1, 3rd - 1.71 to 1, 4th - 1 to 1, reverse - 4.7 to 1: Auxiliary Box - 2 speed with power take off. Ratios - 1 to 1 (High) and 2.15 to 1 (Low). Front axle - Overhead worm gear, 7.75 to 1. Torque transmission to hubs through constant velocity joints. Rear axle - Overhead worm gear, 7.75 to 1. Full-floating hubs. Overall ratios (High) - 41.38 to 1, 23.13 to 1, 13.25 to 1, 7.75 to 1, Reverse - 36.42 to 1. Overall ratios (Low) - 88.96 to 1, 49.73 to 1, 28.49 to 1, 16.66 to 1, Reverse - 78.3 to 1.
Suspension	Semi elliptical, front and rear
Performance	Max Speed - not stated; MPG - 7; Radius of Action - 180 miles
Dimensions	Length - 20 ft 0 in; Width - 7 ft 6 in; Height - 7 ft 9 in; WB - 11 ft 6 in; G/C - 1 ft 2 in (laden); TC - 55 ft 0 in; Track - 6 ft 2¾ in (front), 5 ft 10-5/8 in (rear)
Weights	Unladen - not stated; Laden - 7 tons 13 cwt.
Equipment	Cab - Open type with folding canopy, seats driver and one passenger. A combined 300 gallon water and 25 gallon compound tank connected to Ellehammer foam making pump. The foam pump, which is mounted at the rear and driven by a power take-off is capable of pumping 1,000 gallons per minute. The pump supplies four 65 ft lengths of hose, each terminating in a spreader nozzle. Four 60 lb CO₂ gas cylinders are carried on the tank, together with two 60 ft lengths of high pressure delivery hose. A heating compartment is fitted over the tank.
Brakes	Foot, hydraulic vacuum servo assisted on all wheels. Hand brake - mechanical (cable operated) on all wheels. Trailer brake connections - Single line vacuum.
Wheels/Tyres	8.37-20 two-piece/12.00-20 low pressure
Notes	Steering - Cam and lever. Also shown in AP2782A, Section 10.

Tender, Fire Crash, Crossley IGL 3, 3 ton, 6x4,

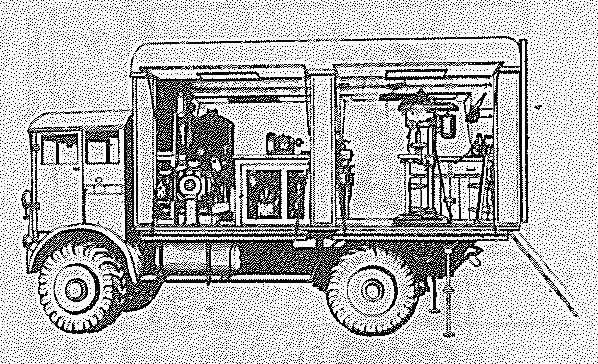

Manufacturer	Crossley
RAF Ref No	Unknown
Engine	Crossley, 4 cyl, petrol, OHV. Bore: 110mm (4.31 in), Stroke: 140 mm (5.5 in), Capacity: 5.266 litres (321.35 cu in). Max BHP - 90 at 2,500 rpm, (governed to 2,500); Max torque - 2,770 lbs/ins at 1,500 rpm. RAC Rating - 29.8 hp
Transmission	Clutch - Single dry plate Gearbox - 4 speed and 1 reverse. Ratios: 1st - 5.35 to 1, 2nd - 2.99 to 1, 3rd - 1.7 to 1, 4th - 1 to 1, reverse - 4.69 to 1: Auxiliary Box - 2 speed. Ratios - 1 to 1 (High) and 3.18 to 1 (Low). Front axle - 'H' section beam. Rear axle - ¾-floating, overhead worm drive, ratio - 7.25 to 1. Overall ratios (High) - 38.8 to 1, 21.7 to 1, 12.4 to 1, 7.25 to 1, Reverse - 34.0 to 1. Overall ratios (Low) - 123.1 to 4, 69.01 to 1, 39.43 to 1, 23.05 to 1, Reverse - 108.1 to 1.
Performance	Max Speed - not stated; MPG - not stated; Radius of Action - not stated
Dimensions	No overall dimensions given. WB - 12 ft 6 in; BC - 4 ft 0 in; G/C - 1 ft 2 in; TC - 58 ft; Track - 6 ft 2 in (front), 5 ft 11 in (rear).
Weights	Unladen - 4 tons 16 cwt; Laden - 8 tons 9½ cwt. Shipping tonnage - 41.78 tons.
Suspension	Front - semi elliptical with Gruss air springs. Rear - dual inverted semi-elliptical spring pivoted at centre.
Equipment	Cab - Open type with folding canopy, seats driver and one passenger. A combined 300 gallon water and 25 gallon compound tank connected to Ellehammer foam making pump. The foam pump, which is mounted at the rear and driven by a power take-off is capable of pumping 1,000 gallons per minute. The pump supplies four 65 ft lengths of hose, each terminating in a spreader nozzle. Four 60 lb CO₂ gas cylinders are carried on the tank, together with two 60 ft lengths of high pressure delivery hose. A heating compartment is fitted over the tank.
Brakes	Foot - Mechaical servo assisted on forward rear wheels. Hand brake - mechanical on rear wheels.
Wheels/Tyres	Split disc wheels/10.50-20
Notes	Steering - Cam and lever. Also shown in AP2782A, Section 10.

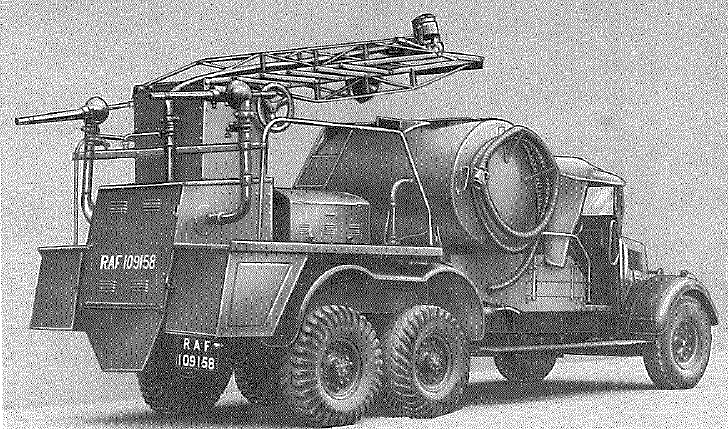

Tender, Fire Crash, Ford WOT 1, 6x4 Crown Copyright^©
Manufacturer	Ford
RAF Ref No	Possibly 16A/535
Engine	Ford, petrol V8. Bore: 77.79 mm (3.0625 in), Stroke: 95.25 mm (3.75 in), Capacity: 3.62 litres (221 cu in), RAC rating - 30.01 hp. Max BHP - 60 at 2,840 rpm; Max torque - 1,800 lbs/ins at 2,000 rpm.
Transmission	Clutch - Single dry plate Gearbox - 4 speed and 1 reverse. Ratios: 1st - 6.4 to 1, 2nd - 3.1 to 1, 3rd - 1.69 to 1, 4th - 1 to 1, reverse - 7.82 to 1: Front axle - 'H' Section. Rear axle - Full floating, spiral bevel drive, ratios 6.67 to 1. Overall ratios - 42.68 to 1, 20.6 to 11.27 to 1, 6.67 to 1, reverse - 52.16 to 1
Performance	Max Speed - not stated; MPG - 8; Radius of Action - 125 miles
Dimensions	Length - 21 ft 6 in; Width - 7 ft 4 in; Height - 10 ft 0 in; WB - 13 ft 8½ in; BC - 3 ft 6¼ in; G/C - 9½ in (rear axle); TC - 59 ft; Track - 5 ft 9 in (front), 5 ft 5 in (rear)
Weights	Laden - 6 tons 7 cwt.
Body	Body - Equipment mounted on sub-frame. Cab - Open type with folding canopy, seats for driver and one passenger. Equipment - Compartmented tank for 300 gallons of water and 100 gallons of foam compound. Centrifugal foam pump driven by a Ford V-8, 30 hp engine. Three monitor type branch pipes and a manually operated elevating ladder. A 20 ft length of 3 in diameter suction hose. Foam compound and water is piped to the foam pump which is fitted at the rear of the chassis. The pump engine is mounted amidships. The foam pump delivery connects with the three monitors, one of which is mounted at the top of the elevating ladder. Capacity of pump engine fuel tank - 4½ gallons. Other equipment includes - microphone and loudspeaker, two lockers at rear of the chassis for the stowage of hose, immersion heaters in the prime mover and pump engine radiator, fire bell, searchlight and fog lamp. The running boards are extended at each side to carry a crew of five men.
Suspension	Front - Semi-elliptical , Rear - Inverted semi-elliptical trunnion mounted at centre
Brakes	Foot, mechanical on all wheels. Hand brake - mechanical on all wheels.
Wheels/Tyres	9.00-16 or 10.50-16 singles on all wheels.
Notes	Steering - Worm and sector. Electrical equipment - 6V.

Tender Fire Crash, Federal, 10 ton, 925 gallon, Fire-fighting unit, Model 89K-145-167
Manufacturer	Federal (US)
RAF Ref No	Unknown
Engine	Hercules JXD, 6-cyl. petrol, Bore: 101.6 mm (4 in), Stroke: 107.9 mm (4.25 in), Capacity: 5.243 litres (320 cu in). Max BHP - 95 at 2,800 rpm: Max torque - 2,928 lbs/ins at 800 rpm.
Transmission	Clutch - Borg and Beck, single dry plate. Gearbox - 5 speed and 1 reverse. Ratios: 1st - 7.58 to 1, 2nd - 4.38 to 1, 3rd - 2.4 to 1, 4th - 1.48 to 1, 5th - 1 to 1, reverse - 7.51 to 1: Transfer Box - 2-speed, ratios 1.155 to 1 and 2.602 to 1. Front axle can be disengaged. Rear axle - Fully floating, spiral bevel drive, ratio 7.4 to 1.
Performance	Max Speed - not stated; MPG - 8; Radius of Action -250 miles.
Dimensions	Length - 20 ft 4 in; Width - 7 ft 11½ in; Height - 7 ft 3¾ in; WB - 12 ft 1 in; G/C - 9-1/8 in; TC - not stated; Track - 5 ft 10 in (front), 5 ft 9½ in (rear):
Weights	Unladen - 4 tons 9 cwt, Laden - 8 tons 12 cwt.
Body	Cab - Six-man cab. Extension to back of normal cab provides this extra seating Equipment - 925 gallon (770 Imperial gallons) water tank. Pump - model Barton U40, capacity 400 gpm at 120 lbs (10 ft lift). Pump located front of chassis and driven by special PTO from crank shaft. Other equipment included four 8 ft lengths of 4 in suction hose, 500 ft of 2 in hose in 50 ft lengths and 26 ft extending ladder.
Suspension	Front - semi-elliptical with double acting hydraulic shock absorbers. Rear - inverted semi-elliptical, no shock absorbers, with radius rods between axles.
Brakes	Foot - hydraulic vacuum servo assisted on all wheels. Hand - mechanical on transmission.
Wheels/Tyres	Steel spoke 20.00-7/34.00-7 10-ply, dual rear.
Notes	Steering - Left hand drive. Worm and roller. Electrical equipment - 6V.

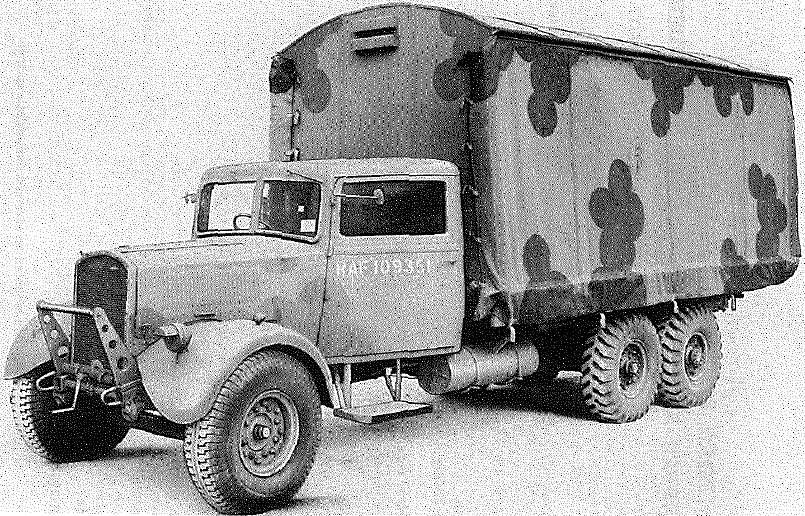

Tender, Photographic Type J, Ford, WOT 1, 6x4 Crown Copyright^©
Manufacturer	Ford
RAF Ref No	Possibly 16A/809
Engine	Ford, petrol V8. Bore: 77.79 mm (3.0625 in), Stroke: 95.25 mm (3.75 in), Capacity: 3.62 litres (221 cu in), RAC rating - 30.01 hp. Max BHP - 60 at 2,840 rpm; Max torque - 1,800 lbs/ins at 2,000 rpm.
Transmission	Clutch - Single dry plate Gearbox - 4 speed and 1 reverse. Ratios: 1st - 6.4 to 1, 2nd - 3.1 to 1, 3rd - 1.69 to 1, 4th - 1 to 1, reverse - 7.82 to 1: Front axle - 'H' Section. Rear axle - Full floating, spiral bevel drive, ratios 6.67 to 1. Overall ratios - 42.68 to 1, 20.6 to 11.27 to 1, 6.67 to 1, reverse - 52.16 to 1
Performance	Max Speed - not stated; MPG - 8; Radius of Action - 125 miles
Dimensions	Length - 23 ft 6 in (internal - 14 ft 7 in); Width - 7 ft 0 in (internal - 6 ft 8 in); Height - 11 ft 3 in (internal - 6 ft 6 in at centre, 5 ft at sides); WB - 14 ft 8 in; BC - 3 ft 6¼ in; G/C - 9 in (centre axle); TC - 59 ft; Track - 5 ft 9 in (front), 5 ft 6 in (rear)
Weights	Laden - 6 tons 14 cwt.
Body	Body - Van type, light section steel frame, double panelled with sheet metal, fully insulated. Body divided into two compartments by a partition incorporating a sliding door. Forward compartment is a Film room and the rear compartment is a Print room. Rear entrance door to body, detachable steps stowed under body; escape hatch forward on nearside. Ventilation flaps in sides of print room. Canvas awnings on frames, hinged on each side of body at roof level, erected on struts and enclosed by curtains and benches along the sides of the body provide additional working space 15 ft x 5 ft floor space on each side of the vehicle. When the tentage is dismantled, the awnings and benches fold against the sides of the body, the curtains are stowed in a bag and the struts are strapped along the sides of the body. Equipment - The film room is equipped on the nearside with a cupboard and light proof service hatch and on the offside with a stainless steel sing, chemical storage cupboard and a 10 gallon water storage tank over the sink. The print room is equipped on the nearside with a film drying drum and a film viewer; two small compartments under a bench at the aft end house water pumping equipment, a temperature control tank for water and an electric radiator for temperature control of air to the film drying drum and in the body. A bench along the offside houses a refrigeration plant. The bench carries a print-glazing machine and a stainless steel sink. A domestic type electric water heater is mounted over the bench. Lighting and power, 230V is provided from the 6.3 kVA generating trailer. Cab - All enclosed type, seating driver and one passenger. Hip ring over passenger' seat.
Suspension	Front - Semi-elliptical , Rear - Inverted semi-elliptical trunnion mounted at centre
Brakes	Foot, mechanical on all wheels. Hand brake - mechanical on all wheels.
Wheels/Tyres	Dived type or 3-piece/10.50-16 singles on all wheels.
Notes	Steering - Worm and sector.

Tender, Photographic Mk I, Film Processing, Bedford OXC-Carrimore, 4x2-2
Manufacturer	Bedford/Carrimore
Chassis	Tractor unit - Bedford OXC, details of which can be found in Group 3. Semi-trailer - Carrimore 8 ton straight frame trailer.
Body	Body - Timber framework, double panelled and insulated, wooden floor. Double glazed windows. Single door at rear. Wired for 230V AC lighting and power. Equipment - Water storage tanks, 170 gallons capacity. Water pumping and circulating equipment. Water temperature control for 30 gallons/hour. Air conditioning plant. Chemical tanks, sinks and circulating system. Film-processing machine. Body looked similar to that shown below on Tasker semi-trailer chassis.
Dimensions	Vehicle - Length - 33 ft 6 in; Width - 8 ft 0 in; Height - 13 ft 1 in. Trailer - Length - 26 ft 0 in; Width - 8 ft 0 in; Height - 13 ft 1 in.
Weights	Unladen - not stated; Laden - 9 tons 15¾ cwt:
Suspension	not stated
Tyres	32 x 6 twin rear tyres, later 10.50-20 singles
Brakes	not stated
Notes

Tender, Photographic Mk I, Film Multi-printing, Bedford OXC-Carrimore, 4x2-2
Manufacturer	Bedford/Carrimore
RAF Ref No	Unknown
Chassis	Tractor unit - Bedford OXC, details of which can be found in Group 3. Semi-trailer - Carrimore 8 ton straight frame trailer.
Body	Body - Timber framework, double panelled and insulated, wooden floor. Double glazed windows. Single door at rear. Wired for 230V AC lighting and power. Equipment - Water storage tanks, 170 gallons capacity. Water pumping and circulating equipment. Water temperature control for 30 gallons/hour. Air conditioning plant. Chemical tanks, sinks and circulating system. Film-printing machine. Body looked similar to that shown below on Tasker semi-trailer chassis.
Dimensions	Vehicle - Length - 33 ft 6 in; Width - 8 ft 0 in; Height - 13 ft 1 in. Trailer - Length - 26 ft 0 in; Width - 8 ft 0 in; Height - 13 ft 1 in.
Weights	Unladen - not stated; Laden - 9 tons 5 cwt:
Suspension	not stated
Tyres	32 x 6 twin rear tyres, later 10.50-20 singles
Brakes	not stated
Notes

Tender, Photographic Mk I, Office and Film Storage, Bedford OXC-Carrimore, 4x2-2
Manufacturer	Bedford/Carrimore
RAF Ref No	Unknown
Chassis	Tractor unit - Bedford OXC, details of which can be found in Group 3. Semi-trailer - Carrimore 8 ton straight frame trailer.
Body	Body - Timber framework, double panelled and insulated, wooden floor. Double glazed windows. Single door in nearside. Wired for 230V AC lighting and power. Equipment - Water storage tanks, 170 gallons capacity. Water pumping and circulating equipment. Special chemical mixing tanks and sinks. Electric water heater. Office furniture comprising steel cupboards and layout table. Titling and viewing benches, work bench and camera storage rack. Intercommunication telephone with film-processing and multi-printer bodies. Body looked similar to that shown below on Tasker semi-trailer chassis.
Dimensions	Vehicle - Length - 33 ft 6 in; Width - 8 ft 0 in; Height - 13 ft 1 in. Trailer - Length - 26 ft 0 in; Width - 8 ft 0 in; Height - 13 ft 1 in.
Weights	Unladen - not stated; Laden - 8 tons 8 cwt:
Suspension	not stated
Tyres	32 x 6 twin rear tyres, later 10.50-20 singles
Brakes	not stated
Notes

Tender, Photographic Mk II, Film Processing, Bedford OXC-Tasker, 4x2-2 Tender, Photographic Mk II, Film Multi-printing, Bedford OXC-Tasker, 4x2-2 Tender, Photographic Mk II, Office and Film Storage, Bedford OXC-Tasker, 4x2-2 Crown Copyright^©
Manufacturer	Bedford/Tasker
RAF Ref No	Unknown
Chassis	Tractor unit - Bedford OXC, details of which can be found in Group 3. Semi-trailer - Tasker, drop-frame articulated trailer chassis.
Notes	These vehicles three vehicles are generally similar to the Mk I models mounted on Carrimore semi-trailer chassis except for: - The bodies have a lower overall height due to being mounted on a Tasker drop-frame chassis Trailer tyres are 10.50-20 singles Operation of air conditioning, water cooling and water heating is manual (On Mk I model it was fully automatic by thermostat). Heater and cooler units are positioned at front of body instead of in the roof. Heater tank is carried in the vehicle but cold water tank is located below floor.
Dimensions	Vehicle - Length - 35 ft 0 in; Width - 8 ft 0 in; Height - 10 ft 5 in. Trailer - Length - 28 ft 0 in; Width - 8 ft 0 in; Height - 10 ft 5 in (internal - 6 ft 9 in, 7 ft 1 in less air duct).

Tender, Generator, Water Tank, Thornycroft Sturdy, 4x2
Manufacturer	Thornycroft
RAF Ref No	Unknown
Engine	Thornycroft TC4, 4-cyl, petrol. Bore: 3-7/8 in, Stroke: 5 in), Capacity: 3.6 litres; Max BHP - 60 at 2,400 rpm (governed); Max torque - 1,940 lbs/ins at 1,300 rpm.
Transmission	Clutch - single dry plate. Gearbox (Main) - 4 speed and 1 reverse. Gearbox (Auxiliary) - 2-speed. Ratios - (High) 1 to 1 and (Low) 1.5 to 1 Front Axle - 'I' Section.. Rear axle - Full floating, overhead worm drive, ratio 7.75 to 1. Overall ratios (High) - 49.6 to 1, 24.3 to 13.9 to 1, 7.75 to 1, reverse - 71.88 to 1
Performance	Max Speed - not stated; MPG - not stated; Radius of Action - not stated.
Dimensions	Length - 21 ft 8 in; Width - 6 ft 7 in; Height - 8 ft 6 in; WB - 13 ft 4 in; G/C - 11½ in (rear axle); TC - 55 ft; Track - 5 ft 7-7/8 in (front), 5 ft 6¾ (rear)
Weights	Unladen - not stated; Laden - 7 tons 9 cwt.
Equipment	23.5 kVA, 230V, AC Generator mounted in front of engine and directly coupled to the engine. Double compartment cab , rear compartment forming electrical control cabin. 500-gallon water tank mounted direct to chassis with pumping equipment driven by power take off from vehicle engine. Water filter and distribution pipe lines RAF drawbar gear.
Suspension	Semi-elliptical front and rear.
Brakes	Foot, hydraulic on all wheels. Hand brake - mechanical on all wheel. Trailer brake connection - Single line vacuum.
Wheels/Tyres	Pressed steel disc/9.00-20, single on front, dual on rear.
Notes	This vehicle is used in conjunction with Tender, Photographic Mk I and Mk II on articulate trailer chassis. Also shown in AP2782A, Section 11

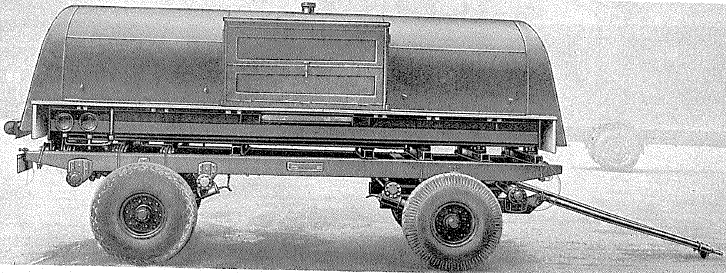

Trailer, 4-wheeled, petrol, 450-gallon on Brockhouse, Mk 1, 4 wheeled trailer chassis
Manufacturer	Brockhouse
RAF Ref No	not stated
Chassis details	See entry at top of this page
General Information	450-gallon tank with compartments at either end of tank. Forward compartment house Lister 3 hp petrol engine and Zwicky pump. Rear compartment for hoses. Rated maximum capacity of pump, 60 gpm through two nozzles.
Dimensions	Length (less tow-bar) - 15 ft 6¼ in; Width - 7 ft 6 in; Height - 6 ft 9 in;
Weights	Unladen - not stated; Laden - 4 tons 18 cwt:
Notes	Probably similar to 450 gallon Oil tanker shown below

Trailer, 4-wheeled, oil, 450-gallon on Brockhouse, Mk 1, 4 wheeled trailer chassis Crown Copyright^©
Manufacturer	Brockhouse
RAF Ref No	16A/569 (Vehicle); 16A/1116 (Chassis):
Chassis details	See entry at top of this page
Equipment	450-gallon elliptical section oil tank (Zwicky) mounted direct to chassis. Compartments at each end of tank shell to accommodate Lister 3 hp petrol engine in forward compartment and Zwicky pump and pumping equipment in the rear compartment. The petrol engine incorporates a centrifugal clutch and power transmission to the pumps is by a chain reduction gear and a transmission shaft beneath the tank. Filter, flowmeter and air separator fitted in pump compartment. Stowage boxes along side of tank to accommodate four 12 ft lengths of 1½ in bore oil delivery hose and one 12 ft length of 2 in bore suction hose. The pumping unit can be used for pumping oil from an outside supply to the carrier tank, from the carrier tank to a receiver tank or direct from an outside supply to a receiver tank. Delivery capacities at 70^o F, o, ne hose and nozzle - 12 gallons/min, two hoses and nozzles - 18 gallons/min
Dimensions	Length (less tow-bar) - 15 ft 6 in, 22 ft with tow-bar); Width - 7 ft 6 in; Height - 6 ft 9 in;
Weights	Unladen - 2 tons 18 cwt; Laden - 4 tons 18 cwt:
Notes

Tender, Petrol, 550 gallon, International K5, 4x2
Manufacturer	International (US)
RAF Ref No	Unknown
Engine	International GRD 233, 6-cyl, petrol. Bore: 3-5/16 in, Stroke: 4½ in, Capacity: 3.8 litres; Max BHP - 93 at 3,400 rpm; Max torque - 2,174 lbs/ins at 1,000 rpm.
Transmission	Gearbox (Main) - 4 speed and 1 reverse. Rear axle - Full floating, spiral drive, ratio 6.166 to 1.
Performance	Max Speed - not stated; MPG - not stated; Radius of Action - not stated.
Dimensions	Length - 21 ft 0 in; Width - 7 ft 3 in; Height - 7 ft 3 in.
Weights	Unladen - not stated; Laden - 5 tons 10 cwt.
Equipment	Heil Petrol tank, 550 Imperial gallons capacity, single compartment, equipped with pump operated from a PTO on gearbox, capacity 50 gpm. Delivery hose, filters and meters.
Suspension	Semi-elliptical front and rear with auxiliary rear.
Brakes	Foot, hydraulic vacuum servo assisted. Hand brake - mechanical on transmission.
Tyres	6.50-20, 8-ply, single on front, dual on rear.
Notes	Electrical equipment - 6V

Tender, petrol and oil , Refuelling, 500-gallon, Thompson, 3x2 Crown Copyright^©
Manufacturer	Thompson
RAF Ref No	16A/1100
Engine	Ford, Model E93A, 4 cyl, petrol. Bore: 63.5 mm (2.5 in), Stroke: 92.5 mm (3.64 in), Capacity: 1.172 litres (71.55 cu in). RAC Rating - 10 hp
Transmission	Clutch - Single dry plate Gearbox - 3 speed and 1 reverse with PTO. Ratios: 1st - 3.07 to 1, 2nd - 1.77 to 1, 3rd - 1 to 1, reverse - 4.01to 1, PTO - 1 to 1: Rear axle - Spiral bevel pinion and gear, the axle shafts are fitted with sprockets which are connected to the rear driving wheels by means of roller chain. Ratio 5.1 to 1: Overall ratios - 15.657 to 1, 9.027 to 1, 5.1 to 1, Reverse - 20.451 to 1.
Performance	Road Speeds - 1st - 15 mph, 2nd - 9 mph, 4.4 mph; MPG - not stated; Radius of Action - not stated.
Dimensions	Length - 17 ft 9 in; Width - 6 ft 4 in; Height - 5 ft 10 in; WB - 11 ft 6 in; G/C - 12 in; TC - 25 ft; Track - 5 ft 4 in (rear)
Weights	Unladen - 2 tons 2 cwt; Laden - 4 tons
Equipment	Cab - open type. The carrier tank is divided into two compartments of which the front one is for petrol (500 gallons) and the rear one for lubricating oil (50 gallons). The pumping equipment is located at the rear of the carrier tank and included two Varley pumps, an air separator and two Kent meters. The petrol pump is of the gear type and the oil pump of the rotor type, both pumps are driven by a Texrope drive from a shaft coupled to a PTO from the vehicle gearbox. The petrol delivery hose is 20 ft long and the oil delivery hose 15 ft long , two suction hoses, one 15 ft long and the other 6 ft long are provided for petrol and oil respectively. The pump capacities are 20 gpm (petrol) and 2-3 gph (oil).
Suspension	Semi elliptical, front and rear.
Brakes	Hand - internal expanding type, fitted to rear wheels.
Wheels/Tyres	Three piece, central nave disc/7.50-20 Cross-country at rear, HD at front.
Notes	Electrical equipment - 6V, ignition system - coil.. Steering - Worm and sector by single front wheel. Also shown in AP2782A, Section 13.

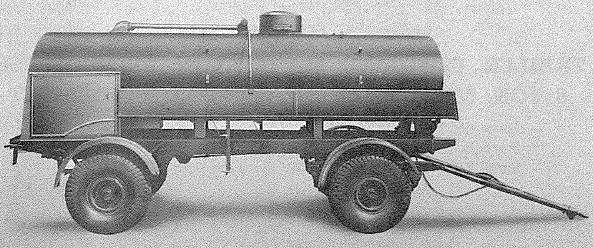

Trailer, gasoline, 900-gallon Brockhouse, 5 ton, Mk 2 with Butterfield equipment Crown Copyright^©
Manufacturer	Brockhouse
RAF Ref No	Possibly 16A/464
Chassis details	See entry at top of this page
Equipment	The 900 gallon Butterfield tank with compartments at the rear is mounted directly to the chassis. The left hand compartment contains the 'Bradford' engine for the 'Drum' pump and the right hand compartment contains the pump. Doors on the sides give access to each compartment. The air separator, control valves and flow meter are contained in the pump compartment and are part of the pump. Provision is made for the hand operation of the pump. Two delivery points protrude from the top of the tank. Hose storage boxes are fitted along the sides of the tank and contain six 10 ft 4 in long delivery hoses and one 11 ft 3 in suction hose.
Dimensions	Length (less tow-bar) - 15 ft 9 in 21 ft 7 in with tow-bar); Width - 7 ft 7 in; Height - 8 ft 0 in;
Weights	Unladen - 3 tons 1¾ cwt; Laden - not stated
Notes	Similar equipment also mounted on Eagle, 5 ton trailer chassis.

900-gallon Petrol tanker (Bellamy) on Brockhouse 4 wheeled Mk I trailer chassis Crown Copyright^©
Manufacturer	Brockhouse
RAF Ref No	Possibly 16A/1548
Chassis details	See entry at top of this page
Equipment	The 900 gallon tank (Bellamy) with two compartments at the rear is mounted directly to the chassis. The left hand compartment contains the Zwicky pump and the right hand compartment contains the Lister type AH engine. Double doors on the sides give access to each compartment. The air separator, control valves and flow meter are contained in the pump compartment and are part of the pump. Two delivery points protrude from the top of the tank. Hose storage boxes are fitted along the sides of the tank and contain six 10 ft 4 in long delivery hoses and two 10 ft 2 in suction hose.
Dimensions	Length (less tow-bar) - 15 ft 6 in, (21 ft 8 in with tow-bar); Width - 7 ft 8 in; Height - 8 ft 1 in;
Weights	Unladen - 3 tons 7 cwt; Laden - 4 tons 18 cwt:
Notes	Similar equipment also mounted on Eagle, 5 ton trailer chassis.

Tender, Petrol, 950-gallon (Butterfield), Bedford QL, 4x4 Crown Copyright^©
Manufacturer	Bedford
RAF Ref No	Unknown
Engine	Bedford, 6 cyl, petrol, OHV. Bore: 85.72 mm (3.375 in), Stroke: 101.6 mm (4 in), Capacity: 3.518 litres (214.7 cu in), Max BHP - 72 at 3,000 rpm; Max torque - 1,944 lbs/ins at 1,200 rpm. RAC Rating - 27.34 hp
Transmission	Clutch - Single dry plate Gearbox - 4 speed and 1 reverse. Ratios: 1st - 7.22 to 1, 2nd - 3.47 to 1, 3rd - 1.71 to 1, 4th - 1 to 1, reverse - 7.15 to 1: Auxiliary gearbox - 2-speed: (High) 1.185 to 1 and (Low) 2.292 to 1. Front axle - Full-floating, spiral bevel, ratio 6.16 to 1 Rear axle - Full-floating, spiral bevel, ratio 6.16 to 1: Overall ratios (High) - 52.74 to 1, 25.36 to 1, 12.50 to 1, 7.31 to 1, Reverse - 52.25 to 1. Overall ratios (Low) - 102.3 to 1, 49.03 to 1, 24.16 to 1, 14.13 to 1, Reverse - 101.04 to 1.
Performance	Max Speed - not stated; MPG - 8; Radius of Action - 230 miles
Dimensions	Length - 19ft 6 in; Width - 7ft 5 in; Height - 8ft 7 in; WB - 11ft 9 in; G/C - 12in (front and rear axles); TC - 54 ft, Track - 5 ft 8 in (front), 5 ft 6½ in (rear).
Weights	Unladen - not stated; Laden - 7 tons 5 cwt.
Equipment	Cab - Enclosed steel panelled cab seating driver and one passenger. The 950 gallon Butterfield petrol tank with two compartments at the rear is mounted directly to the chassis. These compartments contain the 'Bradford' 3 hp petrol engine and the 'Drum' pump. The pump compartment also contains the air separator, control valves, filter and flow meter. Hose storage boxes are fitted along the sides of the tank and contain six 10 ft 3 in lengths of delivery hose and two 11 ft 3 in lengths of suction hose.
Suspension	Semi elliptical, front and rear with hydraulic shock absorbers all round.
Brakes	Foot, hydraulic vacuum servo assisted on all wheels. Hand brake - mechanical on rear wheels. Trailer brake connection - Single line vacuum.
Wheels/Tyres	6.00-20 WD Divided disc/10.50-20
Notes	Steering - Worm and Sector. Also shown in AP2782A, Section 13.

Tender, Petrol, 1,000-gallon (Butterfield), Bedford QL, 4x4
Manufacturer	Bedford
RAF Ref No	Unknown
Engine	Bedford, 6 cyl, petrol, OHV. Bore: 85.72 mm (3.375 in), Stroke: 101.6 mm (4 in), Capacity: 3.518 litres (214.7 cu in), Max BHP - 72 at 3,000 rpm; Max torque - 1,944 lbs/ins at 1,200 rpm. RAC Rating - 27.34 hp
Transmission	Clutch - Single dry plate Gearbox - 4 speed and 1 reverse. Ratios: 1st - 7.22 to 1, 2nd - 3.47 to 1, 3rd - 1.71 to 1, 4th - 1 to 1, reverse - 7.15 to 1: Auxiliary gearbox - 2-speed: (High) 1.185 to 1 and (Low) 2.292 to 1. Front axle - Full-floating, spiral bevel, ratio 6.16 to 1 Rear axle - Full-floating, spiral bevel, ratio 6.16 to 1: Overall ratios (High) - 52.74 to 1, 25.36 to 1, 12.50 to 1, 7.31 to 1, Reverse - 52.25 to 1. Overall ratios (Low) - 102.3 to 1, 49.03 to 1, 24.16 to 1, 14.13 to 1, Reverse - 101.04 to 1.
Performance	Max Speed - not stated; MPG - 8; Radius of Action - 230 miles
Dimensions	Length - 19ft 6 in; Width - 7ft 5 in; Height - 8ft 7 in; WB - 11ft 9 in; G/C - 12in (front and rear axles); TC - 54 ft, Track - 5 ft 8 in (front), 5 ft 6½ in (rear).
Weights	Unladen - not stated; Laden - 7 tons 5 cwt.
Equipment	Cab - Enclosed steel panelled cab seating driver and one passenger. The 1,000 gallon Butterfield petrol tank is mounted directly to the chassis with petrol pump driven by power take off. Petrol pump, air separator, control valves, filters, flow meter and remote throttle control housed in pump compartment. Tank is provided with two 1½ in delivery points. Stowage boxes are fitted and contain six 10 ft 3 in lengths of delivery hose and two 11 ft 3 in lengths of suction hose.
Suspension	Semi elliptical, front and rear with hydraulic shock absorbers all round.
Brakes	Foot, hydraulic vacuum servo assisted on all wheels. Hand brake - mechanical on rear wheels. Trailer brake connection - Single line vacuum.
Wheels/Tyres	6.00-20 WD Divided disc/10.50-20
Notes	Steering - Worm and Sector. Also shown in AP2782A, Section 13.

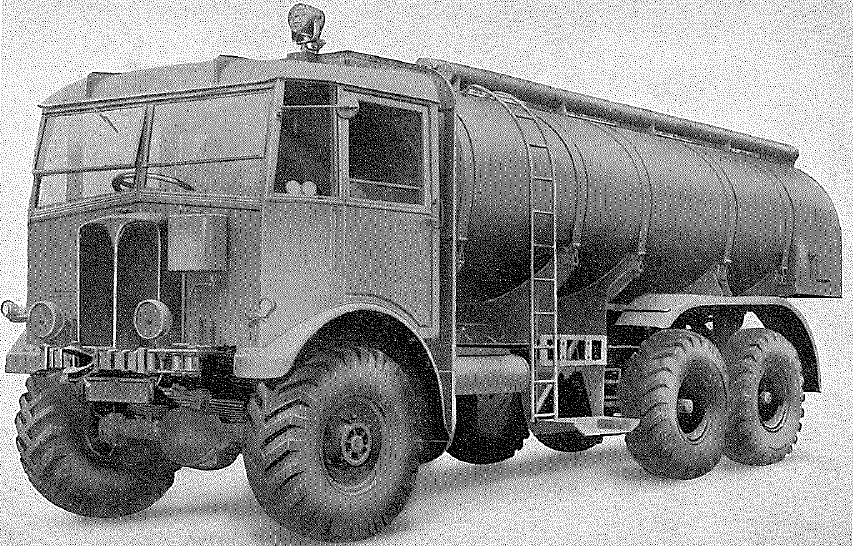

Tractor, tanker, 2,500 gallon mounted on AEC 854, Petrol, 6x6, chassis Crown Copyright^©
Manufacturer	AEC
RAF Ref No	Unknown
Engine	AEC, 6 cyl. Bore: 110 mm (4.1331 in), Stroke: 130 mm (5.118 in), Capacity: 7.41 litres (452.3 cu in). Max BHP - 92 at 2,200 rpm (governed); Max torque - 3.645 lbs/ins at 800 rpm. RAC Rating - 45 hp.
Transmission	Clutch - Single dry plate Gearbox - 4 speed and 1 reverse. Ratios: 1st - 4.38 to 1, 2nd - 2.69 to 1, 3rd - 1.59 to 1, 4th - 1 to 1, reverse - 5.33 to 1: Auxiliary box - 2-speed. Ratios 1 to 1 and 2.91 to 1. Front wheel drive automatically engaged in low gear. Front axle - Double reduction, spiral bevel and spur gears. Ratio 8.25 to 1. Rear axle - Semi-floating, worm drive, ratio 8.25 to 1. Overall ratios (High) - 36.13 to 1, 22.19 to 1, 13.11 to 1, 8.25 to 1, Reverse - 43.9 to 1. Overall ratios (Low) - 105.2 to 1, 64.6 to 1, 38.2 to 1, 24.01 to 1, Reverse - 127.9 to 1.
Performance	Max Speed - not stated; MPG - not stated; Radius of Action - not stated
Dimensions	Length - 25 ft 9 in; Width - 7 ft 9 in; Height - 10 ft 10 in; WB - 14 ft 9-1/8 in; BC - 4 ft 3¼ in; G/C - 13 in (front axle); TC - 75 ft; Track - 6 ft 3 in (front), 6 ft 1 in (rear)
Weights	Unladen - 11 tons 2 cwt; Laden - 20 tons 2 cwt.
Equipment	Cab - Fully enclosed forward control type cab, seating two with sliding panel in roof for access to searchlight. Firescreen fitted behind cab. Fitted with 2,500 gallon petrol tank with two Zwicky pumps mounted in compartment at rear and driven by power take off. Throttle control, filters, air separator, flowmeters and four hose reels in pump compartment, each hose reel containing 45 ft length of hose, 1½ in diameter. Box containers for six 16 ft lengths of 2½ in suction hose on top of tank. Special fittings - Laminated spring drawbar gear with fork and pin, fitted at front and rear of chassis. Some models fitted with Turner 7 ton winch with 250 ft of ¾ in rope.
Suspension	Front - Semi elliptical. Rear - Semi elliptical carried at centre by spring chairs rotated on fixed central beam.
Brakes	Foot - Hydraulic, vacuum servo assisted on all wheels. Hand - mechanical on rear wheels. Trailer brake connection - Single line vacuum
Wheels/Tyres	Split disc type, 10 stud/13.50-20 'Trak-Grip' singles all round.
Notes	Steering - Worm and nut. Also shown in AP2782A, Section 14.

Tractor, tanker, 2,500 gallon mounted on AEC 0854 (CI), 6x6, chassis Crown Copyright^©
Manufacturer	AEC
RAF Ref No	16A/554 and 16A/620
Engine	AEC type A196, CI, 6 cyl. Bore: 105 mm (4.134 in), Stroke: 146 mm (5.749 in), Capacity: 7.58 litres (462.6 cu in). Max BHP - 95 at 1,800 rpm (governed); Max torque - 3.720 lbs/ins at 1,200 rpm. RAC Rating - 41 hp.
Transmission	Clutch - Single dry plate Gearbox - 4 speed and 1 reverse with constant mesh 3rd gear. Ratios: 1st - 4.38 to 1, 2nd - 2.69 to 1, 3rd - 1.59 to 1, 4th - 1 to 1, reverse - 5.33 to 1 (early vehicles), 5.14 to 1 (later vehicles): Auxiliary box - 2-speed. Ratios 1 to 1 and 2.91 to 1. Front wheel drive automatically engaged in low gear. Front axle - (Mk 2) Fully-floating double reduction bevel and double helical gears. Ratio 7.9 to 1. Rear axle - (Mk 2) Semi-floating, (Mk 4) Fully floating, overhead worm drive, ratio 8.25 to 1. Overall ratios (High) - 36.1 to 1, 22.2 to 1, 13.1 to 1, 8.25 to 1, Reverse - 43.8 to 1 (Mk2), 42.4 (Mk 4). Overall ratios (Low) - 100.6 to 1, 61.8 to 1, 36.5 to 1, 23.0 to 1, Reverse - 122.1 to 1 (Mk 2), 117.8 (Mk 4).
Performance	Max Speed - not stated; MPG - not stated; Radius of Action - not stated
Dimensions	Length - 25 ft 9 in; Width - 7 ft 10 in; Height - 10 ft 10 in (Mk 2), 11 ft 10 in (Mk 4); WB - 14 ft 9-1/8 in; BC - 4 ft 3¼ in; G/C - 13 in (front axle); TC - 70 ft; Track - 6 ft 3-1/8 in (front), 6 ft 1 in (rear)
Weights	Unladen - 10 tons 11¾ cwt; Laden - 19 tons 11 cwt. Standing tonnage - 54.71 ton (Mk 2), 55.47 tons (Mk 4)
Equipment	Cab - Fully enclosed, steel panelled forward control type cab, seating two with sliding panel in roof for access to searchlight. No firescreen fitted behind cab. A 2,500 gallon petrol tank with three transverse baffle plates is mounted in steel cradles on chassis. Pumping equipment is housed in a compartment at rear of the tank, comprising a Stuart-Turner Type P5XC petrol engine coupled by a worm reduction gear to two Zwicky fuel pumps. Mk 2 only - Mounted on hose reels in pump compartment, are four 45 ft length of hose, 1½ in bore delivery hose. Hose stowage boxes at the top of the tank contain six 16 ft lengths of 2½ in bore suction hose. Delivery capacities: - One hose and nozzle - 25-35 gpm Two hoses and nozzles - 45-55 gpm Three hoses and nozzles - 55-65 gpm Four hoses and nozzles - 65-75 gpm Mk 4 only - Mounted on a hose reel in pump compartment is one 30 ft length of hose, 1½ in bore delivery hose fitted with Zwicky Type K trigger nozzle. Mounted on platforms at the forward end of the tank are two 13 ft elevating booms, each with a 12 ft length of 1½ in bore delivery hose and a Zwicky Type K trigger nozzle. Hose stowage boxes at the top of the tank contain three 16 ft lengths of 2½ in bore suction hose. Delivery capacities: - One boom and nozzle - 30-40 gpm Two booms and nozzles - 55-65 gpm Two booms and reel hose and nozzles - 65-75 gpm
Suspension	Front - Semi elliptical. Rear - Semi elliptical mounted at centre of spring chair.
Brakes	Foot - Hydraulic, vacuum servo assisted on all wheels. Hand - mechanical on four rear wheels.
Wheels/Tyres	Split disc type, 10 stud/13.50-20 or 14.00-20 Cross-country singles all round.
Notes	Steering - Worm and nut. Electrical System - 24V starting, 12V lighting, balanced three wire system. Also shown in AP2782A, Section 14.

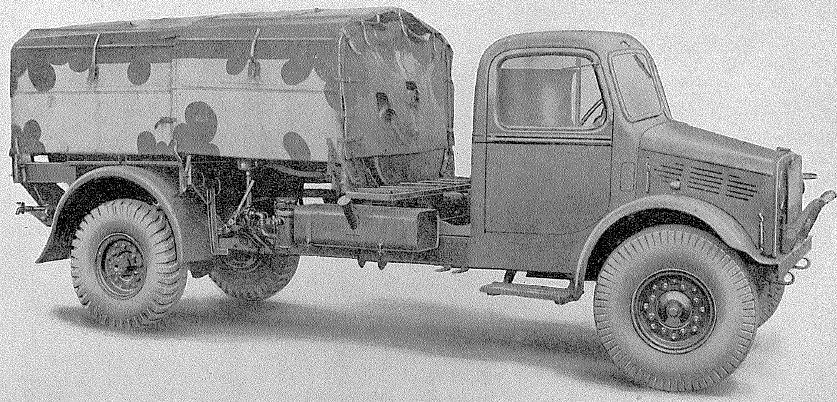

Tender, water tank, 350-gallon, Bedford OYC, 4x2 Crown Copyright^©
Manufacturer	Bedford
RAF Ref No	16A/690
Engine	Bedford, 6 cyl, petrol, OHV. Bore: 85.72 mm (3.725 in), Stroke: 101.6mm (4 in), Capacity: 3.518 litres (214.7 cu in), Max BHP - 72 at 3,000 rpm,(governed); Max torque - 1,944 lbs/ins at 1,200 rpm. RAC Rating - 27.34 hp
Transmission	Clutch - Single dry plate 10 in dia. Gearbox - 4 speed and 1 reverse. Ratios: 1st - 7.22 to 1, 2nd - 3.47 to 1, 3rd - 1.71 to 1, 4th - 1 to 1, reverse - 7.15 to 1: Front axle - 'I' Section Rear axle - Full-floating, spiral bevel, ratio 7.4 to 1: Overall ratios - 53.43 to 1, 25.68 to 1, 12.65 to 1, 7.4 to 1, Reverse - 52.91 to 1.
Performance	Max Speed - not stated; MPG - 9; Radius of Action - 280 miles
Dimensions	Length - 20ft 1 in; Width - 6 ft 7 in; Height - 7 ft 7 in (stripped shipping height - 7 ft 0 in); WB - 13ft 1in; G/C - 9in (rear axle); TC - 66 ft, Track - 5 ft 4 in (front), 5 ft 2½ in (rear)
Weights	Unladen - 3-tons 2¼ cwt; Laden - 5 tons 7 cwt.
Equipment	350 gallon tank mounted on to chassis and fitted with two hand operated pumps and duplicated sets of complete filtering equipment. Each pump capable of delivering a complete tankful in one hour. Filtering equipment and delivery hose are stored in locker built into rear of tank. Camouflage tilt carried on detachable structure. Cab - Fully enclosed steel panelled cab seating two, including driver.
Suspension	Front - Semi elliptical with hydraulic shock absorbers. Rear - Semi elliptical (progressive type) with hydraulic shock absorbers.
Brakes	Foot, hydraulic vacuum servo assisted on all wheels. Hand brake - mechanical on rear wheels.
Wheels/Tyres	Divided disc 6.00x16 8 stud/10.50-16 Trak-Grip.
Notes	Steering - Worm and sector. Also shown in AP2782A, Section 13.

Tender, Water Tank, 350 gallon, Chevrolet, 3 ton, 4x4
Manufacturer	Chevrolet (Canada)
RAF Ref No	Unknown
Engine	Chevrolet, 6 cyl, petrol. Bore: 88.9 mm (3½ in), Stroke: 95.23 mm (3¾ in), Capacity: 3.54 litres, RAC rating - 29.4 hp. Max BHP - 85 at 3,400 rpm; Max torque - 2,040 lbs/ins at 1,200 rpm.
Transmission	Clutch - Single dry plate 10¾ in dia. Gearbox - 4 speed and 1 reverse. Ratios: 1st - 7.058 to 1, 2nd - 3.48 to 1, 3rd - 1.71 to 1, 4th - 1 to 1, reverse - 6.982 to 1: Auxiliary - Ratios: (High) Direct (1 to 1) and (Low) 1.87 to 1. Front wheel drive can be disengaged in High gear. Front axle - Full floating, spiral bevel drive. Ratio - 7.2 to 1 Rear axle - Full floating, spiral bevel drive, ratio - 7.2 to 1: Overall ratios (High) - 52.0 to 1, 25.0 to 1, 12.3 to 1, 7.2 to 1, Reverse - 51.5 to 1. Overall ratios (Low) - 97.23 to 1, 46.74 to 1, 23.00 to 1, 13.46 to 1, Reverse - 96.29 to 1.
Performance	Max Speed - not stated; MPG - 8; Radius of Action - 190 miles
Dimensions	Length - 20 ft 0 in; Width - 7 ft 4 in; Height - 7 ft 6 in (stripped shipping height - 6 ft 9 in); WB 13 ft 2 in; G/C - 11 in; TC -67 ft; Track - 5 ft 8½ in (front), 5 ft 9 in (rear)
Weights	Unladen - not stated; Laden - 6 tons 12 cwt:
Equipment	Cab - Canadian Military Pattern model 13 cab, seating two including the driver. Detachable top to reduce shipping height. Reverse slope windscreen The body fitted to this vehicle is basically similar to that shown above for the Bedford OY chassis except: - The tank capacity is actually 400 Imperial gallons. It is equipped with a power-operated pump (from a PTO) in addition to hand pumps. Capacity is 1,000 gph. At the rear of the elliptical tank is a rectangular compartment housing filters, hoses, etc. Vehicle is equipped with four six candle filters, two each side of the tank. Similar to Metafilter and interchangeable as a complete unit with Metafilter or Stellar. Hand pumps, taps, hoses, strainers and floats interchangeable with WD 350 water tank shown above.
Suspension	Semi elliptical, front and rear with hydraulic shock absorbers.
Brakes	Foot - hydraulic vacuum servo assisted on all wheels. Hand - mechanical on rear wheels. Trailer brake connection - Single line vacuum
Wheels/Tyres	WD Divided type 20-6/10.50-20
Notes	Steering - Right hand drive, Ball bearing nut and sector. Electrical equipment - 6V. Also shown in AP2782A, Section 13.

300-gallon Water Tank on Brockhouse, Mk 1, 4 wheeled trailer chassis Crown Copyright^©
Manufacturer	Brockhouse
RAF Ref No	Unknown
Chassis details	See entry at top of this page
Equipment	300-gallon water tank with compartment on forward end for stowage of portable water container and compartment at rear end for sterilisation and filtration plant. Wooden lockers at side for tools and chemicals. Plant - ECD Water purification plant, comprising Model 5 JAP 4 hp petrol engine, rotary pump and DC electric generator. Pump capacity 500 gph against delivery pressure of 100 lbs/sq in. Dosing tanks, electrolytic cell, metafilter and control panel. Semi-rotary hand pumps for emergency use, suction and delivery hoses.
Dimensions	Length (less tow-bar) - 16 ft 3 in; Width - 7 ft 6 in; Height - 7 ft 3 in;
Weights	Unladen - 2 tons 19½ cwt; Laden - 4 tons 6¼ cwt:
Notes

Tender, water tank, 300-gallon, Fordson WOT 1, 6x4
Manufacturer	Ford
RAF Ref No	Unknown
Chassis	Fordson WOT 1, 6x4 - see Group 2 for general details
Equipment	300-gallon water tank with compartment on forward end for stowage of portable water container and compartment at rear end for sterilisation and filtration plant. Wooden lockers at side for tools and chemicals. Plant - ECD Water purification plant, comprising Model 5 JAP 4 hp petrol engine, rotary pump and DC electric generator. Pump capacity 500 gph against delivery pressure of 100 lbs/sq in. Dosing tanks, electrolytic cell, metafilter and control panel. Semi-rotary hand pumps for emergency use, suction and delivery hoses.
Notes

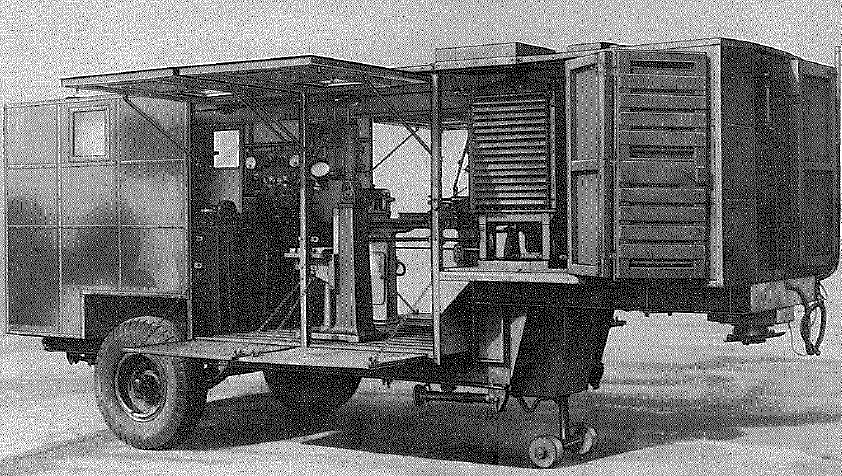

Tender, 3 ton, Air Bottle, Bedford OXC-Tasker, 4x2-2 Crown Copyright^©
Manufacturer	Bedford/Tasker
RAF Ref No	Possibly16A/1087 (Trailer)
Purpose	Storage plant providing a supply of compressed air for charging torpedo vessels.
Tractor	Bedford OXC, Crossley or Commer Type Q tractors fitted with a Tasker ramp and coupling unit attachment.
Chassis construction	Rolled steel channel section, electrically welded. Three point suspension; forward end, Tasker semi-trailer coupling unit; jockey wheels for support of semi-trailer when detached from the tractor. A welded steel tubular steel tow-bar, fitting into two lugs on the jockey wheel axle provides means for steering and towing the trailer for short distances when a tractor is not available.
Suspension	Semi-elliptic springs underslung on main axle.
Brakes	Internal expanding operated by single vacuum line from the tractor, or by hand brake through compensator unit. A parking brake handle is fitted to the near side.
Jockey wheels	Mechanism - The jockey wheel axle pivots on a vertical leg which is extended and retracted manually through a pair of bevel gears and a hand crank, one of the bevels operates on a screw thread on the leg. Jockey wheels - 2 x 9 in diameter cast iron wheels.
Wheels/Tyres	3-piece/10.50-20 HD
Body	Body - Cabin at forward end of chassis, welded steel frame construction , panelled with sheet metal. Entry to the cabin by canvas curtains from the chassis platform. Equipment - Water storage tanks, 170 gallons capacity. Water pumping and circulating equipment. Water temperature control for 30 gallons/hour. Air conditioning plant. Chemical tanks, sinks and circulating system. Film-processing machine. Body looked similar to that shown below on Tasker semi-trailer chassis.
Dimensions	Vehicle - Length - 31 ft 0 in; Width - 7 ft 6 in; Height - 9 ft 4½ in Trailer - Length - 20 ft 0 in; Width - 7 ft 6 in (Chassis frame - 5 ft 0 in); Height - 9 ft 4½ in (Loading height - 2 ft 11 in); Track - 6 ft 6 in; Centre of coupling unit to axle - 14 ft 3 in. Cabin- Length - 8 ft 6 in; Width - 7 ft 0 in; Height - 4 ft 7 in (front), 6 ft 5 in (rear);
Weights	Unladen - not stated; Laden - not staed
Notes

Tender, Bomb, Austin, 3 ton, 6x4 Crown Copyright^©
Manufacturer	Austin
RAF Ref No	Possibly 16A/643
Engine	Austin, 6 cyl, petrol, OHV. Bore: 87.31 mm (3.437 in), Stroke: 111.12 mm (4.375 in), Capacity: 3.995 litres (243.8 cu in). Max BHP - 82 at 2,900 rpm; Max torque - 2,065 lbs/ins at 1,400 rpm. RAC Rating - 28.37 hp
Transmission	Clutch - Borg and Beck single dry plate Gearbox - 4 speed and 1 reverse. Ratios: 1st - 6.58 to 1, 2nd - 3.48 to 1, 3rd - 1.71 to 1, 4th - 1 to 1, reverse - 6.57 to 1: Auxiliary Box - 2 speed. Ratios - 1 to 1 (High) and 1.87 to 1 (Low). Rear axle - Overhead worm drive, ratio - 7.75 to 1. Overall ratios (High) - 51.0 to 1, 27.0 to 1, 13.26 to 1, 7.75 to 1, Reverse - 51.0 to 1. Overall ratios (Low) - 95.6 to 1, 50.6 to 1, 24.8 to 1,14.5 to 1, Reverse - 95.6 to 1.
Performance	Max Speed - not stated; MPG - 7; Radius of Action - 210 miles
Dimensions	Length - 22 ft 6 in (internal - 15 ft 0 in); Width - 7 ft 7 in (internal - 7 ft 4 in); Height - 7 ft 2½ in (internal - 6 in chock rails); WB - 12 ft 9 in; BC - 4 ft 0 in; G/C - 9½ in (rear bogie); TC - 57 ft 5 in (Right), 56 ft 8 in (left); Track - 5 ft 8-1/8 in (front & rear).
Weights	Unladen - not stated; Laden - 7 tons 11½ cwt.
Body	Cab - All steel construction; ventilator in back panel. Bucket seats accommodating driver and one passenger. Driver's seat adjustable (three positions). Cab top detachable. Body - Flat platform with hinged 6 in chock rails along the sides and the back, fixed chock rail at the front. All metal construction. Equipment - Mechanical tyre pump mounted on the offside of the main gearbox. Carrier for two four-gallon jerricans, one one-gallon oil can and a tool box. Leaf spring mounted towing hook.
Suspension	Front - semi elliptical. Rear - inverted semi-elliptical spring pivoted at centre.
Brakes	Foot, Hydraulic servo assisted on all wheels. Hand brake - mechanical on rear wheels.
Wheels/Tyres	Dunlop two piece wheels or 6.00-20 3-piece/9.00-20 0r 10.50-20
Notes	Steering - 'Bishop' Cam and roller, model 'DQ'. Also shown in AP2782A, Section 17.

Trailer, 4-wheel Flat Platform (bomb carrying) Crown Copyright^©
Manufacturer	Eagle
RAF Ref No	Possibly 16A/1137
Chassis details	See entry at top of this page
Body	Flat platform with hinged 6 in chock rails along the sides and the back, fixed chock rail at the front. All metal construction.
Dimensions	Overall: Length (drawbar horizontal) - 21 ft 11½ in; Width - 7 ft 7 in; Height - 4 ft 0 in; Body: Length - 15 ft 3 in (internal - 15 ft); Width - 7 ft 7 in (internal - 7 ft 4 in); Loading Height - 3 ft 6 in;
Notes	Also shown in AP2782A, Section 17.

Tender, MT Breakdown, 3 ton, Crossley, 6x4 Crown Copyright^©
Manufacturer	Crossley
RAF Ref No	Unknown
Engine	Crossley, 4 cyl, petrol. Bore: 110mm (4.31 in), Stroke: 140 mm (5.5 in), Capacity: 5.266 litres (321.35 cu in). Max BHP - 90 at 2,500 rpm; Max torque - 2,940 lbs/ins at 1,000 rpm. RAC Rating - 29.8 hp
Transmission	Clutch - Single dry plate Gearbox (Main) - 4 speed and 1 reverse. Ratios: 1st - 5.34 to 1, 2nd - 2.985 to 1, 3rd - 1.71 to 1, 4th - 1 to 1, reverse - 4.7 to 1: Auxiliary Box - 2 speed. Ratios - 1 to 1 (High) and 3.18 to 1 (Low). Front axle - 'H' Section Rear axle - ¾ -floating. Ration - 7.25 to 1. Overall ratios (High) - 38.71 to 1, 21.64 to 1, 12.4 to 1, 7.25 to 1, Reverse - 34.07 to 1. Overall ratios (Low) - 123.1 to 1, 68.8 to 1, 39.42 to 1, 23.05 to 1, Reverse - 108.3 to 1.
Performance	Max Speed - not stated; MPG - not stated; Radius of Action - not stated
Dimensions	Length - 22 ft 3 in; Width - 7 ft 6 in; Height - 10 ft 10 in; WB - 13 ft 3 in; G/C - 1 ft 2 in; TC - 55 ft 0 in; Track - 6 ft 3 in (front), 5 ft 11 in (rear)
Weights	Unladen - 5 tons 1 cwt; Laden - not stated.
Body	Body - Open lorry body with front half enclosed as a panelled van containing a workbench and bins. Rear half fitted with drop-sides and tailboard. Mounted in the body is a 5 ton hand operated Harvey Frost Ambulance crane. Cab - All enclosed seating driver and one passenger.
Suspension	Front - Semi elliptical with Gruss air spring. Rear - Dual inverted semi-elliptical.
Brakes	Foot - vacuum servo assisted on trailing rear wheels. Hand brake - mechanical on leading rear wheels. Trailer brake connections - Single line vacuum on some models.
Wheels/Tyres	Split disc wheels/10.50-20
Notes	Steering - Cam and roller. Also shown in AP2782, Section 6.

Tender, MT Breakdown, 3 ton, Crossley, 4x4
Manufacturer	Crossley
RAF Ref No	Unknown
Engine	Crossley, 4 cyl, petrol, OHV. Bore: 110mm (4.31 in), Stroke: 140 mm (5.5 in), Capacity: 5.266 litres (321.35 cu in). Max BHP - 96 at 2,500 rpm, (governed to 2,500); Max torque - 2,770 lbs/ins at 1,500 rpm. RAC Rating - 29.8 hp
Transmission	Clutch - Single dry plate Gearbox (Main) - 4 speed and 1 reverse. Ratios: 1st - 5.34 to 1, 2nd - 2.98 to 1, 3rd - 1.71 to 1, 4th - 1 to 1, reverse - 4.7 to 1: Auxiliary Box - 2 speed. Ratios - 1 to 1 (High) and 2.15 to 1 (Low). Front axle - Full-floating, Overhead worm gear, 7.75 to 1. Rear axle - Full-floating, Overhead worm gear, 7.75 to 1. Overall ratios (High) - 41.38 to 1, 23.10 to 1, 13.25 to 1, 7.75 to 1, Reverse - 36.42 to 1. Overall ratios (Low) - 88.96 to 1, 49.65 to 1, 28.49 to 1, 16.66 to 1, Reverse - 78.3 to 1.
Performance	Max Speed - not stated; MPG - 6.5; Radius of Action - 170 miles
Dimensions	Length - 20 ft 3 in (internal - 14 ft 10 in); Width - 7 ft 6 in (internal - 7 ft 0 in); Height - 11 ft 0 in (internal - 6 ft 6 in); WB - 11 ft 6 in; G/C - 1 ft 2¼ in (axles), 1 ft 11 in (belly); TC - 55 ft 0 in; Track - 6 ft 2-3/8 in (front), 5 ft 10½ in (rear)
Weights	Unladen - 4 tons 13 cwt; Laden - not stated.
Body	Body - Open lorry body with front half enclosed as a panelled van containing a workbench and bins. Rear half fitted with drop-sides and tailboard. Mounted in the body is a 5 ton hand operated Harvey Frost Ambulance crane. Cab - All enclosed seating driver and one passenger.
Suspension	Semi elliptical, front and rear
Brakes	Foot - hydraulic vacuum servo assisted on all wheels. Hand brake - mechanical on all wheels. Trailer brake connections - Single line vacuum.
Wheels/Tyres	Split disc wheels 20 x 8.37/12.00-20 singles
Notes	Steering - Cam and roller. Also shown in AP2782A, Section 6.

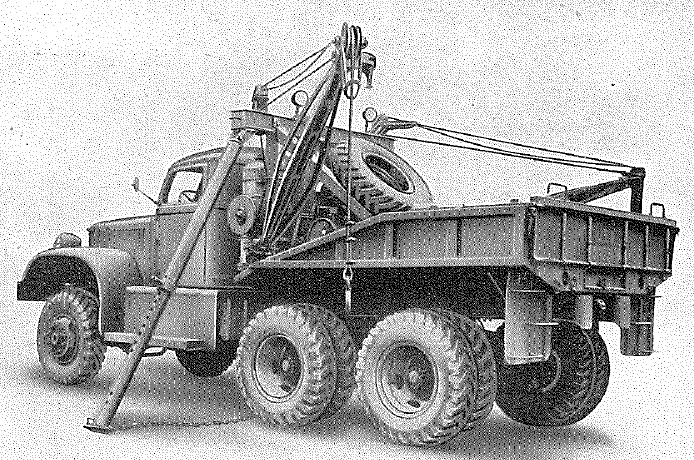

Tender, MT Breakdown, 4 ton, Diamond T 969B, 6x6 Crown Copyright^©
Manufacturer	Diamond T
RAF Ref No	Unknown
Engine	Hercules RXC, 6-cyl. petrol, Bore: 117.4 mm (4.625 in), Stroke: 133.4 mm (5.25 in), Capacity: 8.6 litres (524.8 cu in). Max BHP - 131.5 at 2,300 rpm (governed); RAC Rating - 51.34 hp.
Transmission	Clutch - Single dry plate. Gearbox - 5 speed and 1 reverse. Ratios: 1st - 7.08 to 1, 2nd - 3.82 to 1, 3rd - 1.85 to 1, 4th - 1 to 1, 5th - 0.768 to 1, reverse - 7.08 to 1: Auxiliary gearbox - 2-speed with PTO for winches. Ratios 1.155 to 1 and 1.72 to 1. Front axle - Timken, driving unit with double reduction differential. Ratio 8.435 to 1. Rear axle - Fully floating, spiral bevel drive, ratio 8.435 to 1. Overall Ratios (High) - 1st - 59.71to 1, 2nd - 31.14 to 1, 3rd - 15.61 to 1, 4th - 8.435 to 1, 5th - 6.479 to 1, Reverse - 59.71 to 1 Overall Ratios (Low) - 1st - 102.07 to 1, 2nd - 55.27 to 1, 3rd - 26.84 to 1, 4th - 14.51 to 1, 5th - 11.14 to 1, Reverse - 102.7:
Performance	Max Speed - 40 mph (on hard surfaced roads); MPG - 3.5; Radius of Action -175 miles.
Dimensions	Length - 24 ft 3-5/8 in; Width - 8 ft 5 in; Height - 9 ft 8 in; WB - 12 ft 7 in; BC - 4 ft 4 in; G/C - 11 in; TC - 73 ft; Track - 6 ft 1¾ in (front), 6 ft 0¾ in (rear):
Weights	Unladen - 8 tons 1 cwt, Laden - 9 tons 18 cwt. Standing tonnage - 48.94 tons.
Body	Body - Constructed by Gar Wood, all steel mounted rigidly to frame by long clamp bolts. Two large capacity tool boxes are located atrear of body and contain chains, clamps, tow-bars, anchors, welding equipment, etc. Wrecker - Made by Ernest Holmes and consists of the wrecker transmission, two winches, two booms, two winch cables, two boom cables and pulley blocks to guide the cables. Two telescopic brace legs are fitted to either side of the structural frame. Front winch - Mounted in front and power driven through a 3-speed PTO mounted in the side of the vehicle transmission. Winch cable is 300 ft long and has a safe pull capacity of 15,00 lbs. Equipment - Air compressor, driven by single cylinder, four-stroke petrol engine. Acetylene welding equipment and tool set. Complete recovery equipment. Cab - All enclosed of steel panels seating driver and one passenger.
Suspension	Front - semi-elliptical. Rear - inverted semi-elliptical, with upper and lower torque rods.
Brakes	Foot - Bendix-Westinghouse air pressure system on all wheels. Hand - mechanical disc type on transmission in rear of auxiliary gearbox. Trailer connections - Two line air pressure type connections, front and rear.
Wheels/Tyres	20.00-8/9.00-20 Trak-Grip, singles on front, dual on rear.
Notes	Steering - Ross Cam and lever. Left hand drive Electrical equipment: Lighting -6V, Starter - 12V Also shown in AP2782A, Section 11.

Dennis, 5 ton, 4x2, 750 gallon Cesspool Emptier Crown Copyright^©
Manufacturer	Dennis
RAF Ref No	16A/528
Engine	Dennis, 4 cyl, petrol. Bore: 100mm (3.937 in), Stroke: 120mm (4.728 in), Capacity: 3.77 litres (230.18 cu in). Max BHP - 75 at 3,000 rpm (governed to 2,800 rpm); Max torque - 1,850 lbs/ins at 1,500 rpm. RAC Rating - 24.8 hp
Transmission	Clutch - Single plate, running in oil Gearbox (Main) - 4 speed and 1 reverse. Ratios: 1st - 6.29 to 1, 2nd - 3.16 to 1, 3rd - 1.74 to 1, 4th - 1 to 1, reverse - 8.14 to 1: Front axle - 'H' Section beam. Rear axle - Full-floating, spiral bevel, ratio 7.0 to 1: Overall ratios - 44 to 1, 22.1 to 1, 12.2 to 1, 7.0 to 1, Reverse - 56.9 to 1.
Performance	Max Speed - 40 mph (governed); MPG - 8; Radius of Action - 160 miles
Dimensions	Length -22 ft 4 in; Width - 7 ft 4 in; Height - 8 ft 2 in; WB - 13 ft 6 in; G/C - not stated; TC - 47 ft; Track - 5 ft 5 in (front), 5 ft 4 in (rear)
Weights	Unladen - 3 tons 10 cwt; Laden - 7 tons 0 cwt.
Body	Cab - Fully enclosed steel panelled, seating driver and one passenger. Spare wheel mounted behind cab. Equipment - 750-gallon cylindrical section tank, fitted with an external night soil filling tank and hose connections for cesspool emptying. A 10-gallon deodorant tank fitted on the off-side of the chassis is connected to the main inlet valve. A rotary type air pump fitted with a reversing valve, is used as a exhauster to fill the tank, or as a compressor to clean the hose after use, or to assist the discharge of the tank contents. The air pump is driven by a power take off on the nearside of the engine gearbox. An automatic cut-out valve, which operates when the tank is full and an air filter are situated in the air line between the tank and the air pump. 10 ft lengths of 3 in diameter suction hose are carried in lockers along each side of the tank.
Suspension	Semi elliptical, front and rear.
Brakes	Foot, hydraulic on all wheels. Hand brake - mechanical on rear wheels. Trailer brake connections - Single line vacuum.
Wheels/Tyres	Three piece/34-7 dual rear.
Notes	Steering - Worm and nut. Also shown in AP2782A, Section 32.

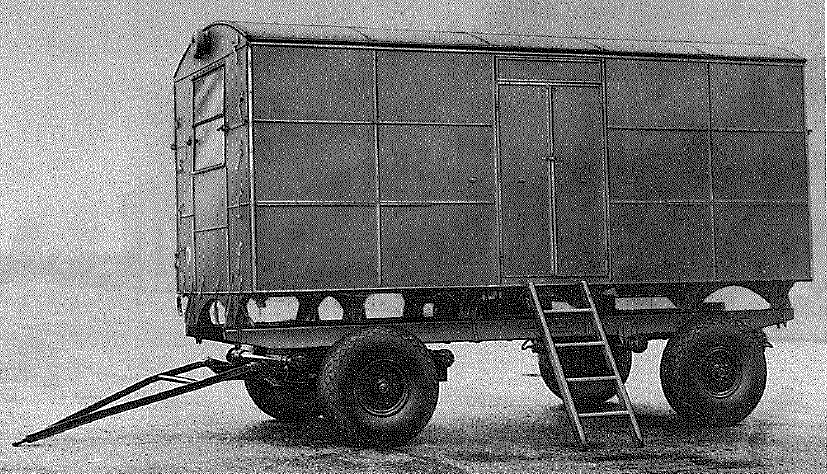

Cooking body (House Type) on Brockhouse 4 wheeled Mk I trailer chassis
Manufacturer	Brockhouse
RAF Ref No	Unknown
Chassis details	See entry at top of this page
Dimensions	Length (less tow-bar) - 15 ft 6 in (internal - 14 ft 10 in); Width - 7 ft 0 in (internal - 6 ft 10 in); Height - 10 ft 2 in (internal - 6 ft 5 in);
Weights	Unladen - not stated; Laden - 3 tons 5¾ cwt:
Body	Body - Metal framework, roof, ends and sides up to waist rail metal panelled. Upper part of sides fitted with expanded metal , covered with canvas sheets, to form awnings. Wooden floor, door in rear end of body only. Wired for 230V interior lighting. Special fittings - Six petrol cooking ranges (Turley & Williams) with common petrol tank. One oven and insulated food containers. Benches, cupboards and portable kitchen utensils
Notes

Cooking body (House Type) on Brockhouse 4 wheeled Mk II trailer chassis
Manufacturer	Brockhouse
RAF Ref No	Unknown
Chassis details	See entry at top of this page
Dimensions	Probably similar to Cooking body (House Type) mounted on Brockhouse Mk chassis shown above.
Weights	Probably similar to Cooking body (House Type) mounted on Brockhouse Mk chassis shown above.
Body	Body - Metal framework, roof, ends and sides up to waist rail metal panelled. Upper part of sides fitted with expanded metal , covered with canvas sheets, to form awnings. Wooden floor, door in rear end of body only. Wired for 230V interior lighting. Special fittings - Six petrol cooking ranges (Turley & Williams) with common petrol tank. One oven and insulated food containers. Benches, cupboards and portable kitchen utensils.
Notes

Cooking body (House Type) on Eagle 5 ton trailer chassis
Manufacturer	Eagle
RAF Ref No	Unknown
Chassis details	See entry at top of this page
Dimensions	Probably similar to Cooking body (House Type) mounted on Brockhouse Mk chassis shown above.
Weights	Probably similar to Cooking body (House Type) mounted on Brockhouse Mk chassis shown above.
Body	Body - Metal framework, roof, ends and sides up to waist rail metal panelled. Upper part of sides fitted with expanded metal , covered with canvas sheets, to form awnings. Wooden floor, door in rear end of body only. Wired for 230V interior lighting. Special fittings - Six petrol cooking ranges (Turley & Williams) with common petrol tank. One oven and insulated food containers. Benches, cupboards and portable kitchen utensils.
Notes

Tender, Cooking, Ford, WOT 1, 6x4
Manufacturer	Ford
RAF Ref No	Unknown
Body	Body - Metal framework, roof, ends and sides up to waist rail metal panelled. Upper part of sides fitted with expanded metal , covered with canvas sheets, to form awnings. Wooden floor, door in rear end of body only. Wired for 230V interior lighting. Body dimensions probably similar to Cooking body (House Type) mounted on Brockhouse Mk chassis shown above. Special fittings - Six petrol cooking ranges (Turley & Williams) with common petrol tank. One oven and insulated food containers. Benches, cupboards and portable kitchen utensils.
Notes	Vehicle chassis details probably similar to Ford WOT 1, 6x4 Tender shown in Group 2.

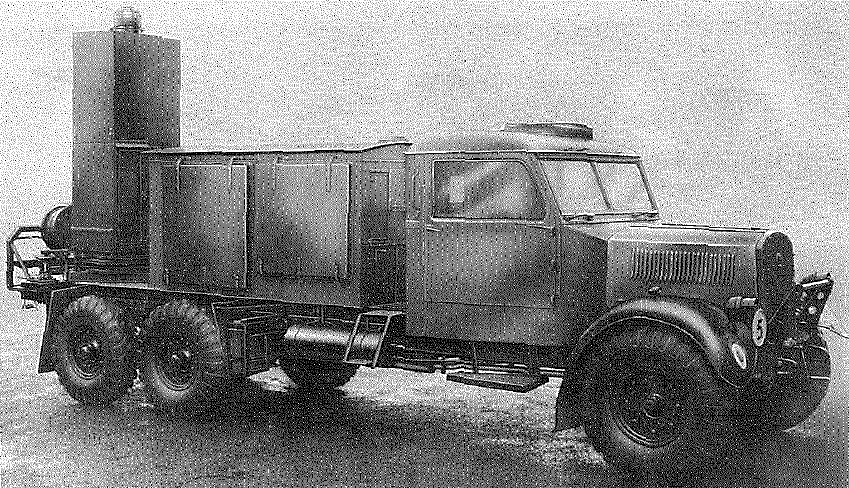

Tender, Floodlight, Ford WOT 1 & WOT 1A, 6x4, Crown Copyright^©
Manufacturer	Ford
RAF Ref No	Possibly 16A/779
Engine	Ford, petrol V8. Bore: 77.79 mm (3.0625 in), Stroke: 95.25 mm (3.75 in), Capacity: 3.62 litres (221 cu in), RAC rating - 30.01 hp. Max BHP - 60 at 2,840 rpm; Max torque - 1,800 lbs/ins at 2,000 rpm.
Transmission	Clutch - Single dry plate, 11-1/8 in dia. Gearbox - 4 speed and 1 reverse. Ratios: 1st - 6.4 to 1, 2nd - 3.1 to 1, 3rd - 1.69 to 1, 4th - 1 to 1, reverse - 7.82 to 1: Front axle - 'H' section beam. Rear axle - Full floating, spiral bevel drive, ratios 6.67 to 1. Overall ratios - 42.68 to 1, 20.6 to 11.27 to 1, 6.67 to 1, reverse - 52.16 to 1
Performance	Max Speed - not stated; MPG - 8; Radius of Action - 125 miles
Dimensions	Length - 24 ft 6 in (Platform - 15 ft 3 in); Width - 6 ft 10 in (Platform - 3 ft 6 in); Height - 11 ft 7 in (Platform - 3 ft 3 in); WB - 13 ft 8½ in (WOT 1), 14 ft 8 in (WOT 1A); BC - 3 ft 6¼ in; G/C - 9 in (centre axle); TC - 59 ft; Track - 5 ft 9 in (front), 5 ft 5 in (rear)
Weights	Unladen - not stated; Laden - 5 tons 4½ cwt.
Body	Cab - All metal enclosed type, seating driver and one passenger. Body - A platform of chequer plate supports a housing of all metal construction and a lantern tower. Various hinged flaps are fitted to the housing to operational requirements and to facilitate servicing the fitted equipment Equipment - Two lanterns are used, each comprising a tubular lamp rated at 2 kW with a parabolic trough type reflector to give a broad flat beam of light. The lanterns are house one above the other to form a lantern tower which is surmounted by a red obstruction light. The lantern tower can be slewed and tilted on its base to suit operational requirements. Power supply for the lanterns is provided by a 4 kVA 230V, single phase, 50 c/s, alternator driven by a Coventry-Climax Type E or ZE petrol engine and a control panel. A 12V lighting set is incorporated for servicing purpose. The capacity of the generating set fuel tank is 23 gallons.
Suspension	Front - Semi-elliptical , Rear - Inverted semi-elliptical trunnion mounted at centre
Brakes	Foot, mechanical on all wheels. Hand brake - mechanical on all wheels.
Wheels/Tyres	Divided type or 3-piece/10.50-16 singles on all wheels.
Notes	Purpose - To illuminate an area of aerodrome for take-off and landing operations at night. Steering - Worm and sector. Electrical equipment - 6V, negative earth. 12V (WOT 1A & 1A/1) WOT 1 withdrawn by October 1952

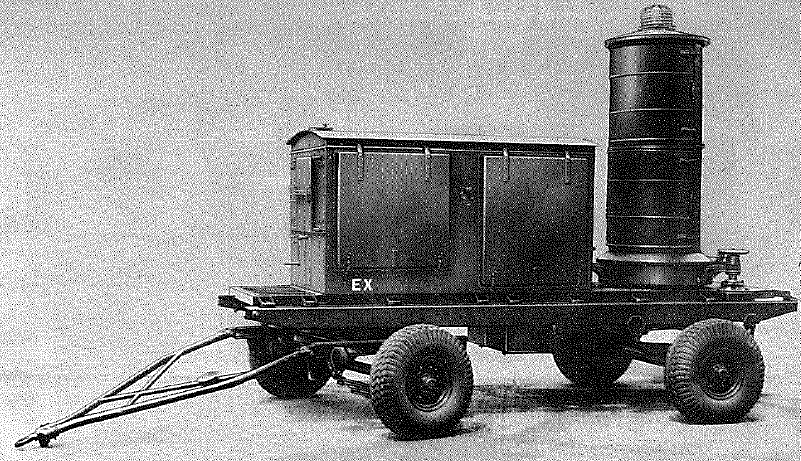

Brockhouse, 3¼ ton, 4-wheel, Mk 1 trailer, equipped with floodlight
Manufacturer	Brockhouse
RAF Ref No	16A/274
Chassis details	See entry at top of this page
Body	Body - A platform of chequer plate supports a housing of all metal construction and a lantern tower. Various hinged flaps are fitted to the housing to operational requirements and to facilitate servicing the fitted equipment Equipment - This chassis may be fitted with a 4 kW reflector type or a 5 kW dioptic (Chance) floodlight 4 kW floodlight - Two lanterns are used, each comprising a tubular lamp rated at 2 kW with a parabolic trough type reflector to give a broad flat beam of light. The lanterns are house one above the other to form a lantern tower which is surmounted by a red obstruction light. The lantern tower can be slewed and tilted on its base to suit operational requirements. Power supply for the lanterns is provided by a 4 kVA 230V, single phase, 50 c/s, alternator driven by a Coventry-Climax Type E or ZE petrol engine and a control panel. A 12V lighting set is incorporated for servicing purpose. The capacity of the generating set fuel tank is 23 gallons. 5 kW floodlight - A lantern elevated above the general level of the vehicle fitted with a 5 kW electric lamp inside an optical system designed to give a flat beam of light covering a horizontal angle of 180 degrees. The lantern mounted on a turntable on the lantern tower can be slewed through 90 degrees and tilted through 5 degrees of elevation and depression. The base of the lantern tower provided stowage for lantern spares. Power supply for the lantern is provided by a 5.5 kW 100V, DC generator driven by a Coventry-Climax Type E petrol engine and a control panel.
Dimensions	Length - 21 ft 6½ in (Platform - 15 ft 0 in); Width - 7 ft 6 in (Platform: front - 3 ft 6 in); Height - 11 ft 4 in (4 kW), 11 ft 0 in (5 kW), (Platform - 3 ft 4 in);
Weights	Laden - 3 tons 5 cwt.
Notes	Purpose - To illuminate an area of aerodrome for take-off and landing operations at night. Also shown in AP2782A, Section 20.

Brockhouse, 5 ton, 4-wheel, Mk 2 trailer, equipped with floodlight Crown Copyright^©
Manufacturer	Brockhouse
RAF Ref No	16A/1167
Chassis details	See entry at top of this page
Body	Body - A platform of chequer plate supports a housing of all metal construction and a lantern tower. Various hinged flaps are fitted to the housing to operational requirements and to facilitate servicing the fitted equipment Equipment - Two lanterns are used, each comprising a tubular lamp rated at 2 kW with a parabolic trough type reflector to give a broad flat beam of light. The lanterns are house one above the other to form a lantern tower which is surmounted by a red obstruction light. The lantern tower can be slewed and tilted on its base to suit operational requirements. Power supply for the lanterns is provided by a 4 kVA 230V, single phase, 50 c/s, alternator driven by a Coventry-Climax Type E or ZE petrol engine and a control panel. A 12V lighting set is incorporated for servicing purpose. The capacity of the generating set fuel tank is 23 gallons.
Dimensions	Length - 22 ft 0 in (Platform - 15 ft 0 in); Width - 7 ft 4 in (Platform: front - 3 ft 6 in); Height - 11 ft 4 in (Platform - 3 ft 4 in);
Weights	Laden - 3 tons 5 cwt.
Notes	Purpose - To illuminate an area of aerodrome for take-off and landing operations at night. Also shown in AP2782A, Section 20.

Van, Hot-air De-icing Plant, Commer Q2, 4x2 Crown Copyright^©
Manufacturer	Commer
RAF Ref No	Possibly 16A/456
Engine	Commer, 6 cyl, petrol, side-valve. Bore: 75mm (2.95 in), Stroke: 120mm (4.72 in), Capacity: 3.18 litres (194.04 cu in). Compression ratio - 5.7 to 1. Max BHP - 66 at 3,250 rpm; Max torque - 1,600 lbs/ins. RAC Rating - 20.92 hp.
Transmission	Clutch - Single dry plate 11 in dia. Gearbox - 4 speed and 1 reverse. Helical constant mesh. Ratios: 1st - 6.414 to 1, 2nd - 3.366 to 1, 3rd - 1.788 to 1, 4th - 1 to 1, reverse - 8.246 to 1: Front axle - Reversed Elliott Rear axle - Full-floating, spiral bevel, ratio - 6.86 to 1. Overall ratios - 44 to 1, 23.09 to 1, 12.26 to 1, 6.86 to 1, Reverse - 54.96 to 1.
Performance	Max Speed - not stated; MPG - 12; Radius of Action - 192 miles
Dimensions	Length - 15 ft 4 in (internal 8 ft 3 in); Width - 6 ft 6 in (internal - 3 ft 8 in); Height - 8 ft 0 in (internal - 4ft 2 in); WB - 10 ft 0 in; G/C - 9 in (rear axle - laden); TC - 40 ft; Track - 5 ft 4 in (front), 5 ft 3¾ in (rear)
Weights	Laden - 2 tons 19 cwt.
Body	Cab - All metal enclosed, seating driver and one passenger Body - All metal construction, metal panels, 8 in wheel arches. Hinged flap in near-side of body for access to fan drive. Hinged flap in rear of body for access to heater controls. Three-way manifold on roof for attachment of hot-air hoses. Equipment - Preheater unit, comprising centrifugal fan driven by a multi-Vee belt from a PTO on the near-side of the engine gearbox, fuel pump and magneto belt driven from the fan shaft, fuel burner and combustion chamber. Three 45 ft lengths of 7 in diameter fabric hoses with fishtail nozzles are stowed on the roof when not in use. Delivery capacity 4,000 cu ft of air per minute. Working temperature 525^o F. Fuel consumption 3.2 gallons per hour.
Suspension	Semi elliptical, front and rear with hydraulic shock absorbers.
Brakes	Foot, hydraulic on all wheels. Hand brake - mechanical on rear wheels.
Wheels/Tyres	2 piece split disc type 6.00 x 16/10.5-16 singles
Notes	To provide a supply of hot air for de-frosting propellers and wing surfaces, drying out aircraft and warming external surfaces of the engine. Steering - Worm and wheel type. Also shown in AP2782A, Section 32.

Tender, Hydrogen cylinder, Dodge VK62, 4x2
Manufacturer	Dodge (US)
RAF Ref No	Unknown
Engine	Dodge, 6 cyl, petrol. Bore: 3¾ in, Stroke: 5 in, Capacity: 3.74 litres. Max BHP - 91 at 2,800 rpm; Max torque - 2,880 lbs/ins at 800 rpm. Compression ration - 5.85 to 1. RAC Rating - 33.7 hp.
Transmission	Clutch - Single dry plate, 13 in dia. Gearbox - 5 speed and 1 reverse. Ratios: 1st - 6.4 to 1, 2nd - 3.1 to 1, 3rd - 2.4 to 1, 4th - 1 to 1, reverse - not stated: Front axle - Reverse Elliott 'I' beam Rear axle - Full-floating Hypoid 7.166 to 1 Overall ratios - 56.1 to 1, 32.4 to 1, 17.7 to 1, 10.9 to 1, 7.4 to 1, Reverse - 45.1 to 1.
Performance	Max Speed - not stated; MPG - not stated; Radius of Action - not stated
Dimensions	Length - 24 ft 0 in; Width - 7 ft 6 in; Height - 6 ft 11 in (top of cab), 7 ft 6 in (laden cylinders); WB - 15 ft 8 in; G/C - 9¾ (rear axle); TC - 68 ft; Track - 5 ft 9 in (front), 5 ft 10½ (rear)
Weights	Unladen - 4 tons 4 cwt; Laden - not stated.
Body	Body - Flat platform incorporating low wheel arches. Hydrogen cylinder cradles mounted on special steel bearers carried on chassis frame. Cab - All steel cab, seating two, non-detachable top. Special fitments - RAF towing hook. Modified by addition of vacuum tank for single line vacuum trailer brake connection.
Suspension	Semi-elliptical front and rear, with helper springs at rear
Brakes	Foot, hydraulic vacuum servo assisted on all wheels. Hand brake - mechanical on transmission. Trailer connections - single line vacuum.
Wheels/Tyres	Steel disc wheels 6.00-20/9.00-20
Notes	Steering - Left hand drive, worm and sector. Electrical equipment - 6V.

Brockhouse, 4-wheel, hydrogen cylinder, trailer
Manufacturer	Brockhouse
RAF Ref No	Unknown
Chassis details	See entry at top of this page
Body	Flat platform incorporating low wheel arches. Hydrogen cylinder cradles mounted on special steel bearers carried on chassis frame.
Dimensions	Length (with tow-bar) - 22 ft 0 in; Width - 7 ft 6 in; Height - 7 ft 0½ in;
Weights	Laden - 5 tons 17¾ cwt:
Notes

Eagle, 5 ton, 4-wheel, hydrogen cylinder, trailer Crown Copyright^©
Manufacturer	Eagle
RAF Ref No	16A/343
Chassis details	See entry at top of this page
Body	Flat platform incorporating low wheel arches. Hydrogen cylinder cradles mounted on special steel bearers carried on chassis frame.
Dimensions	Length (with tow-bar) - 22 ft 0 in; Width - 7 ft 6 in; Height - 7 ft 0½ in;
Weights	Laden - 5 tons 17¾ cwt:
Notes	Also shown in AP2782A, Section 32.

Brockhouse, 3¼ ton, 4-wheel, Mk 1 trailer, equipped with landmark beacon Crown Copyright^©
Manufacturer	Brockhouse
RAF Ref No	16A/276
Body	Body - A platform of chequer plate supports a three compartment body of all metal construction surmounted by a four-sided glazed beacon lantern. Various hinged flaps and removable panels are fitted to suit operational requirements and to facilitate servicing the fitted equipment. Equipment - A beacon of eight 400-Watt neon tubes, mounted in the lantern, is controlled by a flasher unit which enables a signal to be flashed in Morse characters. Adjustments to the flasher unit permit signal variations in a combination of any two letters. Power supply for the beacon is provided by a 4 kVA 230V, single phase, 50 c/s, alternator driven by a Coventry-Climax Type E or ZE petrol engine or a Ford 10 hp petrol engine and a control panel. A 4 kVA transformer, adjustable to suit supplies to range from 190-230V, permits the alternative use of an external source of power supply. The neon tubes are individually supplied by eight transformers which are housed in a compartment forward of the generator and a smaller compartment houses the flasher unit. A 12V lighting set is incorporated for servicing purpose. The capacity of the generating set fuel tank is 23 gallons.
Dimensions	Length - 21 ft 6½ in (Platform - 15 ft 5 in); Width - 7 ft 6 in (Platform: front - 3 ft 10 in, rear - 4 ft 7 in); Height - 12 ft 4 in (Platform - 3 ft 2 in);
Weights	Unladen - not stated; Laden -3 tons 13 cwt.:
Notes	Purpose - To emit a red flashing signal in Morse to provide night flying aircraft with a landmark. Also shown in AP2782A, Section 20.

Brockhouse, 5 ton, 4-wheel, Mk 2 trailer, equipped with landmark beacon
Manufacturer	Brockhouse
RAF Ref No	16A/1170
Chassis details	See entry at top of this page
Body	Body - A platform of chequer plate supports a three compartment body of all metal construction surmounted by a four-sided glazed beacon lantern. Various hinged flaps and removable panels are fitted to suit operational requirements and to facilitate servicing the fitted equipment. Equipment - A beacon of eight 400-Watt neon tubes, mounted in the lantern, is controlled by a flasher unit which enables a signal to be flashed in Morse characters. Adjustments to the flasher unit permit signal variations in a combination of any two letters. Power supply for the beacon is provided by a 4 kVA 230V, single phase, 50 c/s, alternator driven by a Coventry-Climax Type E or ZE petrol engine or a Ford 10 hp petrol engine and a control panel. A 4 kVA transformer, adjustable to suit supplies to range from 190-230V, permits the alternative use of an external source of power supply. The neon tubes are individually supplied by eight transformers which are housed in a compartment forward of the generator and a smaller compartment houses the flasher unit. A 12V lighting set is incorporated for servicing purpose. The capacity of the generating set fuel tank is 23 gallons.
Dimensions	Length - 22 ft 0 in (Platform - 15 ft 5 in); Width - 7 ft 4 in (Platform: front - 3 ft 10 in, rear - 4 ft 7 in); Height - 12 ft 4 in (Platform - 3 ft 2 in);
Weights	Unladen - not stated; Laden -3 tons 13 cwt.:
Notes	Purpose - To emit a red flashing signal in Morse to provide night flying aircraft with a landmark. Also shown in AP2782A, Section 20.

Eagle, 5 ton, 4-wheel, trailer equipped as landmark beacon Crown Copyright^©
Manufacturer	Eagle
RAF Ref No	16A/1171
Chassis details	See entry at top of this page
Body	Body - Sheet steel and channel section construction, consisting of three housings mounted on a chequer plate platform, the front housing contain a flasher unit, the centre housing contains the transformer panels and the rear housing contains the petrol-electric generating set and is surmounted by the beacon. Various hinged flaps provide access to the equipment. Equipment: - Beacon - 3 kW lantern formed by eight 400-Watt neon tubes with their resistances, Tesla coils, chokes and condensers Generator - 5 kVA (230V at 1,500 rpm), single phase, direct coupled to an exciter (106V, 3.22A) Engine - Coventry-Climax Type E or ZE petrol engine or Ford 10 hp petrol engine, water-cooled. The capacity of the fuel tank is 23 gallons. Transformer - 4 kVA single phase, tapped primary suitable for use of external supplies ranging from 190 to 2830V AC. Flasher unit - A cam operated contacter unit driven by GEC Type AS 37 motor (1/15 hp qt 1,450 rpm). Adjustments to the flasher unit permit signal variations in a combination of any two letters in Morse. Auxiliary Generator Set - 12V Lucas, Type C45 generator, belt driven; regulator, Lucas Type RF91; battery, NIFE Type F5H (10 x 1.2V cells).
Dimensions	Length - 21 ft 6 in; Width - 7 ft 4 in; Height - 12 ft 3 in;
Weights	Unladen - not stated; Laden -3 tons 13 cwt.:
Notes	Purpose - For guidance of aircraft at night, the red beacon flashed a pair of selected letters in Morse code. Power is supplied by the petrol-electric generating set or from an external AC source. Also shown in AP2782A, Section 20.

Brockhouse, 3¼ ton, 4-wheel Mk I trailer equipped with office body Crown Copyright^©
Manufacturer	Brockhouse
RAF Ref No	Unknown
Chassis details	See entry at top of this page
Body	Body - Light section steel frame, panelled with sheet metal. Double access doors in each side at centre, detachable steps stowed under body. Two hinged windows in each end of the body. Hinged ventilation panel over each door, extractor fans over windows. A canvas annexe can be erected on each side on a frame supported in sockets on the front and rear bulkheads. Equipment - A desk for two persons fitted at each end of the body, filing cabinets, tables and chairs for use in the annexe. Lighting 230V from external source of supply, cable drum fitted under body.
Dimensions	Length - 15 ft 6 in (with drawbar - 21 ft 6½ in, internal - 14 ft 10 in); Width - 7 ft 0 in (internal - 6 ft 10 in); Height - 10 ft 4 in (internal - 6 ft 5 in);
Weights	Laden - 3 tons 3¼ cwt.
Notes	Also shown in AP2782A, Section 25 A similar body was also fitted to Fordson WOT 1 6x4 chassis.

Brockhouse, 5 ton, 4-wheel Mk II trailer equipped with office body
Manufacturer	Brockhouse
RAF Ref No	Unknown
Chassis details	See entry at top of this page
Body	Body - Light section steel frame, panelled with sheet metal. Double access doors in each side at centre, detachable steps stowed under body. Two hinged windows in each end of the body. Hinged ventilation panel over each door, extractor fans over windows. A canvas annexe can be erected on each side on a frame supported in sockets on the front and rear bulkheads. Equipment - A desk for two persons fitted at each end of the body, filing cabinets, tables and chairs for use in the annexe. Lighting 230V from external source of supply, cable drum fitted under body.
Dimensions	Length - 15 ft 6 in (with drawbar - 21 ft 6½ in, internal - 14 ft 10 in); Width - 7 ft 0 in (internal - 6 ft 10 in); Height - 10 ft 4 in (internal - 6 ft 5 in);
Weights	Laden - 3 tons 6 cwt.
Notes	Also shown in AP2782A, Section 25

Eagle, 5 ton, 4-wheel trailer equipped with office body
Manufacturer	Brockhouse
RAF Ref No	Unknown
Chassis details	See entry at top of this page
Body	Body - Light section steel frame, panelled with sheet metal. Double access doors in each side at centre, detachable steps stowed under body. Two hinged windows in each end of the body. Hinged ventilation panel over each door, extractor fans over windows. A canvas annexe can be erected on each side on a frame supported in sockets on the front and rear bulkheads. Equipment - A desk for two persons fitted at each end of the body, filing cabinets, tables and chairs for use in the annexe. Lighting 230V from external source of supply, cable drum fitted under body.
Dimensions	Length - 15 ft 6 in (with drawbar - 21 ft 6½ in, internal - 14 ft 10 in); Width - 7 ft 0 in (internal - 6 ft 10 in); Height - 10 ft 4 in (internal - 6 ft 5 in);
Weights	Laden - not stated.
Notes	Also shown in AP2782A, Section 25

7 kW power and charging body on Brockhouse Mk I, 4-wheel trailer
Manufacturer	Brockhouse
RAF Ref No	Unknown
Chassis details	See entry at top of this page
Body	Body - All metal construction, except floor. Canvas curtains to form awning. Detachable centre panel in near-side, for accumulator hatch. Double door at rear. Body wired for 230V lighting. Equipment - One 9 kVA petrol/electric generating set. Metal rectifier. Switchboard. Two accumulator charging boards. Two charging benches.
Dimensions	Length - 15 ft 6 in (internal - 14 ft 10 in); Width - 7 ft 0 in (internal - 6 ft 10 in); Height - 10 ft 2 in (internal - 6 ft 5 in);
Weights	Laden - 3 tons 12¼ cwt:
Notes	Similar body also fitted to Fordson WOT 1, 6x4 chassis.

7 kW power and charging body on Eagle 5 ton, 4-wheel trailer
Manufacturer	Eagle
RAF Ref No	Unknown
Chassis details	See entry at top of this page
Body	Body - All metal construction, except floor. Canvas curtains to form awning. Detachable centre panel in near-side, for accumulator hatch. Double door at rear. Body wired for 230V lighting. Equipment - One 9 kVA petrol/electric generating set. Metal rectifier. Switchboard. Two accumulator charging boards. Two charging benches.
Dimensions	Length - 15 ft 6 in (internal - 14 ft 10 in); Width - 7 ft 0 in (internal - 6 ft 10 in); Height - 10 ft 2 in (internal - 6 ft 5 in);
Weights	Laden - 3 tons 12¼ cwt:
Notes

7 kW power and charging body on Brockhouse Mk II, 4-wheel trailer
Manufacturer	Brockhouse
RAF Ref No	Unknown
Chassis details	See entry at top of this page
Body	Body - All metal construction, except floor. Canvas curtains to form awning. Detachable centre panel in near-side, for accumulator hatch. Double door at rear. Body wired for 230V lighting. Equipment - One 9 kVA petrol/electric generating set. Metal rectifier. Switchboard. Two accumulator charging boards. Two charging benches.
Dimensions	Length - 15 ft 6 in (internal - 14 ft 10 in); Width - 7 ft 0 in (internal - 6 ft 10 in); Height - 10 ft 2 in (internal - 6 ft 5 in);
Weights	Laden - 3 tons 12¼ cwt:
Notes

7 kW power and charging body on Ford WOT 1
Manufacturer	Ford
RAF Ref No	Unknown
Engine	Ford, petrol V8. Bore: 77.79 mm (3.0625 in), Stroke: 95.25 mm (3.75 in), Capacity: 3.62 litres (221 cu in), RAC rating - 30.01 hp. Max BHP - 60 at 2,840 rpm; Max torque - 1,800 lbs/ins at 2,000 rpm.
Transmission	Clutch - Single dry plate, 11-1/8 in dia. Gearbox - 4 speed and 1 reverse. Ratios: 1st - 6.4 to 1, 2nd - 3.1 to 1, 3rd - 1.69 to 1, 4th - 1 to 1, reverse - 7.82 to 1: Front axle - 'H' section beam. Rear axle - Full floating, spiral bevel drive, ratios 6.67 to 1. Overall ratios - 42.68 to 1, 20.6 to 11.27 to 1, 6.67 to 1, reverse - 52.16 to 1
Performance	Max Speed - not stated; MPG - 8; Radius of Action - 125 miles
Dimensions	Length - not stated (internal - 14 ft 10 in); Width - not stated (internal - 6 ft 10 in); Height - not stated (internal - 6 ft 5 in); WB - 13 ft 8½ in; BC - 3 ft 6¼ in; G/C - 9 in (centre axle); TC - 59 ft; Track - 5 ft 9 in (front), 5 ft 5 in (rear)
Weights	Unladen - not stated; Laden - not stated.
Body	Body - All metal construction, except floor. Canvas curtains to form awning. Detachable centre panel in near-side, for accumulator hatch. Double door at rear. Body wired for 230V lighting. Equipment - One 9 kVA petrol/electric generating set. Metal rectifier. Switchboard. Two accumulator charging boards. Two charging benches.
Suspension	Front - Semi-elliptical , Rear - Inverted semi-elliptical trunnion mounted at centre
Brakes	Foot, mechanical on all wheels. Hand brake - mechanical on all wheels.
Wheels/Tyres	Divided type or 3-piece/10.50-16 singles on all wheels.
Notes	Steering - Worm and sector. Electrical equipment - 6V, negative earth.

Stores Body (House Type) on Brockhouse 4 wheeled Mk I trailer chassis Crown Copyright^©
Manufacturer	Brockhouse
RAF Ref No	16A/354
Chassis details	See entry at top of this page
Body	Body - Frame work of mild steel channelled sections, electrically welded. Sides, ends and roof panelled with sheet metal, floor of corrugated sheet metal. Door at each end, folding step beneath the door at the front end. Equipment - Bin rails fitted to each side of the interior to accommodate RAF pattern storage bins. Bulkhead light, 230V external source of supply.
Dimensions	Length - 15 ft 6 in (with drawbar - 21 ft 6½ in, internal - 14 ft 10 in); Width - 7 ft 3 in (internal - 6 ft 10 in); Height - 10 ft 6 in (internal - 6 ft 5 in);
Weights	Unladen - 2 tons 5 cwt; Laden - not stated:
Notes	Also shown in AP2782A, Section 31

Stores Body (House Type) on Brockhouse 4 wheeled Mk II trailer chassis
Manufacturer	Brockhouse
RAF Ref No	16A/482
Chassis details	See entry at top of this page
Body	Body - Frame work of mild steel channelled sections, electrically welded. Sides, ends and roof panelled with sheet metal, floor of corrugated sheet metal. Door at each end, folding step beneath the door at the front end. Equipment - Bin rails fitted to each side of the interior to accommodate RAF pattern storage bins. Bulkhead light, 230V external source of supply.
Dimensions	Length - 15 ft 6 in (with drawbar - 21 ft 6½ in, internal - 14 ft 10 in); Width - 7 ft 3 in (internal - 6 ft 10 in); Height - 10 ft 6 in (internal - 6 ft 5 in);
Weights	Unladen - 2 tons 5 cwt; Laden - not stated:
Notes	Also shown in AP2782A, Section 31

Stores Body (House Type) on Eagle 5 ton, 4-wheel trailer
Manufacturer	Eagle
RAF Ref No	Unknown
Chassis details	See entry at top of this page
Body	Body - Frame work of mild steel channelled sections, electrically welded. Sides, ends and roof panelled with sheet metal, floor of corrugated sheet metal. Door at each end, folding step beneath the door at the front end. Equipment - Bin rails fitted to each side of the interior to accommodate RAF pattern storage bins. Bulkhead light, 230V external source of supply.
Dimensions	not stated
Weights	not stated
Notes

Stores Body (House Type) on Ford WOT 1, 6x4
Manufacturer	Ford
RAF Ref No	Unknown
Engine	Ford, petrol V8. Bore: 77.79 mm (3.0625 in), Stroke: 95.25 mm (3.75 in), Capacity: 3.62 litres (221 cu in), RAC rating - 30.01 hp. Max BHP - 60 at 2,840 rpm; Max torque - 1,800 lbs/ins at 2,000 rpm.
Transmission	Clutch - Single dry plate, 11-1/8 in dia. Gearbox - 4 speed and 1 reverse. Ratios: 1st - 6.4 to 1, 2nd - 3.1 to 1, 3rd - 1.69 to 1, 4th - 1 to 1, reverse - 7.82 to 1: Front axle - 'H' section beam. Rear axle - Full floating, spiral bevel drive, ratios 6.67 to 1. Overall ratios - 42.68 to 1, 20.6 to 11.27 to 1, 6.67 to 1, reverse - 52.16 to 1
Performance	Max Speed - not stated; MPG - 8; Radius of Action - 125 miles
Dimensions	Length - not stated (internal - 14 ft 10 in); Width - 7 ft 3 in (internal - 6 ft 10 in); Height - 10 ft 6 in (internal - 6 ft 5 in); WB - 13 ft 8½ in; BC - 3 ft 6¼ in; G/C - 9 in (centre axle); TC - 59 ft; Track - 5 ft 9 in (front), 5 ft 5 in (rear)
Weights	Unladen - not stated; Laden - not stated.
Body	Body - Frame work of mild steel channelled sections, electrically welded. Sides, ends and roof panelled with sheet metal, floor of corrugated sheet metal. Door at each end, folding step beneath the door at the front end. Equipment - Bin rails fitted to each side of the interior to accommodate RAF pattern storage bins. Bulkhead light, 230V external source of supply.
Suspension	Front - Semi-elliptical , Rear - Inverted semi-elliptical trunnion mounted at centre
Brakes	Foot, mechanical on all wheels. Hand brake - mechanical on all wheels.
Wheels/Tyres	Divided type or 3-piece/10.50-16 singles on all wheels.
Notes	Steering - Worm and sector. Electrical equipment - 6V, negative earth.

Tender, Torpedo Carrying, Bedford Trailer Appliance Crown Copyright^©
RAF Ref No	not stated
Chassis	Tractor unit - Bedford OXC, details of which can be found in Group 3. Semi-trailer - Tasker drop-frame semi-trailer.
Body	Body - Trailer is fitted with a superstructure to carry either: - Five Mk XII torpedoes Four Mk XIII torpedoes
Dimensions	Vehicle - Length - 35 ft 1 in; Width - 9 ft 1 in; Height - 7 ft 1 in. Trailer - Length - 21 ft 6 in; Width - 9 ft 1 in; Height - not stated.
Weights	Unladen - 5 tons 2¾ cwt Laden (4 x Mk XIII) - 9 tons 13 cwt, (5 x Mk XII) - 9 tons 17 cwt::
Suspension	not stated
Tyres	Four 10.50-20 singles (in-line)
Brakes	not stated
Notes

Tender, Workshop, Crossley, 3 ton, 4x4 Crown Copyright^©
Manufacturer	Crossley
Engine	Crossley, 4 cyl, petrol, OHV. Bore: 110mm (4.31 in), Stroke: 140 mm (5.5 in), Capacity: 5.266 litres (321.35 cu in). Max BHP - 90 at 2,500 rpm, (governed to 2,500); Max torque - 2,770 lbs/ins at 1,500 rpm. RAC Rating - 29.8 hp
Transmission	Gearbox (Main) - 4 speed and 1 reverse. Ratios: 1st - 5.34 to 1, 2nd - 2.985 to 1, 3rd - 1.71 to 1, 4th - 1 to 1, reverse - 4.7 to 1: Auxiliary Box - 2 speed with power take off. Ratios - 1 to 1 (High) and 2.15 to 1 (Low). Front axle - Overhead worm gear, 7.75 to 1. Torque transmission to hubs through constant velocity joints. Rear axle - Overhead worm gear, 7.75 to 1. Full-floating hubs. Overall ratios (High) - 41.38 to 1, 23.13 to 1, 13.25 to 1, 7.75 to 1, Reverse - 36.42 to 1. Overall ratios (Low) - 88.96 to 1, 49.73 to 1, 28.49 to 1, 16.66 to 1, Reverse - 78.3 to 1.
Suspension	Semi elliptical, front and rear
Performance	Max Speed - not stated; MPG - 7; Radius of Action - 180 miles
Dimensions	Length - 20 ft 1 in (internal 15 ft 2 in); Width - 7 ft 6 in (internal - 7 ft 4 in); Height - 12 ft 0 in (internal - 7 ft 5 in); WB - 11 ft 6 in; G/C - 1 ft 2 in (laden); TC - 55 ft 0 in; Track - 6 ft 2¾ in (front), 5 ft 10-5/8 in (rear)
Weights	Unladen - not stated; Laden - 7 tons 1¾ cwt.
Equipment	Cab - All enclosed forward control type. Body -Van type with hinged flaps along the sides which can be opened out to increase the effective floor space as shown above. Rear entrance door . Fitted with two work benches. Main items of Equipment - 9 kVA 230V AC generating set with rectifier and switchboard. AID compressor (Type D2) with air receiver, air filter and inhibitor. 4½ in motorised lathe Pillar drill Bench drill 4½ in vice DW grinder
Brakes	Foot, hydraulic vacuum servo assisted on all wheels. Hand brake - mechanical (cable operated) on all wheels. Trailer brake connections - Single line vacuum.
Wheels/Tyres	8.37-20 two-piece/12.00-20 low pressure
Notes	Steering - Cam and lever.

Tender, Workshop, Fordson WOT 1, 3 ton, 6x4,
Manufacturer	Ford
RAF Ref No	Unknown
Engine	Ford, petrol V8. Bore: 77.79 mm (3.0625 in), Stroke: 95.25 mm (3.75 in), Capacity: 3.62 litres (221 cu in), RAC rating - 30.01 hp. Max BHP - 60 at 2,840 rpm; Max torque - 1,800 lbs/ins at 2,000 rpm.
Transmission	Clutch - Single dry plate, 11-1/8 in dia. Gearbox - 4 speed and 1 reverse. Ratios: 1st - 6.4 to 1, 2nd - 3.1 to 1, 3rd - 1.69 to 1, 4th - 1 to 1, reverse - 7.82 to 1: Front axle - 'H' section beam. Rear axle - Full floating, spiral bevel drive, ratios 6.67 to 1. Overall ratios - 42.68 to 1, 20.6 to 11.27 to 1, 6.67 to 1, reverse - 52.16 to 1
Performance	Max Speed - not stated; MPG - 8; Radius of Action - 125 miles
Dimensions	Length - not stated (internal 15 ft 2 in); Width - not stated (internal - 7 ft 4 in); Height - not stated (internal - 7 ft 5 in); WB - 13 ft 8½ in; BC - 3 ft 6¼ in; G/C - 9 in (centre axle); TC - 59 ft; Track - 5 ft 9 in (front), 5 ft 5 in (rear)
Weights	Unladen - not stated; Laden - not stated.
Body	Body -Van type with hinged flaps along the sides which can be opened out to increase the effective floor space as shown above. Rear entrance door . Fitted with two work benches. Main items of Equipment - 9 kVA 230V AC generating set with rectifier and switchboard. AID compressor (Type D2) with air receiver, air filter and inhibitor. 4½ in motorised lathe Pillar drill Bench drill 4½ in vice DW grinder
Suspension	Front - Semi-elliptical , Rear - Inverted semi-elliptical trunnion mounted at centre
Brakes	Foot, mechanical on all wheels. Hand brake - mechanical on all wheels.
Wheels/Tyres	Divided type or 3-piece/10.50-16 singles on all wheels.
Notes	Steering - Worm and sector. Electrical equipment - 6V, negative earth.

Tender, Workshop, Leyland Retriever, 3 ton, 6x4
Manufacturer	Leyland
RAF Ref No	Unknown
Engine	Leyland,4 cyl, petrol. Bore: 115.8 mm (4.4725 in), Stroke: 139.7 mm (5.5 in), Capacity: 5.90 litres (359.7 cu in), Max BHP - 73 at 2,120 rpm (governed at 2,150 rpm); Max torque - 3,120 lbs/ins at 1,150 rpm.
Transmission	Gearbox - 4 speed and 1 reverse. Ratios: 1st - 4.78 to 1, 2nd - 3.1 to 1, 3rd - 1.74 to 1, 4th - 1 to 1, reverse - 5.57 to 1: Auxiliary gearbox- Ratios - 1.1 to 1 and 2.22 to 1. Rear axle - Full floating, overhead worm drive, ratios 7.5 to 1. Overall ratios (High) - 35.85 to 1, 22.5 to 13.0 to 1, 7.5 to 1, reverse - 41.8 to 1 Overall ratios (Low)- 79.6 to 1, 49.9 to 28.9 to 1, 16.6 to 1, reverse - 92.8 to 1
Performance	Max Speed - not stated; MPG - not stated; Radius of Action - not stated
Dimensions	Length - not stated (internal 15 ft 2 in); Width - not stated (internal - 7 ft 4 in); Height - not stated (internal - 7 ft 5 in); WB - 13 ft 0 in; BC - 4 ft 0 in; G/C - 11½ in (rear axle), 17½ (belly); TC - 55 ft; Track - 5 ft 11½ in (front), 5 ft 7¾ in (rear)
Weights	Unladen - 4 tons 6¼ cwt; Laden - 8 tons 10 cwt.
Body	Body -Van type with hinged flaps along the sides which can be opened out to increase the effective floor space as shown above. Rear entrance door . Fitted with two work benches. Main items of Equipment - 9 kVA 230V AC generating set with rectifier and switchboard. AID compressor (Type D2) with air receiver, air filter and inhibitor. 4½ in motorised lathe Pillar drill Bench drill 4½ in vice DW grinder
Suspension	Front - Semi-elliptical , Rear - Inverted semi-elliptical pivoted at centre
Brakes	Foot, hydraulic servo assisted on all wheels. Hand brake - mechanical on four rear wheels. Trailer brake connection - Single line vacuum (not fitted to all)
Tyres	9.00-20 on all wheels.
Notes	Steering - Marles type

Tasker semi-trailer, 7 ton, 2-wheel, drop frame, equipped as GS Workshop Crown Copyright^©
Manufacturer	Tasker
RAF Ref No	16A/1098
Body	Body -The body framework is of steel and timber construction, gusseted and plated where necessary. The roof is double panelled and fitted with approved insulation material. Ends and sides are single panelled, protected by mild steel plate where necessary. The floor is of timber, strengthened for mounting machine tools and fitted with metal tread strips. Windows have blackout attachments. Flaps and platforms fitted to the centre bays open to increase the working area. Doors at the front and offside front give access and ventilation to the generating set. Two screw jacks at the rear end of the chassis and adjustable legs at the front, provide stability to the trailer when the workshop is in use. Main items of Equipment - 9 kVA, 230V, 50 c/s, single phase, AC generating set with Meadows or Coventry Climax petrol engine. Alternator control panel with battery charging panel. Air compressor set, Type F; Capacity 10 cu in/min, with suitable reduction valves for air pressures 0-155 lbs/sq in. Lathe, 4½ in, gap bed General Purpose drilling machine Drilling machine, Pillar type, 7/8 in drill capacity. Grinding machine, double wheel, 7 in diameter wheels. Work bench fitted with 4 in engineer's vice Lighting, 230V supplied from generator, 12V emergency from batteries.
Dimensions	Length - 20 ft 0 in; Width - 7 ft 6 in (Chassis frame - 5 ft 0 in); Height - 9 ft 6 in (Chassis frame, rear - 2 ft 8 in, front - 4 ft 6 in).
Weights	Laden - 5 tons 4¾ cwt:
Notes	Also shown in AP2782A, Section 24.

Brockhouse, 3¼-ton, 4-wheel, Mk I trailer chassis Crown Copyright^©
RAF Ref No	not stated
Construction	Side members, front cross members and fore carriage of rolled steel channel, two tubular cross members of chrome molybdenum at rear of chassis. Laminated spring mounted drawbar to the rear cross member.
Suspension	Independent springing, torsion bar type, each wheel attached to a torque shaft by an oscillating arm. Torque shafts of silico-manganese steel housed in tubular cross members. Rubber bearer blocks, fitted to the chassis limit the suspension movement and support the chassis in the event of suspension failure.
Wheels & Tyres	6.00x13 2-piece wheels with eight 7/8 in studs. 10.50-13 single tyres.
Steering	Turntable, limited lock - 27 deg each way.
Brakes	Hydraulic on al wheels, vacuum servo operated. A parking brake lever is fitted on the nearside.
Dimensions	Overall length (towbar horizontal) - 21 ft 6½ in; Length of frame - 15 ft 6¼ in; Overall Width - 7 ft 6 in; Frame width - 3 ft 10 in (front), 4 ft 6-5/8 in (rear) Height (frame laden) - 3 ft 0½ in; WB - 8 ft 11 in; TC - 45 ft; Track - 6 ft 5½ in:
Notes	Also shown in AP2782A, Section 15.

Brockhouse, 5-ton, 4-wheel, Mk II trailer chassis Crown Copyright^©
RAF Ref No	16A/1116
Suspension	Semi-elliptical, front and rear:
Wheels & Tyres	6.00x13 2-piece wheels with eight 1 in studs. 10.50-13 HD single tyres.
Steering	Turntable
Brakes	Single line vacuum system operated from vacuum tank on motive unit. Braking on rear wheels only. Separate hand parking brake on the nearside for applying brakes when disconnected from tractor.
Dimensions	Overall length (tow-bar horizontal) - 21 ft 6½ in; Length of frame - 15 ft 6¼ in; Overall Width - 7 ft 6 in; Frame width - 3 ft 10 in (front), 4 ft 6-5/8 in (rear) Height (frame laden) - 3 ft 0½ in; WB - 8 ft 11 in; G/C - 7½ in (front springs); TC - 45 ft; Track - 6 ft 7 in: Centre towing eye to turntable pivot - 9 ft 1 in
Towing equipment	Front - Triangular drawbar attached by hinge pins to turntable , swivel towing eye. Rear - Towing hook mounted on laminated spring drawbar.
Notes	Also shown in AP2782A, Section 15.
