Item |
Vehicle |
|
1 |
Truck, Lift, Fork, Diesel,
12000/24/12 Ransomes and Rapier 12/14 |
|
2 |
Truck, Lift, Fork, electric,
2000/20/12, Conveyancer Mk 25 B |
|
3 |
Truck, Lift, Fork, electric,
2000/20/12, Conveyancer Mk 25B |
|
4 |
Truck, Lift, Fork, Diesel,
12000/24/12, Shelvoke and Drewry |
|
5 |
Truck, Lift, Fork, diesel,
4000/20/12, Coventry Climax, FTF412 |
|
6 |
Truck, Lift, Fork, diesel,
6000/20/14, Coventry Climax Skyzone |
|
7 |
Truck, Lift, Fork, diesel,
6000/20/9, Coventry Climax, model WUTFF/461/1 |
|
8 |
Truck, Lift, Fork, diesel,
6000/20/12, Conveyancer TC6PD |
|
9 |
Truck, Lift, Fork, diesel,
6000/36/14, Conveyancer, TC6, series V |
|
10 |
Truck, Lift, Fork, electric,
6000 lb, Eaton, Yale & Towne, model K51-SAT-67 |
|
11 |
Truck, Lift, Fork , Self-Side
Loading, Lancer, 4x2
Truck, Fork Lift, Self-Side
Loading, Diesel Engine Driven , 6-ton, Mk 1, Lancer Boss |
|
12 |
Truck, Fork Lift, Self-Side
Loading, Diesel Engine Driven , 6-ton, Mk 1A, Lancer Boss |
|

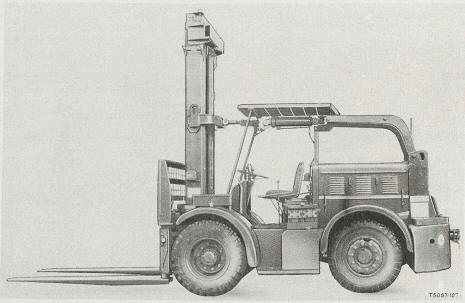

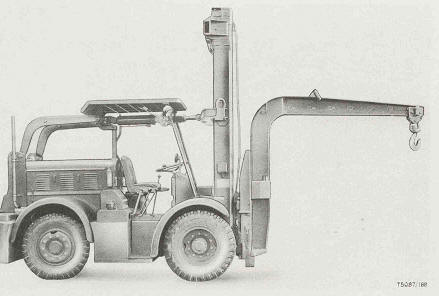

Truck, Lift, Fork, Diesel,
12000/24/12 Ransomes and Rapier 12/14
Crown Copyright©
|
|
RAF Ref No |
16A/2112 (no side-shift); 16A/2242 (with side-shift): |
|
Engine |
Perkins, diesel, 6-cyl, liquid cooled, 70 bhp @ 2,000
rpm. |
|
Gearbox |
|
|
Performance |
Max Speed - ; MPG - ; Radius of Action - : |
|
Dimensions |
Length -
12ft 10in (forks folded), 16ft 10in (forks in position); Width - 7ft 4in;
Height - 16ft 3in (forks raised), 10ft 5in (forks
lowered); WB - 7ft 9in; G/C - 6in; TC - : |
|
Weights |
Unladen - 8 tons 14 cwt; Laden - : |
|
Body |
|
|
Tyres |
|
|
Notes |
To lift, carry and stack loads within capacity of
vehicle. Driver operated (seated), heavy
duty, diesel engined fork truck, Capacity: 12,000 lb at 24in
load centre. The truck can be used as a mobile crane after the
forks have been folded back and either of two jib attachments
provided have been fitted. The truck is for use in
Maintenance Command only. |
|

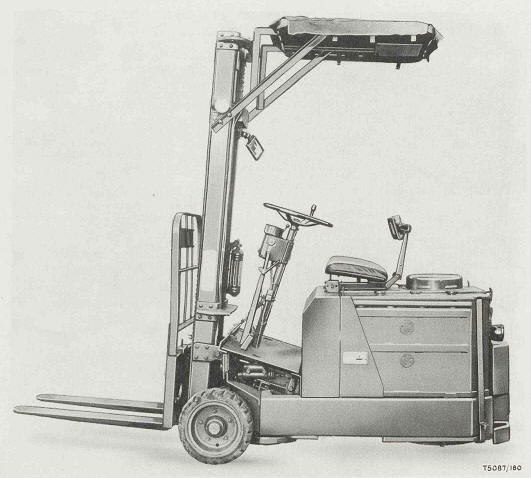

Truck, Lift, Fork, electric,
2000/20/12, Conveyancer Mk 25 B
 Crown Copyright©
|
|
RAF Ref No |
16A/2233 |
|
Electrical Equipment |
Split 36V battery unit, 252 amp hours at the 5 hour
rate; a 2¼ hp series wound traction motor and a 3¾ hp compound wound
pump motor. |
|
Gearbox |
|
|
Performance |
Max Speed - ; MPG - ; Radius of Action - : |
|
Dimensions |
Length -
9ft 2½in (with forks), 6ft 2½in (without forks); Width - 3ft 0in;
Height - 13ft 10 (mast raised), 7ft 10in (mast
lowered); WB - 4ft 0in; G/C - 2½in (under mast); TC - : |
|
Weights |
Unladen - 4,700 lb; Laden - : |
|
Body |
|
|
Tyres |
|
|
Notes |
To lift, carry and stack palleted loads.
Driver operated (seated), heavy duty, hydraulically operated,
electrically powered fork truck. Rear wheel steering.
One forward and one reverse speed. |
|

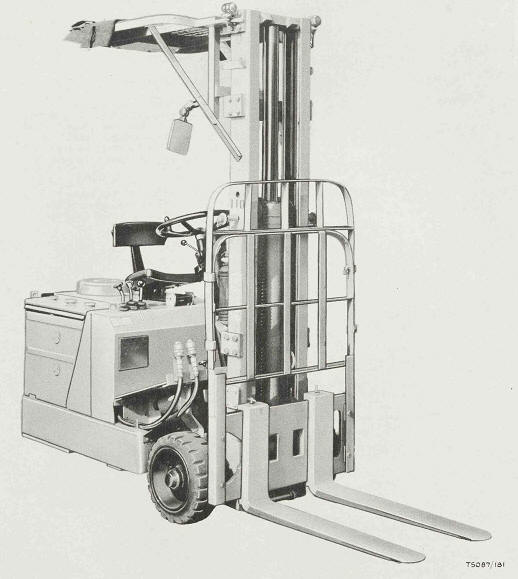

Truck, Lift, Fork, electric,
2000/20/12, Conveyancer Mk 25B
Crown Copyright©
|
|
RAF Ref No |
16A/2271 |
|
Electrical Equipment |
Split 36V battery unit, 252 amp hours at the 5 hour
rate; a 2¼ hp series wound traction motor and a 3¾ hp compound wound
pump motor. |
|
Gearbox |
|
|
Performance |
Max Speed - ; MPG - ; Radius of Action - : |
|
Dimensions |
Length - 9ft 1in (with forks), 5ft 11in (without forks)
; Width - 3ft 0in; Height - 16ft 4in (fork raised to top of guard),
7ft 9in (forks lowered); WB - 4ft 0in; G/C - 2½in (under mast); TC -
: |
|
Weights |
Unladen - 2 tons 3 cwt; Laden - : |
|
Body |
|
|
Tyres |
|
|
Notes |
To lift, carry and stack palleted loads
Driver operated (seated), heavy duty, hydraulically
operated, electrically powered fork truck; side shift attachment
also fitted. Rear wheel drive and steering. Speed,
forward and reverse controlled by foot operated unit with dynamic
braking. Maximum safe working load, 2,000 lb |
|

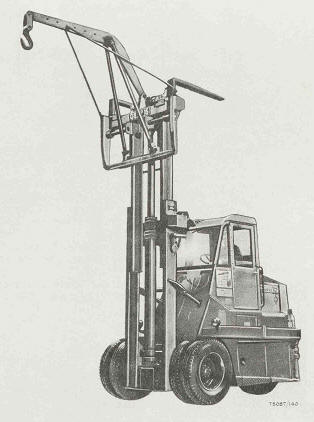

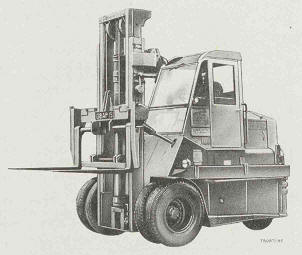

Truck, Lift, Fork, Diesel,
12000/24/12, Shelvoke and Drewry
Crown Copyright©
|
|
RAF Ref No |
16A/1910 |
|
Engine |
Perkins, diesel, direct injection, 6-cyl, liquid
cooled, 50 bhp @ 1,500 rpm. |
|
Gearbox |
|
|
Performance |
Max Speed - ; MPG - ; Radius of Action - : |
|
Dimensions |
Length -
17ft 8in (with forks), 13ft 8in (without forks); Width - 7ft 1½in;
Height :-
- Lift of 17ft 6in - 21ft 7in (mast raised),
12ft 10in (mast lowered)
- Lift of 12ft 0in - 19ft 1in (mast raised),
11ft 7in (mast lowered)
- Lift of 8ft 6in - 12ft 11in (mast raised),
8ft 6in (mast lowered)
WB - 6ft 10in; G/C - 1in (under heal of mast),
11in (under remainder of truck); TC - : |
|
Weights |
- Lift of 17ft 6in - 9 tons 15 cwt
- Lift of 12ft 0in - 9 tons 13 cwt
- Lift of 8ft 6in - 9 tons 10 cwt
|
|
Body |
|
|
Tyres |
|
|
Notes |
To lift, carry and stack loads palleted loads;
used by Transport Command for loading and unloading bulky and
awkward air freight. Driver operated
(seated), heavy duty, diesel engined fork truck, Capacity:
6,000 lb at 20in load centre. Rear steering. Two forward
and two reverse speeds. Forks can be removed and crane jib
fitted. |
|

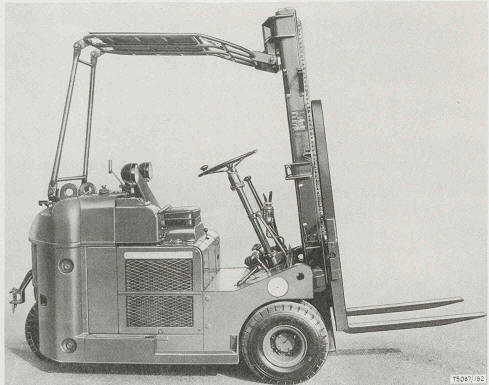

Truck, Lift, Fork, diesel,
4000/20/12, Coventry Climax, FTF412
Crown Copyright©
|
|
RAF Ref No |
16A/1295 |
|
Engine |
Coventry Climax, diesel, 4-cyl, liquid cooled, 35 bhp
@ 2,400 rpm. |
|
Gearbox |
|
|
Performance |
Max Speed - ; MPG - ; Radius of Action - |
|
Length |
|
|
Dimensions |
Length -
10ft 8in (with forks), 7ft 8in (without forks); Width - 4ft 2in;
Height - 14ft 3in (forks raised), 8ft 6in (forks
lowered); WB - 5ft 3in; G/C - 4in; TC - : |
|
Height |
|
|
Weights |
Unladen - 3 tons 19 cwt; Laden - : |
|
Body |
|
|
Tyres |
|
|
Notes |
To lift, carry and stack loads within capacity of
vehicle. Driver operated (seated), medium
duty, diesel engined fork truck, Capacity: 4,000 lb at 20in
load centre. Lift and tilt mechanism hydraulically operated.
Rear swivelling fork steering, hydraulically operated. Two
forward and two reverse speeds. Overhead load guard fitted. |
|

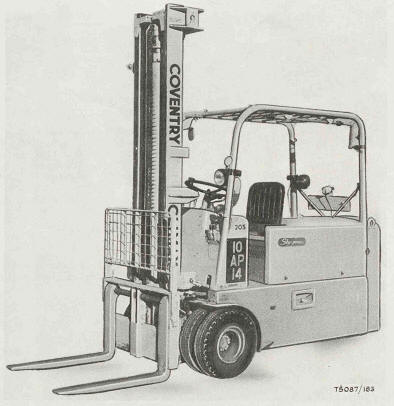

Truck, Lift, Fork, diesel,
6000/20/14, Coventry Climax Skyzone
Crown Copyright©
|
|
RAF Ref No |
16A/2273 |
|
Engine |
Coventry Climax, diesel, direct injection, 4-cyl,
liquid cooled, 40 bhp @ 2,000 rpm. |
|
Gearbox |
|
|
Performance |
Max Speed - ; MPG - ; Radius of Action - : |
|
Dimensions |
Length -
11ft 7in (with forks), 8ft 7in (without forks); Width - 4ft 2in;
Height - 16ft 5in (forks raised), 9ft 8in (forks
lowered); WB - 5ft 10in; G/C -2¾in ; TC - : |
|
Weights |
Unladen - 5 tons 5 cwt; Laden - : |
|
Body |
|
|
Tyres |
|
|
Notes |
To lift, carry and stack loads within capacity of
vehicle. Driver operated (seated), medium
duty, diesel engined fork truck, Capacity: 6,000 lb at 20in
load centre. Lift and tilt mechanism hydraulically operated.
Rear swivelling fork steering, hydraulically operated with hydraulic
power assistance. Brockhouse torque-converter in conjunction
with epicyclic gearbox provides infinitely variable forward and
reverse speeds up to a maximum of 8 mph at 2,000 engine rpm.
Overhead load guard fitted; fork extension provided. |
|
Truck, Lift, Fork, diesel,
6000/20/9, Coventry Climax, model WUTFF/461/1
Crown Copyright©
|
|
RAF Ref No |
16A/2595 |
|
Engine |
Coventry Climax, diesel, 4-cyl, liquid cooled, 46 bhp
@ 2,400 rpm. |
|
Gearbox |
|
|
Performance |
Max Speed - ; MPG - ; Radius of Action - : |
|
Dimensions |
Length -
11ft 8¾in (with forks), 8ft 8¾in (without forks); Width - 4ft 3½in;
Height - 11ft 5in (mast raised), 7ft 2in (mast
lowered); WB - 5ft 4½in; G/C - 4½in; TC - : |
|
Weights |
Unladen - 4 tons 9 cwt; Laden - : |
|
Body |
|
|
Tyres |
|
|
Notes |
To lift, transport and stack loads of various sizes
and bulk within the lifting capacity specified for the vehicle.
The truck is powered by a four cylinder diesel engine
which forms a complete unit with the torque-converter and final
drive assembly. The torque-converter dispenses with the clutch
pedal and so allows two pedal control by use of the accelerator and
brake pedals. Forward and reverse drive is controlled by a
selector lever incorporated in the transmission assembly. |
|

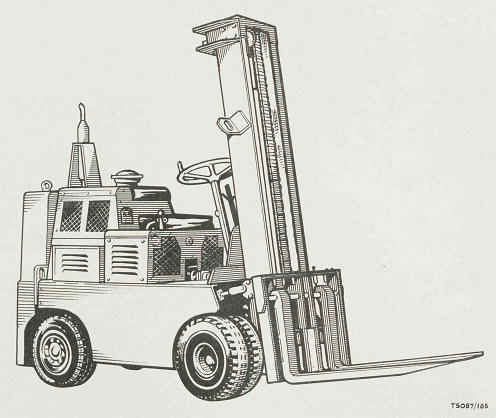

Truck, Lift, Fork, diesel,
6000/20/12, Conveyancer TC6PD
Crown Copyright©
|
|
RAF Ref No |
16A/2506 |
|
Engine |
Perkins, diesel, liquid cooled, 46 bhp @ 2,200 rpm. |
|
Gearbox |
|
|
Performance |
Max Speed - ; MPG - ; Radius of Action - : |
|
Dimensions |
Length -
11ft 6in (with forks), 8ft 6in (without forks); Width - 4ft 3in;
Height - 18ft 2in (mast extended with load
guard), 9ft 8in (mast retracted); WB - 4ft 8in; G/C - 1ft 0in; TC -
: |
|
Weights |
Unladen - 5 tons 6 cwt; Laden - : |
|
Body |
|
|
Tyres |
|
|
Notes |
To lift, transport and stack by mechanical handling,
loads of various sizes and bulk within the lifting capacity
specified for the vehicle. The chassis is a
fabricated construction produced from heavy section steel plate and
powered by a Perkins diesel engine which is formed as a single unit
with a Brockhouse hydraulic turbo-transmission assembly. The
transmission assembly dispenses with the clutch pedal and so allows
two pedal control by use of the accelerator and brake pedals. |
|

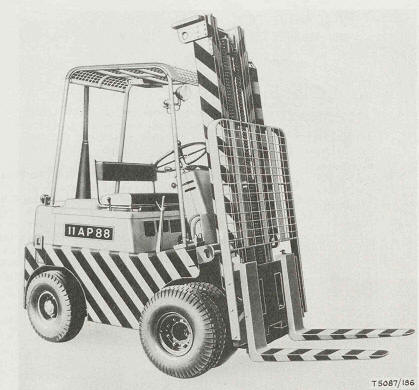

Truck, Lift, Fork, diesel,
6000/36/14, Conveyancer, TC6, series V
Crown Copyright©
: |
|
RAF Ref No |
16A/2642 |
|
Engine |
Perkins, diesel, 4-cyl, liquid cooled, 63 bhp @ 2,600
rpm. |
|
Gearbox |
|
|
Performance |
Max Speed - ; MPG - ; Radius of Action - : |
|
Dimensions |
Length -
11ft 8½in (with forks), 8ft 6½in (without forks); Width - 4ft 10¼in;
Height - 19ft 8in (mast extended), 8ft 11½in
(mast retracted) 7ft 8in (overhead load guard); WB - 4ft 8in; G/C -
2¾in; TC - : |
|
Weights |
Unladen - 5 tons 11 cwt; Laden - : |
|
Body |
|
|
Tyres |
|
|
Notes |
The truck is designed to lift, transport and stack
with the aid of pallets, dunnage strips and other suitable equipment
can deal with loads of various size and bulk.
The chassis is a fabricated construction produced
from heavy section steel plate and utilises both the fuel and
hydraulic fluid tanks to form integral parts of the chassis.
The transmission assembly incorporates an epicyclic gearbox and
dispenses with the clutch pedal and so allows two pedal control by
use of the accelerator and brake pedals. Forward and reverse
drive is controlled by a selector lever incorporated in the
epicyclic gearbox. |
|

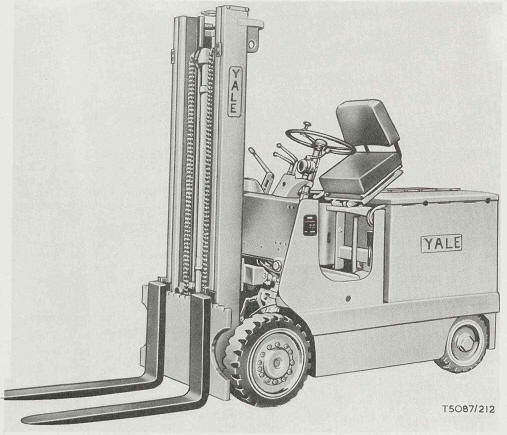

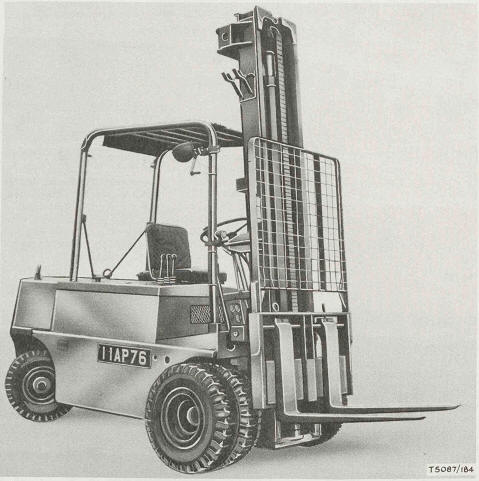

Truck, Lift, Fork, electric,
6000 lb, Eaton, Yale & Towne, model K51-SAT-67
Crown Copyright©
|
|
RAF Ref No |
16A/2839 |
|
Electrical Equipment |
Exide 18 ILF 31
battery with 18 cells having 705 amp hours at the 5 hour rate.
Traction motor - EDC giving 5 hp @ 1,699 rpm
Pump motor - EDC giving 7½ hp @ 1,800 rpm
|
|
Gearbox |
|
|
Performance |
Max Speed - ; MPG - ; Radius of Action - |
|
Dimensions |
Length -
10ft 9¼in (with forks), 7ft 9¼in (without forks); Width - 3ft 5in; Height - 18ft 10 (mast raised), 8ft 6in (mast
lowered), 14ft 9in (lift height); WB - 5ft 2in; G/C - 2-7/8in; TC - : |
|
Weights |
Unladen - 4 tons 16 cwt; Laden - : |
|
Body |
|
|
Tyres |
|
|
Notes |
To lift, carry and stack palleted loads and other
items within the lifting capacity of the vehicle.
Driver operated (seated), heavy duty, hydraulically
operated, electrically powered fork truck. Rear wheel
steering. Speed, forward and reverse controlled by
foot-operated unit. Maximum safe working load: 6,000 lb. |
|

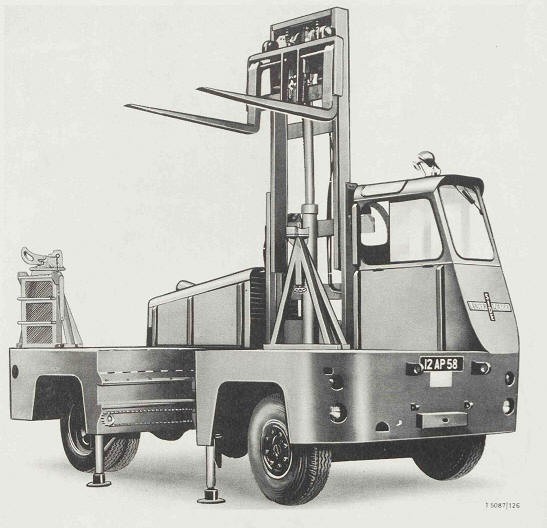

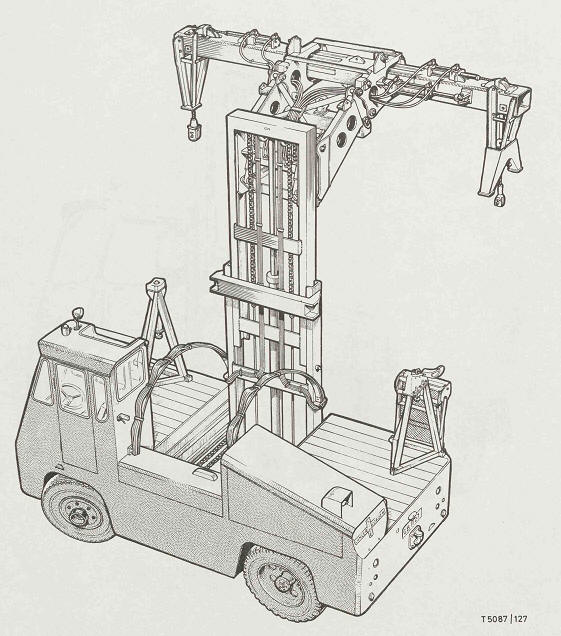

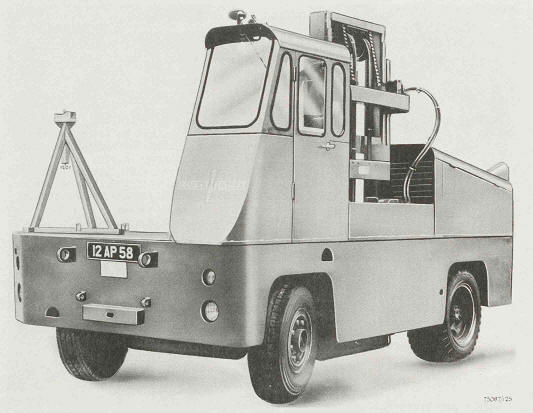

Truck, Lift, Fork , Self-Side
Loading, Lancer, 4x2
Truck, Fork Lift, Self-Side
Loading, Diesel Engine Driven , 6-ton, Mk 1, Lancer Boss
Crown Copyright©
|
|
RAF Ref No |
16A/2669 |
|
Engine |
Ford, 4-cyl, diesel, liquid
cooled, 62 bhp @ 2,250 rpm. |
|
Gearbox |
|
|
Performance |
Max Speed - ; MPG - ; Radius of Action - : |
|
Dimensions |
(a) OverallLength - 15ft 6in/4.72m; Width - 8ft 1¾in/2.48m, 5ft 9in/1.75m (platform);
Height - 9ft 8½in/2.94m (mast lowered, travelling),
15ft 0in/4.57m (mast raised), 3ft 10in/1.16m (platform); WB - ; G/C
- ; TC - : (b) With rear platform, and top half of cabin
removed to facilitate transport by air
Length - 15ft 0in; Width - ; Height - 6ft 6in; WB
- 2.74m; G/C - 8in/200mm; TC - : |
|
Weights |
Unladen - 8 tons 4 cwt; Laden - : |
|
Body |
|
|
Tyres |
|
|
Notes |
To lift, stack and/or self load, by mechanical
handling, and to transport on its own platform loads of various size
and bulk within the lifting capacity specified for the vehicle.
The lifting mast is designed so the forks can be easily removed and
a jib and beam attached to the mast so the vehicle can be used to
lift a Bloodhound Mk 2 missile. |
|
Truck, Fork Lift, Self-Side
Loading, Diesel Engine Driven , 6-ton, Mk 1A, Lancer Boss
Crown Copyright©
|
|
RAF Ref No |
16A/2697 |
|
Engine |
Ford, 4-cyl, diesel, liquid cooled, 62 bhp @ 2,250 rpm. |
|
Gearbox |
|
|
Performance |
Max Speed - ; MPG - ; Radius of Action - : |
|
Dimensions |
(a) Overall Length - 17ft 4in/5.28m;
Width - 8ft 1in/2.48m, 5ft 9in/1.75m (platform); Height - 9ft 4in/2.84m (mast lowered, travelling),
15ft 0in/4.57m (mast raised), 3ft 10in/1.16m (platform); WB - ; G/C
- ; TC - :
(b) With rear platform, and top half of cabin
removed to facilitate transport by air
Length - 16ft 6½in; Width - ; Height -6ft 6in ; WB
- 9ft 0in/2.74m; G/C - 8in/200mm; TC - : |
|
Weights |
Unladen - 8 tons 4 cwt; Laden - : |
|
Body |
|
|
Tyres |
|
|
Notes |
To lift, stack and/or self load, by mechanical
handling, and to transport on its own platform loads of various size
and bulk within the lifting capacity specified for the vehicle.
The lifting mast is designed so the forks can be easily removed and
a jib and beam attached to the mast so the vehicle can be used to
lift a Bloodhound Mk 2 missile. |
