2782E - Tankers

Mechanical Transport AP2782E Book 1, Section 6 - Trucks, Tanker and Fuel Servicing

Item	Vehicle
1	Truck, Fuel Servicing, Aircraft, 3-ton, 4x4, 950-gallon, Bedford QLC (Avtur/Avtag, boom type, open line )
2	Truck, Fuel Servicing, Aircraft, 10-ton, 6x6, 2,500-gallon, AEC 0854 (Avtur/Avtag, Boom type, open line)
3	Truck, Fuel Servicing, Aircraft, 7-ton, 4x2, 950-gallon, Bedford SH (Avtur/Avtag, boom type, pressure/open line)
4	Truck, Tanker, Water Methanol, 7-ton, 4x2, 950-gallon, Bedford SH (Pressure)
5	Truck, Fuel Servicing, Aircraft, 7-ton, 4x2, 1,000-gallon, Dual Purpose Delivery, Bedford KFL (Mk 1 - Open line Avtur/Avtag; Mk 2 - Pressure/Open line, Avtur/Avtag )
6	Truck, Fuel Servicing, Aircraft, 3-ton, 4x4, 1,000-gallon, Air Transportable, Bedford RL (Avtur/Avtag, Pressure/Open line Mk 3)
7	Truck, Tanker, Fuel, 10-ton, 6x4, 1,500-gallon, AEC 0859 (HTP pressure)
8	Semi-Trailer, Fuel Servicing, Aircraft, 10-ton, two (twin) wheeled, 2,000-gal, Carrimore (drop frame) (Avtur/Avtag, Pressure/Open line)
9	Truck, Fuel Servicing, Aircraft, 10-ton, 4x2, 2000-gallon, Air Transportable, AEC Mercury Mk 2 (Avtur/Avtag, Pressure/Open Line Mk 4)
10	Truck, Fuel Servicing, Aircraft, 10-ton, 6x4, Leyland 19H/1E, (Avtur/Avtag, Pressure 500-gal/min)
11	Truck, Fuel Servicing, Aircraft, 10-ton, 6x4, 2,500-gallon, 300 gpm, Leyland 19H/1E (Avtur/Avtag, Pressure/Open Line Mk 1)
12	Truck, Fuel Servicing, Aircraft, 10-ton, 6x4, 2,500-gallon, Leyland 19H/1E (Avtur/Avtag, Pressure/Open Line Mk 1A)
13	Truck, Fuel Servicing, Aircraft, 10-ton, 6x4, 2,500-gallon, Leyland 19H/1E (Avtur/Avtag, Pressure/Open Line Mk 2)
14	Truck, Fuel Servicing, Aircraft, 10-ton, 6x4, 2,500-gallon, Leyland 19H/1E (Avtur/Avtag, Pressure/Open Line Mk 3)
15	Truck, Fuel Servicing, Aircraft, 10-ton, 6x4, 3,500-gallon, Air Transportable, AEC 0859 (AVTUR/AVTAG, pressure c/w trailer 4,500 gal, forming high capacity 8,000 gal, complete vehicle)
16	Truck, Tanker, Fuel, 2,500-gallon, 10-ton, 6x4,Leyland 19H/1E
17	Truck, Tanker, Water, 200-gal, 1-ton, 4x4, Austin K9
18	Truck, Tanker, Water, 600-gal, 3-ton, 4x4, Bedford RL
19	Truck, Tanker, Water, 600-gal, 3-ton, 4x4, Bedford RLC
20	Truck, Tanker, Water, Aircraft, Replenishment, 600-gal, 7-ton, 4x2, Bedford SLC
21	Truck, Fuel Servicing, Aircraft, 4-ton, 4x4, 1,000-gallon, Air Transportable Mk 5
22	Truck, Fuel Servicing, Aircraft, 10-ton, 6x4, 3,000-gallon, D/P, AEC Mammoth Major TG6RB
23	Truck, Fuel Servicing, Aircraft, 10-ton, 6x4, 3,000-gallon, D/P, Leyland Bison
24	Truck, Fuel Servicing Aircraft, 7-tonne, 5,000 litres, Leyland DAF
25	Truck, Tactical Aircraft Refueller, 4 Tonne, Air Portable, Leyland DAF
26	Truck, Tactical Aircraft Refueller, Oshkosh
27	Truck, Tanker, Fuel, 10-ton, 6x4, 4,000-gallon, AEC Mammoth Major TG6RB
28	Truck, Tanker, Water Methanol, 7-ton, 4x2, 950-gallon, Bedford EJQ 3 BCO (KFLC5)
29	Truck, Tanker, MAN TSG
30	Truck, Tanker, Water, 7-ton, 4x2, Aircraft Replenishment, 600-gallon, Bedford EJQ 1 BCO (KFSC5)

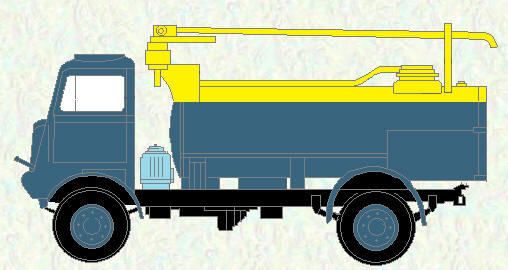

Truck, Fuel Servicing, Aircraft, 3-ton, 4x4, 950-gallon, Bedford QLC (Avtur/Avtag, boom type, open line ) Crown Copyright^©
RAF Ref No	16A/1393 (Vehicle); 16A/695 (Chassis):
Engine	Bedford, petrol, 6cyl, ohv, liquid cooled, 72 bhp @ 3,000 rpm.
Gearbox
Performance	Max Speed - ; MPG - ; Radius of Action -
Dimensions	Length - 19ft 7in; Width - 7ft 2in; Height - 9ft 8in; WB - 12ft 0in; G/C - 1ft 0in; TC - :
Weights	Unladen - 5 tons 6 cwt; Laden - :
Body
Tyres
Notes	Open-line refueller; delivery through two single-nozzle booms each supplied through a Stream-Line, Type K8913 filter. Maximum pumping rate 100 gpm

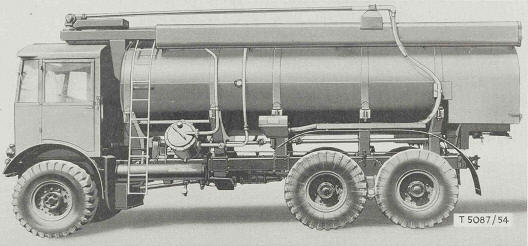

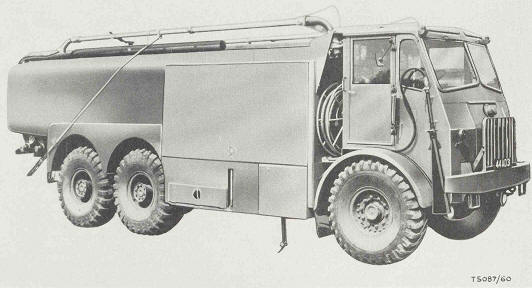

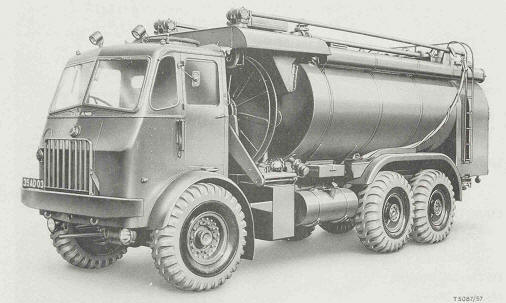

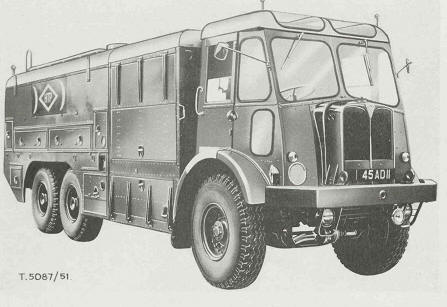

Truck, Fuel Servicing, Aircraft, 10-ton, 6x6, 2,500-gallon, AEC 0854 (Avtur/Avtag, Boom type, open line) Crown Copyright^©
RAF Ref No	16A/1473 (Vehicle); 16A/617 (Chassis):
Engine	AEC type A196, diesel, direct injection, 6-cyl, liquid cooled, 95 bhp @ 1,800 rpm
Gearbox
Performance	Max Speed - ; MPG - ; Radius of Action -
Dimensions	Length - 25ft 6in; Width - 7ft 6in; Height - 10ft 6in; WB - 19ft 2in; G/C - ; TC
Weights	Unladen - 10 tons 12 cwt; Laden - :
Body
Tyres
Notes	Open-line refueller, delivery through two Stream-Line Type K5518 filters to two single nozzles booms.

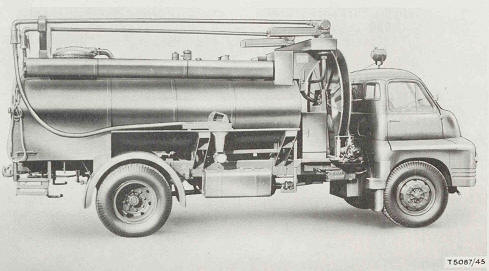

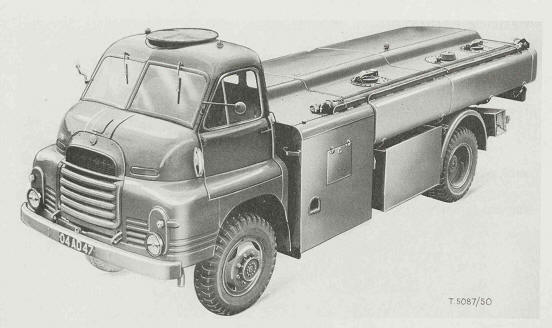

Truck, Fuel Servicing, Aircraft, 7-ton, 4x2, 950-gallon, Bedford SH (Avtur/Avtag, boom type, pressure/open line) Crown Copyright^©
RAF Ref No	16A/1639 (Vehicle); 16A/1638 (Chassis):
Engine	Bedford, petrol, 6cyl, ohv, liquid cooled, 110 bhp @ 3,200 rpm.
Gearbox
Performance	Max Speed - ; MPG - ; Radius of Action -
Dimensions	Length - 22ft 8in; Width - 7ft 8in; Height - 10ft 0in (normal), 7ft 8½in (cut-down); WB - 13ft 0in; G/C - ; TC - :
Weights	Unladen - 6 tons 15 cwt ; Laden - :
Body
Tyres
Notes	Open-line or pressure refueller; Open-line refuelling through two single-nozzle booms. Pressure refuelling through a single hose. Maximum pumping rate 150 gpm.

Truck, Tanker, Water Methanol, 7-ton, 4x2, 950-gallon, Bedford SH (Pressure) Crown Copyright^©
RAF Ref No	16A/2109 (Vehicle); 16A/1638 (Chassis):
Engine	Bedford, petrol, 6-cyl, ohv, liquid cooled, 110 bhp @ 3,200 rpm
Gearbox
Performance	Max Speed - ; MPG - ; Radius of Action - :
Dimensions	Length - 22ft 5in; Width - 7ft 4in; Height - 9ft 9in (normal), 7ft 8½in (cut-down); WB - 13ft 0in; G/C - 10in; TC - :
Weights	Unladen - 6 tons 2 cwt; Laden - :
Body
Tyres
Notes	Pressure refueller with single delivery hose. Maximum pumping rate of 100 gpm against pressure of 25lb/in². A Rellumit filter is fitted instead of the Stream-Line filters and pumping equipment is resistant to corrosion by methanol-water.

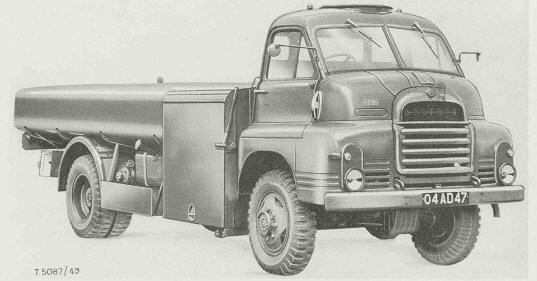

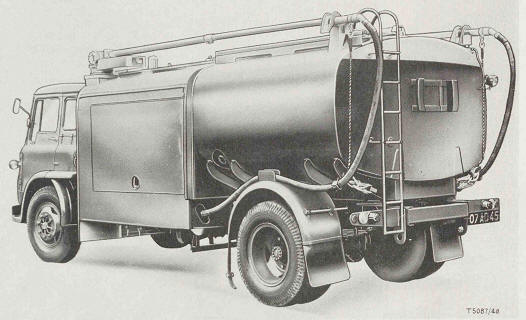

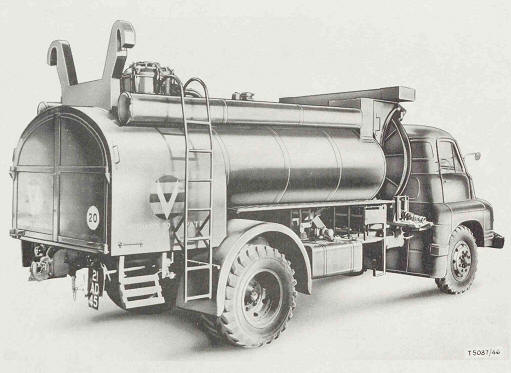

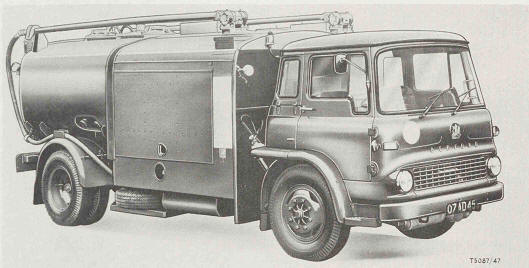

Truck, Fuel Servicing, Aircraft, 7-ton, 4x2, 1,000-gallon, Dual Purpose Delivery, Bedford KFL (Mk 1 - Open line Avtur/Avtag; Mk 2 - Pressure/Open line, Avtur/Avtag ) Crown Copyright^©
RAF Ref No	16A/2656 (Vehicle Mk 1); 16A/2657 (Vehicle Mk 2); 16A/2661 (Chassis)
Engine	Bedford 330 cu in, 6-cyl, compression ignition, direct injection, ohv, liquid cooled, 108 bhp @ 2,400 rpm
Gearbox
Performance	Max Speed - ; MPG - ; Radius of Action - :
Dimensions	Length - 22ft 0in/6.70m; Width - 7ft 3in/2.21m; Height - 8ft 5½in/2.56m; WB - 13ft 11in/4.25m; G/C -10½in/260mm ; TC - :
Weights	Unladen - 5 tons 13 cwt; Laden - :
Body
Tyres
Notes	The Mk 1 and Mk 2 refuellers are intended for refuelling and decanting standard grades of fuel either into or from fuel tanks of helicopters and training and communication types of aircraft. The Mk 1 refueller is equipped with open-line refuelling through two boom mounted hoses. The Mk 2 is similarly equipped but in addition has a reel mounted hose for pressure fuelling.

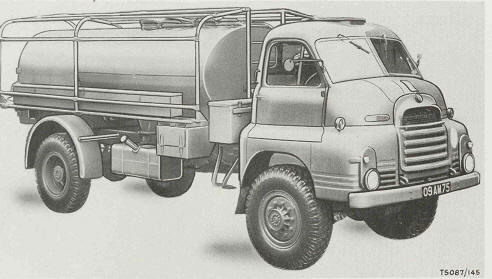

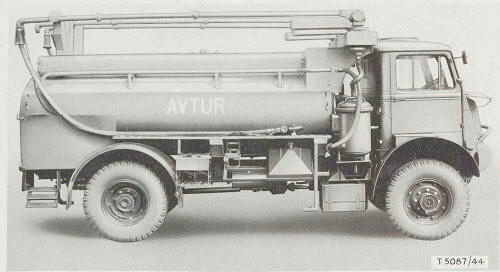

Truck, Fuel Servicing, Aircraft, 3-ton, 4x4, 1,000-gallon, Air Transportable, Bedford RL (Avtur/Avtag, Pressure/Open line Mk 3) Crown Copyright^©
RAF Ref No	16A/2658 (Vehicle); 16A/2660 (Chassis):
Engine	Bedford 300 cu in, direct injection, compression ignition, liquid cooled, 97 bhp @ 2,400 rpm
Gearbox
Performance	Max Speed - ; MPG - ; Radius of Action - :
Dimensions	Length - 23ft 4½in/7.12m; Width - 7ft 6½in/2.28m; Height - 8ft 2½in/2.48m (cab roof), 6ft 2in/1.88 (with cab roof removed); WB - 13ft 0in/3.96m; G/C - ; TC - :
Weights	Unladen - 5 tons 6 cwt; Laden - :
Body
Tyres
Notes	A tactical air transportable vehicle for refuelling or defuelling aircraft fuel tanks through a single hose which be used for either pressure or open-line fuelling.

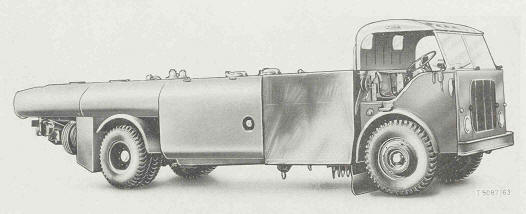

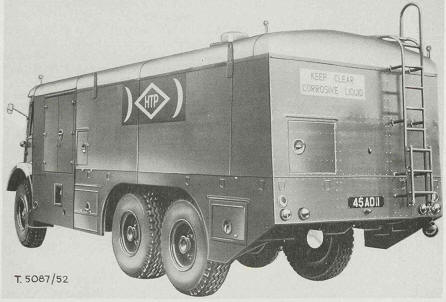

Truck, Tanker, Fuel, 10-ton, 6x4, 1,500-gallon, AEC 0859 (HTP pressure) Crown Copyright^©
RAF Ref No	16A/2646 (Vehicle); 16A/2594 (Chassis):
Engine	AEC type A223, 6-cyl, liquid cooled, direct injection, compression ignition, 144 bhp @ 1,800 rpm
Gearbox
Performance	Max Speed - ; MPG - ; Radius of Action - :
Dimensions	Length - 29 ft 2in; Width - 8ft 4¾in; Height - 11ft 0in (to top of ladder); WB - 16ft 0in; G/C - 10 tons 12 cwt; TC - :
Weights	Unladen - ; Laden - :
Body
Tyres
Notes	The refueller is designed specifically for the safe transport of high test peroxide fuel

Semi-Trailer, Fuel Servicing, Aircraft, 10-ton, two (twin) wheeled, 2,000-gal, Carrimore (drop frame) (Avtur/Avtag, Pressure/Open line) Crown Copyright^©
RAF Ref No	16A/1602 (T(Tractor) Ford V-8 Commercial, petrol, 8-cyl, 85 bhp @ 3,500 rpmractor); 16A/1601 (Semi-trailer); 16A/1603 (Semi-trailer chassis):
Engine
Gearbox
Performance	Max Speed - ; MPG - ; Radius of Action -
Dimensions	Length - 32ft 7in; Width - 7ft 9in; Height - 8ft 4in; WB - ; G/C - 10in; TC - :
Weights	Unladen - 10 tons 17 cwt; Laden - :
Body
Tyres
Notes	Open-line or pressure refueller

Truck, Fuel Servicing, Aircraft, 10-ton, 4x2, 2000-gallon, Air Transportable, AEC Mercury Mk 2 (Avtur/Avtag, Pressure/Open Line Mk 4) Crown Copyright^©
RAF Ref No	16A/2624 (Vehicle); 16A/2625 (Chassis):
Engine	AEC type AV470, direct injection, 6-cyl, liquid cooled, 126 bhp @ 2,000 rpm
Gearbox
Performance	Max Speed - ; MPG - ; Radius of Action - :
Dimensions	Length - 30ft 0in/9.15m; Width - 8ft 0in/2.43m; Height - 8ft 2in/2.48m (normal), 6ft 2in/1.87m (air transportable); WB - 17ft 3in/5.25m; G/C - 9¾in/250mm; TC - :
Weights	Unladen - 6 tons 6 cwt; Laden - :
Body
Tyres
Notes	The Mark 4 dual purpose refuelling equipment together with the carrier tank is of light weight construction and is designed specifically for refuelling and defuelling aircraft through one reel hose which can be used for either open-line or pressure refuelling. The vehicle can be transported, with the minimum of preparation in the Argosy Mk 1 aircraft.

Truck, Fuel Servicing, Aircraft, 10-ton, 6x4, Leyland 19H/1E, (Avtur/Avtag, Pressure 500-gal/min) Crown Copyright^©
RAF Ref No	16A/1640 (Vehicle); 16A/1593 (Chassis):
Engine	Leyland, Type EO/600/191, 207, 208 or 209, Diesel, direct injection, 6-cyl, liquid cooled, 125 bhp @ 1,800 rpm
Gearbox
Performance	Max Speed - ; MPG - ; Radius of Action -
Dimensions	Length - 27ft 9in; Width - 8ft 3in; Height - 10 ft 6½in (normal), 9ft 11½in (cut down); WB - 15ft 6in; G/C - 1ft 2in; TC - :
Weights	Unladen - 14 tons 4 cwt; Laden - :
Body
Tyres
Notes	Pressure refueller; adaptor sets available for conversion to open-line refueller. Delivery to two 60ft hoses fitted with hose coupling units. Each adaptor set consists of a Y-branch coupling unit to connect to one of the existing hose coupling units, four 10ft and two delivery nozzles. Two such sets are required to adapt both hoses of the refueller. Hose reels are power operated for rewind purposes

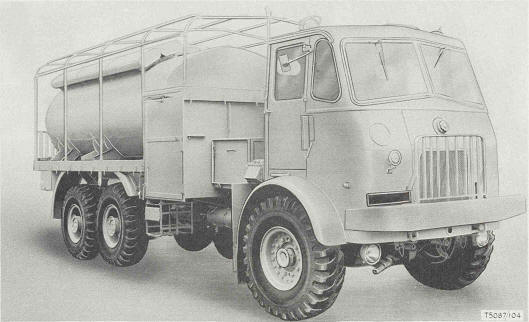

Truck, Fuel Servicing, Aircraft, 10-ton, 6x4, 2,500-gallon, 300 gpm, Leyland 19H/1E (Avtur/Avtag, Pressure/Open Line Mk 1) Crown Copyright^©
RAF Ref No	16A/1933 (Vehicle); 16A/1593 (Chassis):
Engine	Leyland, Type EO/600/191, 207, 208 or 209, Diesel, direct injection, 6-cyl, liquid cooled, 125 bhp @ 1,800 rpm
Gearbox
Performance	Max Speed - ; MPG - ; Radius of Action - :
Dimensions	Length - 28ft 0in; Width - 7ft 10in; Height - 11 ft 9in (normal), 10ft 9½in (cut down); WB - 15ft 6in; G/C - 1ft 1in; TC - :
Weights	Unladen - 14 tons 12 cwt; Laden - :
Body
Tyres
Notes	Dual purpose refueller. Delivery to two 60ft hoses fitted with hose coupling units or alternatively, to two single nozzle booms. Chassis is fitted with Westinghouse power assisted steering. Hose reels are hand cranking type for rewind.

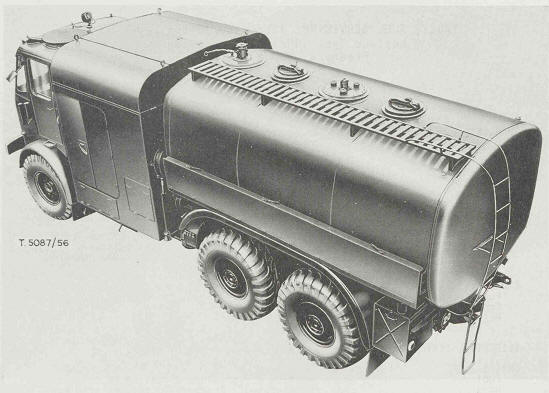

Truck, Fuel Servicing, Aircraft, 10-ton, 6x4, 2,500-gallon, Leyland 19H/1E (Avtur/Avtag, Pressure/Open Line Mk 1A) Crown Copyright^©
RAF Ref No	16A/2413 (Vehicle); 16A/1593 (Chassis):
Engine	Leyland, Type EO/600/191, 207, 208 or 209, Diesel, direct injection, 6-cyl, liquid cooled, 125 bhp @ 1,800 rpm
Gearbox
Performance	Max Speed - ; MPG - ; Radius of Action - :
Dimensions	Length - 28ft 0in; Width - 7ft 10in; Height -11 ft 9in (normal), 10ft 9½in (cut down) ; WB - 15ft 6in; G/C - 1ft 1in; TC - :
Weights	Unladen - 14 tons 12 cwt; Laden - :
Body
Tyres
Notes	Dual purpose refueller. Delivery to two 60ft hoses fitted with hose coupling units or alternatively, to two single nozzle booms. Chassis is fitted with Westinghouse power assisted steering. Hose reels are hand cranking type for rewind.

Truck, Fuel Servicing, Aircraft, 10-ton, 6x4, 2,500-gallon, Leyland 19H/1E (Avtur/Avtag, Pressure/Open Line Mk 2) Crown Copyright^©
RAF Ref No	16A/2214 (Vehicle); 16A/2540 (Chassis):
Engine	Leyland, Type EO/600/191, 207, 208 or 209, Diesel, direct injection, 6-cyl, liquid cooled, 125 bhp @ 1,800 rpm
Gearbox
Performance	Max Speed - ; MPG - ; Radius of Action - :
Dimensions	Length - 27ft 10in; Width - 8ft 6in; Height -11ft 10½in (normal), 10ft 5in (cut down) ; WB - 15ft 6in; G/C - 1ft 1in; TC - :
Weights	Unladen - 15 tons 3 cwt; Laden - :
Body
Tyres
Notes	Dual purpose refueller. Delivery to two 60ft hoses fitted with hose coupling units or alternatively, to two single nozzle booms. Chassis is fitted with Westinghouse power assisted steering. Hose reels are electrically operated for winding and unwinding purposes.

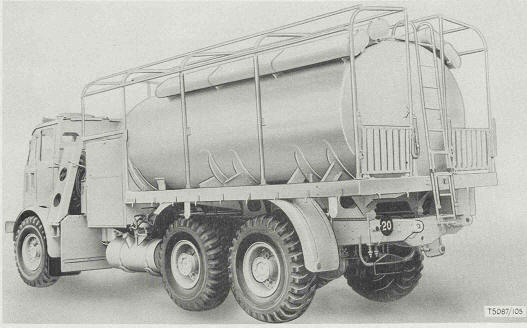

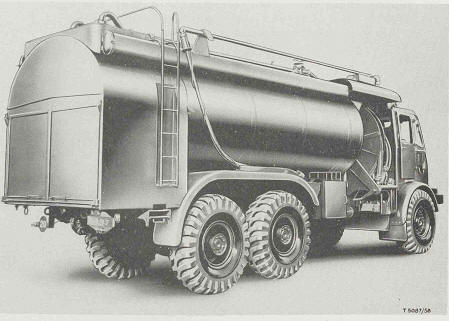

Truck, Fuel Servicing, Aircraft, 10-ton, 6x4, 2,500-gallon, Leyland 19H/1E (Avtur/Avtag, Pressure/Open Line Mk 3) Crown Copyright^©
RAF Ref No	16A/2476 (Vehicle); 16A/1593 (Chassis):
Engine	Leyland, Type EO/600/191, 207, 208 or 209, Diesel, direct injection, 6-cyl, liquid cooled, 125 bhp @ 1,800 rpm
Gearbox
Performance	Max Speed - ; MPG - ; Radius of Action - :
Dimensions	Length - 28ft 8in; Width - 8ft 2½in; Height - 9ft 8in (booms fitted), 9ft 4in (booms removed); WB - 15ft 6in; G/C - ; TC - :
Weights	Unladen - 12 tons 12 cwt; Laden - :
Body
Tyres
Notes	The 2,500 gallon refueller, Mk 3 is used for refuelling and defuelling aircraft; it is capable of dispensing all standard grades of AVTUR, AVTAG and AVGAS. The vehicle is equipped for pressure refuelling through two 60ft 2½in bore reel hoses and for open-line refuelling through two 30ft 2½in bore boom hoses. When the vehicle is to be transported by air, the cab doors, some open-line refuelling equipment and some ancillary equipment must be removed.

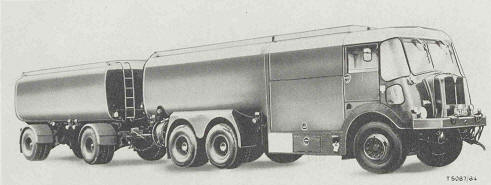

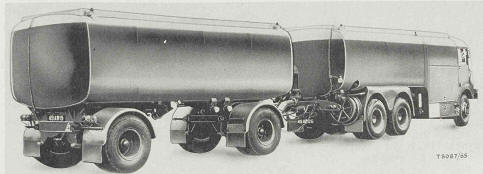

Truck, Fuel Servicing, Aircraft, 10-ton, 6x4, 3,500-gallon, Air Transportable, AEC 0859 (AVTUR/AVTAG, pressure c/w trailer 4,500 gal, forming high capacity 8,000 gal, complete vehicle) Crown Copyright^©
RAF Ref No	16A/2670 (Vehicle); 16A/2672 (Trailer); 16A/2671 (AEC Chassis):
Engine	AEC, 6-cyl, liquid cooled, direct injection, compression ignition, 144 bhp @ 1,800 rpm
Gearbox
Performance	Max Speed - ; MPG - ; Radius of Action - :
Dimensions	Length - 29ft 2in/8.88m (Prime Mover), 24ft 5in/7.44m (Trailer); Width - 8ft 0in/2.43m (Prime Mover), 8ft 0in/2.43m (Trailer); Height - 10ft 6in/3.20m (Prime Mover), 10ft 6in/3.20m (drawbar 760mm) (Trailer); WB - 16ft 0in/4.87m (Prime Mover), 12ft 6in/3.71m (Trailer); G/C - 11in/280mm (Prime Mover), 280mm (Trailer); Track - 6ft 6¾in/2.00m (front), 6ft 3¾in1.92m (rear) (Prime Mover), 7ft 0in/2.13m (front and rear) (Trailer); TC - :
Weights	Unladen - 12 tons 3 cwt (Prime Mover), 4 tons 19 cwt (Trailer); Laden - :
Body
Tyres
Notes	The refueller is a combination of an engine powered prime mover and full trailer. The prime mover is fitted with a 3,500 gallon tank and pumping equipment. The pumping equipment on the prime mover is designed to self load both tanks either separately or at the same time and for refuelling and defuelling aircraft with large capacity fuel tanks i.e. up to or in excess of 10,000 gallons.

Truck, Tanker, Fuel, 2,500-gallon, 10-ton, 6x4,Leyland 19H/1E Crown Copyright^©
RAF Ref No	16A/1745 (Vehicle); 16A/1593 (Chassis):
Engine	Leyland, Diesel, direct injection, 6-cyl, liquid cooled, 125 bhp @ 1,800 rpm
Gearbox
Performance	Max Speed - ; MPG - ; Radius of Action -
Dimensions	Length - 27ft 3in; Width - 8ft 3in; Height - 11ft 2in; WB - 15ft 6in; G/C - 1ft 1in; TC - :
Weights	Unladen - 11 tons 17 cwt; Laden - :
Body
Tyres
Notes	Bulk fuel carrying vehicle provided with power driven pumping equipment.

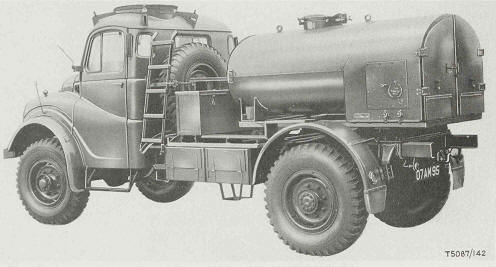

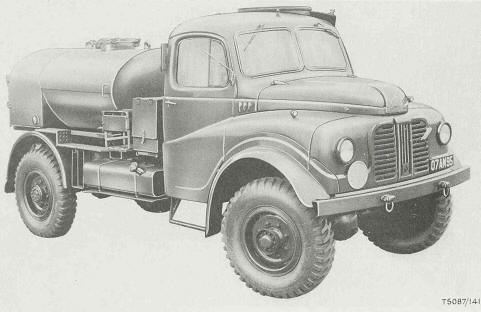

Truck, Tanker, Water, 200-gal, 1-ton, 4x4, Austin K9 Crown Copyright^©
RAF Ref No	Mk 1 - 16A/1659 (Vehicle); 16A/1549 (Chassis): Mk 2 - 16A/2117 (Vehicle); 16A/1549 (Chassis):
Engine	Austin, petrol, 6-cyl, liquid cooled, 90 bhp @ 3,000 rpm
Gearbox
Performance	Max Speed - ; MPG - ; Radius of Action -
Dimensions	Length - 16ft 11in; Width - 7ft 3in; Height - 8ft 1in; WB - 11ft 5½in; G/C - ; TC - :
Weights	Unladen - 3 tons 7 cwt; Laden - :
Body
Tyres
Notes	For the supply of filtered and sterilized drinking water. The equipment is designed for an intake of 200 gallons of contaminated, but poison free, water which is filtered during the pumping operation and subsequently sterilized and made palatable for human consumption and medicinal use.

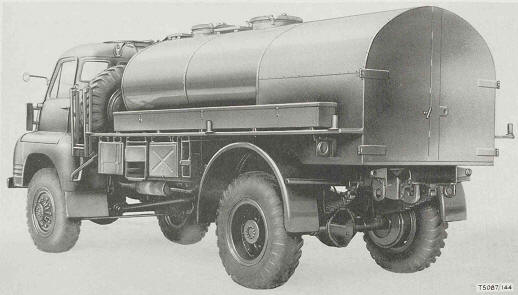

Truck, Tanker, Water, 600-gal, 3-ton, 4x4, Bedford RL Crown Copyright^©
RAF Ref No	16A/1743 (Vehicle); 16A/1701 (Chassis):
Engine	Bedford, petrol, 6-cyl, liquid cooled, 94 bhp @ 3,000 rpm
Gearbox
Performance	Max Speed - ; MPG - ; Radius of Action -
Dimensions	Length - 18ft 10½in; Width - 7ft 3½in; Height - 8ft 11in; WB - 13ft 0in; G/C - 12in; TC - :
Weights	Unladen - 5 tons 0 cwt; Laden - :
Body
Tyres
Notes	For the supply of filtered and sterilized drinking water. The equipment is designed for an intake of 600 gallons of contaminated, but poison free, water which is filtered during the pumping operation and subsequently sterilized and made palatable for human consumption and medicinal use

Truck, Tanker, Water, 600-gal, 3-ton, 4x4, Bedford RLC Crown Copyright^©
RAF Ref No	16A/2515 (Vehicle); 16A/2514 (Chassis)
Engine	Bedford, petrol, 6-cyl, liquid cooled, 97.8 bhp @ 3,000 rpm
Gearbox
Performance	Max Speed - ; MPG - ; Radius of Action - :
Dimensions	Length - 21ft 1½in; Width - 7ft 5½in; Height - 8ft 11in; WB - 13ft 0in; G/C - 12½in; TC - :
Weights	Unladen - 5 tons 0 cwt; Laden - :
Body
Tyres
Notes	General purpose water tanker equipped with filtration equipment; not normally used for the supply of drinking water.

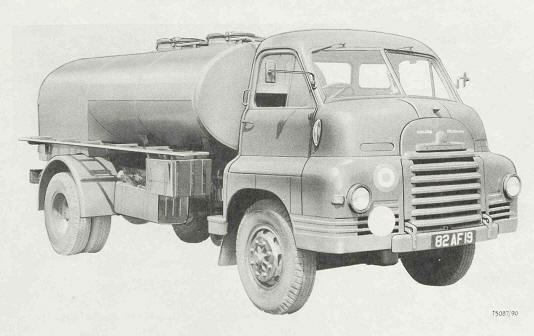

Truck, Tanker, Water, Aircraft, Replenishment, 600-gal, 7-ton, 4x2, Bedford SLC Crown Copyright^©
RAF Ref No	16A/2531 (Vehicle); 16A/1689 (Chassis):
Engine	Bedford, petrol, 6-cyl, liquid cooled, 94 bhp @ 3,000 rpm
Gearbox
Performance	Max Speed - ; MPG - ; Radius of Action - :
Dimensions	Length - 21ft 1½in; Width - 7ft 6in; Height - 8ft 3in; WB - 13ft 0in; G/C - 12½in; TC - :
Weights	Unladen - 4 tons 6 cwt; Laden - :
Body
Tyres
Notes	A 600 gallon tanker for the supply of domestic water to aircraft.

Truck, Fuel Servicing, Aircraft, 4-ton, 4x4, 1,000-gallon, Air Transportable Mk 5
RAF Ref No
Engine
Gearbox
Performance	Max Speed - ; MPG - ; Radius of Action -
Dimensions	Length - 6.91m; Width - 2.44m; Height - 2.67m; WB - 3.96m; G/C - 340mm; TC - :
Weights	Unladen - ; Laden - :
Body
Tyres
Notes

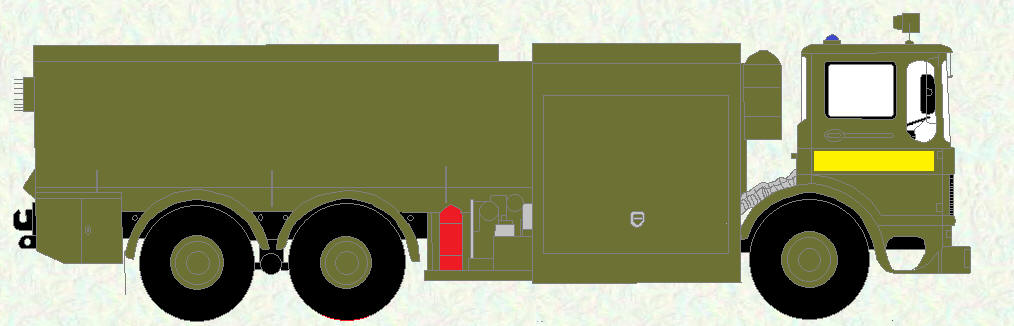

Truck, Fuel Servicing, Aircraft, 10-ton, 6x4, 3,000-gallon, D/P, AEC Mammoth Major TG6RB
RAF Ref No
Engine
Gearbox
Performance	Max Speed - ; MPG - ; Radius of Action -
Dimensions	Length - 9.91m; Width - 2.46m; Height - 2.67m; WB - 5.23m; G/C - 260mm; TC - :
Weights	Unladen - ; Laden - :
Body
Tyres
Notes	Could be fitted with Machine, Runway De-icing or snow ploughs

Truck, Fuel Servicing, Aircraft, 10-ton, 6x4, 3,000-gallon, D/P, Leyland Bison
RAF Ref No
Engine
Gearbox
Performance	Max Speed - ; MPG - ; Radius of Action -
Dimensions	Length - ; Width - ; Height - ; WB - ; G/C - ; TC - :
Weights	Unladen - ; Laden - :
Body
Tyres
Notes	Could be fitted with Machine, Runway De-icing or snow ploughs.

Truck, Fuel Servicing Aircraft, 7-tonne, 5,000 litres, Leyland DAF
RAF Ref No	(Vehicle); (Chassis); (Body):
Engine
Gearbox
Performance	Max Speed - ; MPG - ; Radius of Action -
Dimensions	Length - ; Width - ; Height - ; WB - ; G/C - ; TC - :
Weights	Unladen - ; Laden - :
Body
Tyres
Notes

Truck, Tactical Aircraft Refueller, 4 Tonne, Air Portable, Leyland DAF
RAF Ref No	(Vehicle); (Chassis); (Body):
Engine
Gearbox
Performance	Max Speed - ; MPG - ; Radius of Action -
Dimensions	Length - ; Width - ; Height - ; WB - ; G/C - ; TC - :
Weights	Unladen - ; Laden - :
Body
Tyres
Notes

Truck, Tactical Aircraft Refueller, Oshkosh
RAF Ref No	(Vehicle); (Chassis); (Body):
Engine
Gearbox
Performance	Max Speed - ; MPG - ; Radius of Action -
Dimensions	Length - ; Width - ; Height - ; WB - ; G/C - ; TC - :
Weights	Unladen - ; Laden - :
Body
Tyres
Notes

Truck, Tanker, Fuel, 10-ton, 6x4, 4,000-gallon, AEC Mammoth Major TG6RB
RAF Ref No
Engine
Gearbox
Performance	Max Speed - ; MPG - ; Radius of Action -
Dimensions	Length - 9.91m; Width - 2.46m; Height - 2.14m; WB - 5.23m; G/C - 260mm; TC - :
Weights	Unladen - ; Laden - :
Body
Tyres
Notes

Truck, Tanker, Water Methanol, 7-ton, 4x2, 950-gallon, Bedford EJQ 3 BCO (KFLC5)
RAF Ref No
Engine
Gearbox
Performance	Max Speed - ; MPG - ; Radius of Action -
Dimensions	Length - 7.01m; Width - 2.21m; Height - 2.53m; WB - 4.25m; G/C - 260mm; TC - :
Weights	Unladen - ; Laden - :
Body
Tyres
Notes

Truck, Tanker, MAN TSG
RAF Ref No	(Vehicle); (Chassis); (Body):
Engine
Gearbox
Performance	Max Speed - ; MPG - ; Radius of Action -
Dimensions	Length - ; Width - ; Height - ; WB - ; G/C - ; TC - :
Weights	Unladen - ; Laden - :
Body
Tyres
Notes

Truck, Tanker, Water, 7-ton, 4x2, Aircraft Replenishment, 600-gallon, Bedford EJQ 1 BCO (KFSC5)
RAF Ref No
Engine
Gearbox
Performance	Max Speed - ; MPG - ; Radius of Action -
Dimensions	Length - ; Width - ; Height - ; WB - ; G/C - ; TC - :
Weights	Unladen - ; Laden - :
Body
Tyres
Notes
