2782A - Section 31

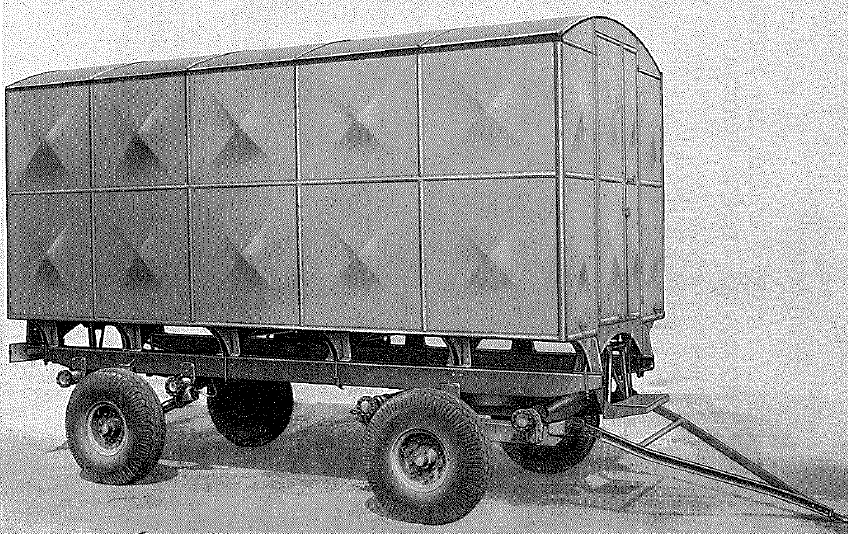

Brockhouse, 3¼ ton, 4-wheel, Mk 1 trailer equipped as stores vehicle Crown Copyright^©
RAF Ref No	16A/354
Chassis details	See entry in Section 15.
Body	Body - Frame work of mild steel channelled sections, electrically welded. Sides, ends and roof panelled with sheet metal, floor of corrugated sheet metal. Door at each end, folding step beneath the door at the front end. Equipment - Bin rails fitted to each side of the interior to accommodate RAF pattern storage bins. Bulkhead light, 230V external source of supply.
Dimensions	Length - 15 ft 6 in (with drawbar - 21 ft 6½ in, internal - 14 ft 10 in); Width - 7 ft 3 in (internal - 6 ft 10 in); Height - 10 ft 6 in (internal - 6 ft 5 in);
Weights	Unladen - 2 tons 5 cwt; Laden - not stated:
Notes	Also shown in AP2782, Group 4.

Brockhouse, 5 ton, 4-wheel, Mk 2 trailer equipped as stores vehicle
RAF Ref No	16A/482
Chassis details	See entry at top of this page
Body	Body - Frame work of mild steel channelled sections, electrically welded. Sides, ends and roof panelled with sheet metal, floor of corrugated sheet metal. Door at each end, folding step beneath the door at the front end. Equipment - Bin rails fitted to each side of the interior to accommodate RAF pattern storage bins. Bulkhead light, 230V external source of supply.
Dimensions	Length - 15 ft 6 in (with drawbar - 21 ft 6½ in, internal - 14 ft 10 in); Width - 7 ft 3 in (internal - 6 ft 10 in); Height - 10 ft 6 in (internal - 6 ft 5 in);
Weights	Unladen - 2 tons 5 cwt; Laden - not stated:
Notes	Also shown in AP2782A, Section 31

Ford, 3 ton, 6x4, Model WOT 1A chassis equipped as rations carrying vehicle Crown Copyright^©
RAF Ref No	16A/1236
Engine
Gearbox
Performance	Max Speed - ; MPG - ; Radius of Action -
Dimensions	Length - ; Width - ; Height - ; G/C - ; TC
Weights	Unladen - ; Laden - :
Body
Tyres
Notes
