Mechanical Transport AP2782A (Section 10) - Fire/Crash Tenders
|
Crossley, 3 ton, 4x4, Fire Crash Tender [FWD (Type T)?] |
|
| RAF Ref No | not stated |
| Engine | Crossley, 4 cyl, petrol, OHV. Bore: 110mm (4.31 in), Stroke: 140 mm (5.5 in), Capacity: 5.266 litres (321.35 cu in). Max BHP - 90 at 2,500 rpm, (governed to 2,500); Max torque - 2,770 lbs/ins at 1,500 rpm. RAC Rating - 29.8 hp |
| Transmission |
Gearbox (Main) - 4 speed and 1 reverse. Ratios: 1st - 5.34 to
1, 2nd - 2.985 to 1, 3rd - 1.71 to 1, 4th - 1 to 1, reverse - 4.7 to 1: Auxiliary Box - 2 speed with power take off. Ratios - 1 to 1 (High) and 2.15 to 1 (Low). Front axle - Overhead worm gear, 7.75 to 1. Torque transmission to hubs through constant velocity joints. Rear axle - Overhead worm gear, 7.75 to 1. Full-floating hubs. Overall ratios (High) - 41.38 to 1, 23.13 to 1, 13.25 to 1, 7.75 to 1, Reverse - 36.42 to 1. Overall ratios (Low) - 88.96 to 1, 49.73 to 1, 28.49 to 1, 16.66 to 1, Reverse - 78.3 to 1. |
| Suspension | Semi elliptical, front and rear |
| Performance | Max Speed - not stated; MPG - 7; Radius of Action - 180 miles |
| Dimensions | Length - 20 ft 0 in; Width - 7 ft 6 in; Height - 7 ft 9 in; WB - 11 ft 6 in; G/C - 1 ft 2 in (laden); TC - 55 ft 0 in; Track - 6 ft 2¾ in (front), 5 ft 10-5/8 in (rear) |
| Weights | Unladen - not stated; Laden - 7 tons 13 cwt. |
| Equipment |
Cab - Open type with folding canopy, seats driver and
one passenger. A combined 300 gallon water and 25 gallon compound tank connected to Ellehammer foam making pump. The foam pump, which is mounted at the rear and driven by a power take-off is capable of pumping 1,000 gallons per minute. The pump supplies four 65 ft lengths of hose, each terminating in a spreader nozzle. Four 60 lb CO2 gas cylinders are carried on the tank, together with two 60 ft lengths of high pressure delivery hose. A heating compartment is fitted over the tank. |
| Brakes |
Foot, hydraulic vacuum servo
assisted on all wheels. Hand brake - mechanical (cable operated) on all wheels. Trailer brake connections - Single line vacuum. |
| Wheels/Tyres | 8.37-20 two-piece/12.00-20 low pressure |
| Notes |
Steering - Cam and lever.
Also shown in AP2782, Group 4. |
|

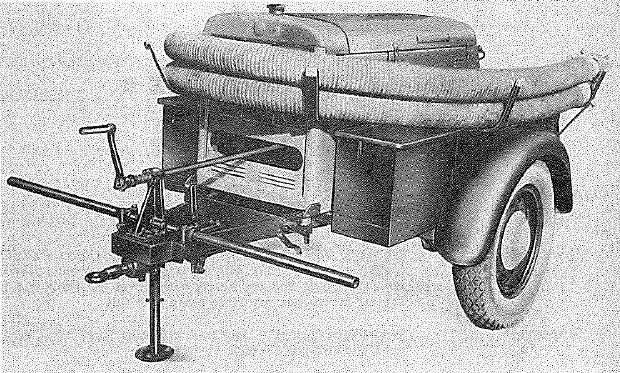

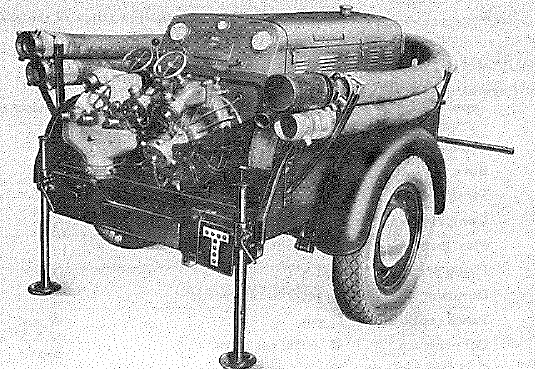

Trailer, Fire Pump, Type B (Coventry Climax)
Crown Copyright© |
|
| RAF Ref No | 16A/1769 |
| General Information | |
| Chassis type | |
| Body | |
| Suspension, Wheels & Tyres | |
| Equipment | |
| Dimensions | Length - ; Width - ; Height - ; WB - ; G/C - ; TC - : |
| Weights | Unladen - ; Laden - : |
| Notes | |
|
Crossley, 3 ton, 6x4, Model IGL3, Fire Crash Tender |
|
| RAF Ref No | not stated |
| Engine | Crossley, 4 cyl, petrol, OHV. Bore: 110mm (4.31 in), Stroke: 140 mm (5.5 in), Capacity: 5.266 litres (321.35 cu in). Max BHP - 90 at 2,500 rpm, (governed to 2,500); Max torque - 2,770 lbs/ins at 1,500 rpm. RAC Rating - 29.8 hp |
| Transmission |
Clutch - Single dry plate Gearbox - 4 speed and 1 reverse. Ratios: 1st - 5.35 to 1, 2nd - 2.99 to 1, 3rd - 1.7 to 1, 4th - 1 to 1, reverse - 4.69 to 1: Auxiliary Box - 2 speed. Ratios - 1 to 1 (High) and 3.18 to 1 (Low). Front axle - 'H' section beam. Rear axle - ¾-floating, overhead worm drive, ratio - 7.25 to 1. Overall ratios (High) - 38.8 to 1, 21.7 to 1, 12.4 to 1, 7.25 to 1, Reverse - 34.0 to 1. Overall ratios (Low) - 123.1 to 4, 69.01 to 1, 39.43 to 1, 23.05 to 1, Reverse - 108.1 to 1. |
| Performance | Max Speed - not stated; MPG - not stated; Radius of Action - not stated |
| Dimensions |
No overall dimensions given. WB - 12 ft 6 in; BC - 4 ft 0 in; G/C - 1 ft 2 in; TC - 58 ft; Track - 6 ft 2 in (front), 5 ft 11 in (rear). |
| Weights | Unladen - 4 tons 16 cwt; Laden - 8 tons 9½ cwt. Shipping tonnage - 41.78 tons. |
| Suspension | Front - semi elliptical with Gruss air springs. Rear - dual inverted semi-elliptical spring pivoted at centre. |
| Equipment |
Cab - Open type with folding canopy, seats driver and
one passenger. A combined 300 gallon water and 25 gallon compound tank connected to Ellehammer foam making pump. The foam pump, which is mounted at the rear and driven by a power take-off is capable of pumping 1,000 gallons per minute. The pump supplies four 65 ft lengths of hose, each terminating in a spreader nozzle. Four 60 lb CO2 gas cylinders are carried on the tank, together with two 60 ft lengths of high pressure delivery hose. A heating compartment is fitted over the tank. |
| Brakes | Foot - Mechaical servo assisted on forward rear wheels. Hand brake - mechanical on rear wheels. |
| Wheels/Tyres | Split disc wheels/10.50-20 |
| Notes |
Steering - Cam and lever. Also shown in AP2782A, Section 10. |
|

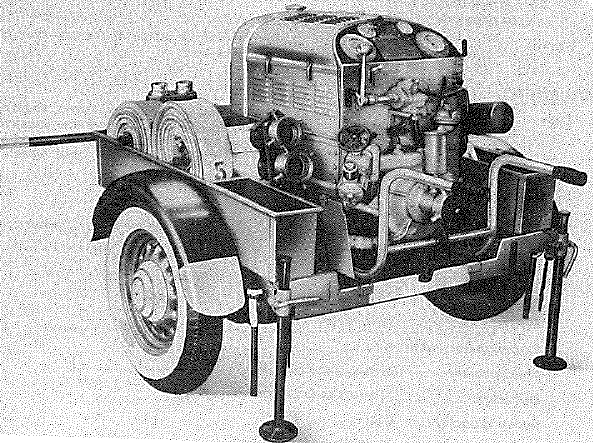

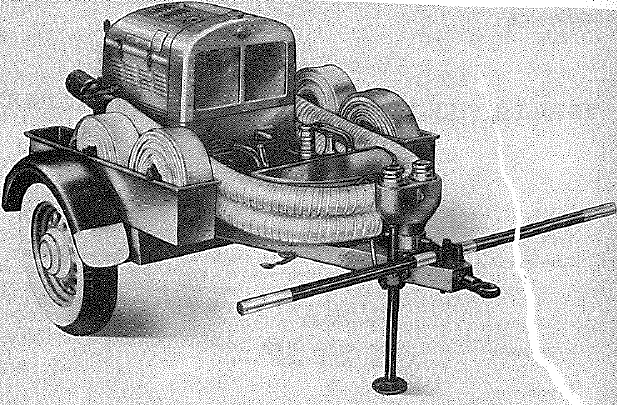

Trailer, Fire Pump, Type D, (Coventry Climax)
Crown Copyright© |
|
| RAF Ref No | 16A/1773 |
| General Information | |
| Chassis type | |
| Body | |
| Suspension, Wheels & Tyres | |
| Equipment | |
| Dimensions | Length - ; Width - ; Height - ; WB - ; G/C - ; TC - : |
| Weights | Unladen - ; Laden - : |
| Notes | |
|
Ford, 3 ton. 6x4, Model WOT 1 chassis with Fire Crash Tender body Ford, 3 ton. 6x4, Model WOT1, Fire Crash Tender, 1944 Monitor (Foam)
Crown Copyright© |
|
| RAF Ref No | 16A/535 |
| Engine | Ford, petrol V8. Bore: 77.79 mm (3.0625 in), Stroke: 95.25 mm (3.75 in), Capacity: 3.62 litres (221 cu in), RAC rating - 30.01 hp. Max BHP - 60 at 2,840 rpm; Max torque - 1,800 lbs/ins at 2,000 rpm. |
| Transmission |
Clutch - Single dry plate Gearbox - 4 speed and 1 reverse. Ratios: 1st - 6.4 to 1, 2nd - 3.1 to 1, 3rd - 1.69 to 1, 4th - 1 to 1, reverse - 7.82 to 1: Front axle - 'H' Section. Rear axle - Full floating, spiral bevel drive, ratios 6.67 to 1. Overall ratios - 42.68 to 1, 20.6 to 11.27 to 1, 6.67 to 1, reverse - 52.16 to 1 |
| Performance | Max Speed - not stated; MPG - 8; Radius of Action - 125 miles |
| Dimensions | Length - 21 ft 6 in; Width - 7 ft 4 in; Height - 10 ft 0 in; WB - 13 ft 8½ in; BC - 3 ft 6¼ in; G/C - 9½ in (rear axle); TC - 59 ft; Track - 5 ft 9 in (front), 5 ft 5 in (rear) |
| Weights | Laden - 6 tons 7 cwt. |
| Body |
Body - Equipment mounted on sub-frame. Cab - Open type with folding canopy, seats for driver and one passenger. Equipment - Compartmented tank for 300 gallons of water and 100 gallons of foam compound. Centrifugal foam pump driven by a Ford V-8, 30 hp engine. Three monitor type branch pipes and a manually operated elevating ladder. A 20 ft length of 3 in diameter suction hose. Foam compound and water is piped to the foam pump which is fitted at the rear of the chassis. The pump engine is mounted amidships. The foam pump delivery connects with the three monitors, one of which is mounted at the top of the elevating ladder. Capacity of pump engine fuel tank - 4½ gallons. Other equipment includes - microphone and loudspeaker, two lockers at rear of the chassis for the stowage of hose, immersion heaters in the prime mover and pump engine radiator, fire bell, searchlight and fog lamp. The running boards are extended at each side to carry a crew of five men. |
| Suspension | Front - Semi-elliptical , Rear - Inverted semi-elliptical trunnion mounted at centre |
| Brakes | Foot, mechanical on all wheels. Hand brake - mechanical on all wheels. |
| Wheels/Tyres | 9.00-16 or 10.50-16 singles on all wheels. |
| Notes |
Steering - Worm and sector. Electrical equipment - 6V. |
|

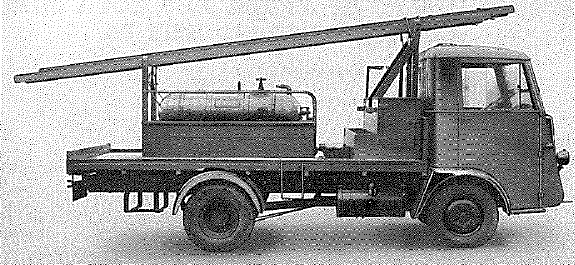

Karrier, 2 ton, 4x2 chassis with Domestic Fire Tender body
Crown Copyright© |
|
| RAF Ref No | 16A/320 |
| Engine | |
| Gearbox | |
| Performance | Max Speed - ; MPG - ; Radius of Action - |
| Dimensions | Length - ; Width - ; Height - ; G/C - ; TC |
| Weights | Unladen - ; Laden - : |
| Body | |
| Tyres | |
| Notes | |
|
Austin 3 ton, x4, Model K6
chassis equipped as Fire Crash Tender, CO2
Crown Copyright© |
|
| RAF Ref No | 16A/1228 (Vehicle); 16A/641 (Chassis): |
| Engine | |
| Gearbox | |
| Performance | Max Speed - ; MPG - ; Radius of Action - |
| Dimensions | Length - ; Width - ; Height - ; G/C - ; TC |
| Weights | Unladen - ; Laden - : |
| Body | |
| Tyres | |
| Notes | |
|

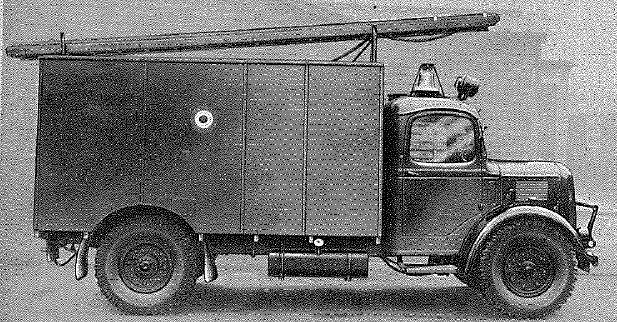

Austin 2 ton., 4x2, Model K2
chassis with Domestic Fire Tender body
Crown Copyright© |
|
| RAF Ref No | 16A/637 (Vehicle); 16A/634 (Chassis): |
| Engine | |
| Gearbox | |
| Performance | Max Speed - ; MPG - ; Radius of Action - |
| Dimensions | Length - ; Width - ; Height - ; G/C - ; TC |
| Weights | Unladen - ; Laden - : |
| Body | |
| Tyres | |
| Notes | |
|
Ford, 3 ton. 6x4, Model WOT 1A-1A/1 equipped as Fire Crash Tender, 1945 Monitor (Foam)
Crown Copyright© |
|
| RAF Ref No | 16A/1227 (WOT 1A); 16A/804 (WOT 1A/1) |
| Engine | |
| Gearbox | |
| Performance | Max Speed - ; MPG - ; Radius of Action - |
| Dimensions | Length - ; Width - ; Height - ; G/C - ; TC |
| Weights | Unladen - ; Laden - : |
| Body | |
| Tyres | |
| Notes | |
|

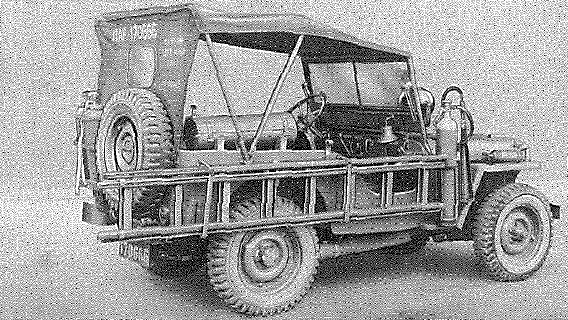

Ford/Willys, 5 cwt, 4x4, equipped as Aircraft Crash Rescue Tender
Crown Copyright© |
|
| RAF Ref No | 16A/1217 |
| Engine | |
| Gearbox | |
| Performance | Max Speed - ; MPG - ; Radius of Action - |
| Dimensions | Length - ; Width - ; Height - ; G/C - ; TC |
| Weights | Unladen - ; Laden - : |
| Body | |
| Tyres | |
| Notes | |
|
Thorneycroft, 3-ton, 4x4, TF/B80
Nubian chassis equipped as Fire Crash Tender, Mark 5
Crown Copyright© |
|
| RAF Ref No | 16A/1395 (Vehicle); 16A/1523 (Chassis): |
| Engine | Rolls-Royce, petrol, 8-cyl, liquid cooled, 155 bhp @ 3,500 rpm. |
| Gearbox | |
| Performance | Max Speed - ; MPG - ; Radius of Action - : |
| Dimensions | Length - 22ft 0in/46.70m; Width - 7ft 7in/2.31m; Height - 10ft 7in/3.22m; WB - 12ft 0in/3.65m; G/C - 13in/330mm; TC - : |
| Weights | Unladen - 10 tons 5 cwt; Laden - : |
| Body | |
| Tyres | |
| Notes | Foam-producing vehicle for aircraft crash and fire-fighting duties and capable of delivering water alone for use in domestic fire-fighting. |
|
Sigma Light Fire Pump Trailer |
|
| RAF Ref No | 16A/1775 (Vehicle); 16A/1869 (Chassis): |
| Engine | |
| Gearbox | |
| Performance | Max Speed - ; MPG - ; Radius of Action - |
| Dimensions | Length - ; Width - ; Height - ; G/C - ; TC |
| Weights | Unladen - ; Laden - : |
| Body | |
| Tyres | |
| Notes | |
|
Thorneycroft, 3-ton, 4x4, TF/B80
Nubian chassis equipped as Fire Crash Tender, Mark 5A
Crown Copyright© |
|
| Engine | 16A/2108 (Vehicle); 16A/1523 (Chassis): |
| Gearbox | Rolls-Royce, petrol, 8-cyl, liquid cooled, 155 bhp @ 3,500 rpm. |
| Performance | Max Speed - ; MPG - ; Radius of Action - : |
| Dimensions | Length - 21ft 0in/6.40m; Width - 7ft 6in/2.30m; Height - 10ft 0in/3.05m; WB - 12ft 0in/3.65m; G/C - 12in/300mm; TC - : |
| Weights | Unladen - 9 tons 2 cwt; Laden - : |
| Body | |
| Tyres | |
| Notes | Foam-producing vehicle for aircraft crash and fire-fighting duties and capable of delivering water alone for use in domestic fire-fighting. |
