AP2782 - Group 7

BC = Bogie Centres. GC = Ground Clearance. MPG = Miles per gallon. TC = Turning Circle. WB = Wheelbase.

RAF (Stores) Ref Nos were not given in this document but where they are shown, they have been assumed from later versions of AP2782. This edition also did not include photos so these have been added from AP2782A. When a vehicle appears in more than one edition of AP2782, the technical details have been assembled from all available data.

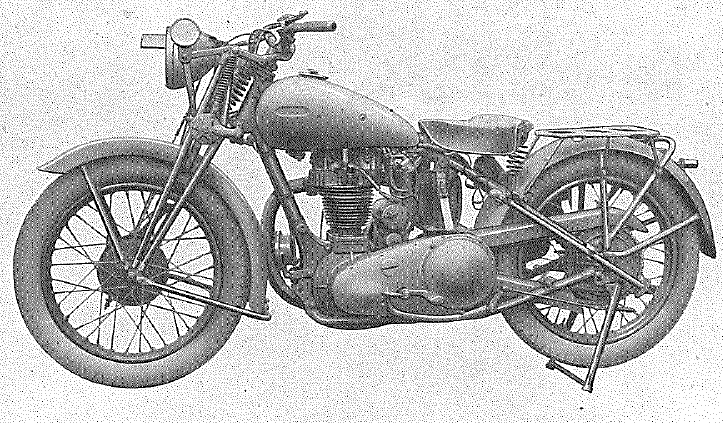

Ariel 350 cc, OHV, solo motor cycle Crown Copyright^©
Manufacturer	Ariel
RAF Ref No	Unknown
Engine	Ariel, single-cylinder, OHV. Bore: 72 mm (2.83 in), Stroke: 85 mm (3.34 in), Capacity: 349 cc, Compression ratio - 6.5 to 1; Max BHP - 12.8 at 4,500 rpm.
Transmission	Clutch - 3-plate Gearbox - Berman 4 speed. Ratios: 1st - 3.17 to 1, 2nd - 2 to 1, 3rd - 1.52 to 1, 4th - 1 to 1. Primary chain - ½ in pitch x 0.305 in wide, 80 links. Secondary chain - ¾ in pitch x 0.375 in wide, 92 links. Engine sprocket - 20 teeth, clutch sprocket - 44 teeth. Gearbox sprocket - 18 teeth, Wheel sprocket - 47 teeth Overall ratios - 18.1 to 1, 12 to 1, 8.7 to 1, 5.7 to 1.
Brakes	Front - Internal expanding, 6½ in diameter Rear - Internal expanding, 7 in diameter
Steering	Resilient handle bar mounting with damper.
Performance	Standing ¼ mile - 42.9 mph; MPG - 80 (road); Radius of Action - 200 miles
Dimensions	Length - 7 ft 0 in; Width - 2 ft 5½ in; Height - 3 ft 6 in; WB - 4 ft 7 in; G/C - 5½ in (sump guard); TC - 14 ft 5 in (right), 14 ft 10 in (left).
Weights	Unladen - 3 cwt
Wheels/Tyres	Front - 36 spokes, rear - 40 spokes/3.25-19
Notes	Electrical equipment - Lucas 6V. Also shown in AP2782A, Section 12.

BSA 350 cc, OHV, B30 Lightweight, solo motor cycle
Manufacturer	BSA
RAF Ref No	Unknown
Engine	BSA, single-cylinder, OHV. Bore: 71 mm, Stroke: 88 mm, Capacity: 348 cc; Max BHP - 14.96 at 4,850 rpm.
Transmission	Clutch - 4-plate, three with Ferodo inserts, one with cork inserts. Gearbox - 4 speed foot operated. Primary chain - ½ in pitch x 0.305 in wide, 69 links. Secondary chain - 5/8 in pitch x 0.25 in wide, 95 links. Overall ratios - 17.1 to 1, 12 to 1, 7.85 to 1, 6.03 to 1.
Brakes	Internal expanding, 7 in drums, front - hand operated, rear - foot operated.
Performance	Standing ¼ mile - 43.6 mph; MPG - 80 (road); Radius of Action - 180 miles
Dimensions	Length - 6 ft 7½ in; Width - 2 ft 4½ in; Height - 3 ft 0½ in; WB - 4 ft 5 in; G/C - 6 in (sump guard); TC - 13 ft 8½ in.
Weights	Unladen - 339 lbs (with full tanks)
Tyres	3.25-19
Notes

BSA M20, 500 cc side valve, solo motor cycle
Manufacturer	BSA
RAF Ref No	Unknown
Engine	BSA, single-cylinder, side valve. Bore: 82 mm (3.228 in), Stroke: 94 mm (3.701 in), Capacity: 496 cc; Compression ratio - 4.9 to 1; Max BHP - 12 at 4,100 rpm.
Transmission	Clutch - Multi-plate, with Ferodo linings. Gearbox - 4 speed foot operated. Primary chain - ½ in pitch x 0.305 in wide, 69 links. Secondary chain - 5/8 in pitch x 0.25 in wide, 95 links. Engine sprocket - 19 teeth, clutch sprocket - 43 teeth. Gearbox sprocket - 18 teeth, Wheel sprocket - 42 teeth Overall ratios - 15.8 to 1, 10.9 to 1, 7.0 to 1, 5.28 to 1.
Brakes	Internal expanding, 7 in drums, front - hand operated, rear - foot operated.
Performance	Standing ¼ mile - 35.2 mph; MPG - 50 (road); Radius of Action - 150 miles
Dimensions	Length - 7 ft 2 in; Width - 2 ft 5 in; Height - 3 ft 3 in; WB - 4 ft 6 in; G/C - 4-5/8 in; TC - 14 ft 5 in (right), 13 ft 6 in (left).
Weights	Unladen - 3½ cwt (with full tanks)
Tyres	3.25-19
Notes	Electrical equipment - Lucas 6V.

Indian Motor Cycle Model 741, 500cc, solo,
Manufacturer	Indian
RAF Ref No	Unknown
Engine	Indian, twin-cylinder, V-type, air-cooled. Bore: 2½ in, Stroke: 3-1/16 in, Capacity: 30.07 cu in; Max BHP - 14 at 4,800 rpm.
Transmission	Clutch - Multiple disc Gearbox - 3 speed. Primary chain - 3/8 in pitch three row Final chain - 5/8 in pitch x 3/8 in wide, roller chain, 94 links. Overall ratios - 12.58 to 1, 7.16 to 1, 5.09 to 1.
Brakes	Internal expanding, 7-1/8 in drums, front and rear
Performance	Standing ¼ mile - 40 mph; MPG - 53 (road); Radius of Action - 160 miles
Dimensions	Length - 7 ft 5¾ in; Width - 2 ft 9 in; Height - 3 ft 4 in; WB - 4 ft 8½ in; G/C - 4 in (brake rod), 5 in (sump).
Weights	Unladen - 484 lbs (with full tanks)
Tyres	3.50-18
Notes

Matchless G3, 350cc, OHV, solo motor cycle
Manufacturer	Matchless
RAF Ref No	Unknown
Engine	Matchless, single-cylinder, OHV. Bore: 69 mm (2.71 in), Stroke: 93 mm (3.66 in), Capacity: 347 cc; Compression ratio - 5.88 to 1; Max BHP - 16 at 5,600 rpm.
Transmission	Clutch - Multi-plate, with Ferodo linings. Gearbox - 4 speed foot operated. Ratios: 1st - 2.69 to 1, 2nd - 1.77 to 1, 3rd - 1.29 to 1, 4th - 1 to 1. Primary chain - ½ in pitch x 0.305 in wide, 66 links. Secondary chain - 5/8 in pitch x 0.380 in wide, 91 links. Engine sprocket - 18 teeth, clutch sprocket - 40 teeth. Gearbox sprocket - 16 teeth, Wheel sprocket - 42 teeth Overall ratios - 15.6 to 1, 10.3 to 1, 7.5 to 1, 5.8 to 1.
Performance	Standing ¼ mile - 38.3 mph; MPG - 59.2 (road); Radius of Action - 175 miles
Dimensions	Length - 6 ft 10½ in; Width - 2 ft 6½ in; Height - 3 ft 6¾ in; WB - 4 ft 6 in; G/C - 4½ in; TC - not stated.
Weights	Unladen - 3¼ cwt (with full tanks)
Tyres	3.25-19
Notes	Electrical equipment - Lucas 6V. Also shown in AP2782A, Section 12.

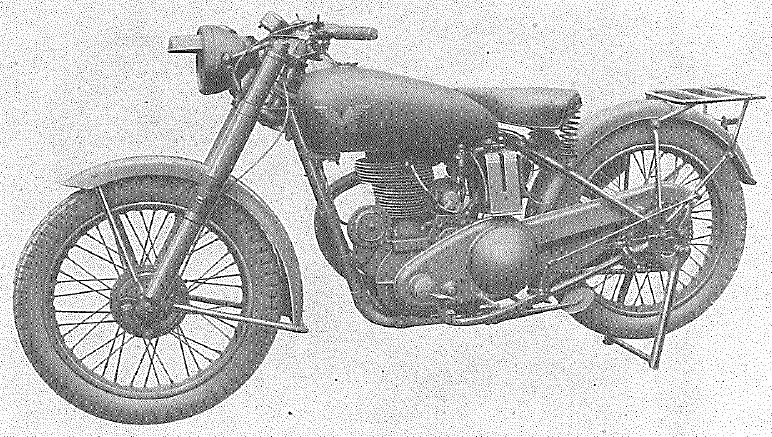

Matchless Lightweight, G3L, 350cc, OHV, solo motor cycle Crown Copyright^©
Manufacturer	Matchless
RAF Ref No	Unknown
Engine	Matchless, single-cylinder, OHV. Bore: 69 mm (2.71 in), Stroke: 93 mm (3.66 in), Capacity: 347 cc; Compression ratio - 5.88 to 1 (with compression plate), 6.3 to 1 (without); Max BHP - 16 at 5,600 rpm.
Transmission	Clutch - Multi-plate, with Ferodo linings. Gearbox - 4 speed foot operated. Ratios: 1st - 3.19 to 1, 2nd - 2.1 to 1, 3rd - 1.29 to 1, 4th - 1 to 1. Primary chain - ½ in pitch x 0.305 in wide, 66 links. Secondary chain - 5/8 in pitch x 0.380 in wide, 91 links. Engine sprocket - 18 teeth, clutch sprocket - 40 teeth. Gearbox sprocket - 16 teeth, Wheel sprocket - 42 teeth Overall ratios - 18.5 to 1, 12.2 to 1, 7.5 to 1, 5.8 to 1.
Brakes	Internal expanding, 7 in drums, front and rear
Suspension	Teledraulic front forks.
Performance	Standing ¼ mile - 43.3 mph; MPG - 76.1 (road); Radius of Action - 225 miles
Dimensions	Length - 6 ft 10½ in; Width - 2 ft 6½ in; Height - not stated; WB - 4 ft 3 in; G/C - 6¼ in; TC - 15 ft 10 in (right), 15 ft 0 in (left).
Weights	Unladen - 2¾ cwt (with full tanks)
Wheels/Tyres	19 x 2½ in spoked/3.25-19
Notes	Electrical equipment - Lucas 6V. Also shown in AP2782A, Section 12.

Norton 16H, 500cc, side valve, solo motor cycle Crown Copyright^©
Manufacturer	Norton
RAF Ref No	Unknown
Engine	Norton, single-cylinder, side valve. Bore: 79 mm (3.11 in), Stroke: 100 mm (3.9381 in), Capacity: 490 cc; Compression ratio - 4.9 to 1; Max BHP - 12 at 4,800 rpm.
Transmission	Clutch - Multi-plate, with Ferodo linings. Incorporates vane type rubber buffer shock absorber. Gearbox - 4 speed foot operated. Ratios: 1st - 2.97 to 1, 2nd - 1.77 to 1, 3rd - 1.21 to 1, 4th - 1 to 1. Primary chain - ½ in pitch x 0.305 in wide, 74 links. Secondary chain - 5/8 in pitch x 0.25 in wide, 91 links. Engine sprocket - 18 teeth, clutch sprocket - 42 teeth. Gearbox sprocket - 19 teeth, Wheel sprocket - 43 teeth Overall ratios - 15.7 to 1, 9.35 to 1, 6.39 to 1, 5.28 to 1.
Brakes	Internal expanding, 7 in drums, front - hand operated, rear - foot operated.
Performance	Standing ¼ mile - 37.2 mph; MPG - 50 (road); Radius of Action - 160 miles
Dimensions	Length - 7 ft 1½ in; Width - 2 ft 6 in; Height - 3 ft 2¾ in; WB - 4 ft 6 in; G/C - 5½ in; TC - 14 ft 5½ in (right), 14 ft 1 in (left).
Weights	Unladen - 3¼ cwt (with full tanks)
Wheels/Tyres	WM 2-19/3.25-19
Notes	Electrical equipment - Lucas 6V. Also shown in AP2782A, Section 12.

Norton 633cc, with sidecar wheel drive
Manufacturer	Norton
RAF Ref No	Unknown
Engine	Norton, single-cylinder, side valve. Bore: 82 mm, Stroke: 120 mm, Capacity: 633 cc; Max BHP - 14.52 at 4,000 rpm.
Transmission	Clutch - Multi-plate, with Ferodo inserts. Gearbox - 4 speed foot operated. Primary chain - ½ in pitch x 0.305 in wide, 74 links. Secondary chain - 5/8 in pitch x 0.25 in wide, 95 links. Sidecar wheel drive - From shaft incorporating a dog clutch and Hardy Spicer coupling, engaged by a lever which can be operated by either the driver or passenger. Overall ratios - 23.6 to 1, 15.3 to 1, 9.4 to 1, 6.4 to 1.
Brakes	Internal expanding, 7 in drums, front and rear.
Performance	Standing ¼ mile - 30.6 mph; MPG - 30 (road); Radius of Action - 107 miles (with sidecar wheel drive and 3 men)
Dimensions	Length - 7 ft 2 in; Width - 5 ft 6½ in; Height - 3 ft 10½ in, 3 ft 3¾ in (cut down); WB - 4 ft 6 in; G/C - 5¼ in; Track - 3 ft 9½ in.
Sidecar	Hardwood body, folding screen. Clips fitted to body between machine and sidecar to carry a Bren gun. Ammunition box at back of sidecar. Pillion seat for third passenger.
Weights	Unladen - 679 lbs, Laden - 1,232 lbs
Wheels/Tyres	4.00-18, spare wheel carried on back of sidecar.

Royal Enfield 350cc, OHV, solo motor cycle Crown Copyright^©
Manufacturer	Royal Enfield
RAF Ref No	Unknown
Engine	Enfield, single-cylinder, OHV. Bore: 70 mm (2.75 in), Stroke: 90 mm (3.54 in), Capacity: 346 cc; Compression ratio - 5.75 to 1; Max BHP - 13.5 at 5,000 rpm.
Transmission	Clutch - Multi-plate, with Ferodo inserts Gearbox - 4 speed foot operated. Ratios: 1st - 3.29 to 1, 2nd - 1.98 to 1, 3rd - 1.4 to 1, 4th - 1 to 1. Primary chain - ½ in pitch x 0.305 in wide, 74 links. Secondary chain - 5/8 in pitch x 0.380 in wide, 89 links. Engine sprocket - 19 teeth, clutch sprocket - 42 teeth. Gearbox sprocket - 18 teeth, Wheel sprocket - 46 teeth Overall ratios - 18.6 to 1, 11.2 to 1, 7.9 to 1, 5.65 to 1.
Brakes	Front - Internal expanding, 6 in drum. Rear - Internal expanding, 7 in drum.
Performance	Standing ¼ mile - 41.8 mph; MPG - 72.7 (road); Radius of Action - 200 miles
Dimensions	Length - 7 ft 1 in; Width - 2 ft 4 in; Height - 3 ft 4 in; WB - 4 ft 6 in; G/C - 4½ in (rear mudguard); TC - not stated.
Weights	Unladen - 3¼ cwt (with full tanks)
Wheels/Tyres	WM 2-19 Front and rear rims interchangeable/3.25-19
Notes	Electrical equipment - Lucas 6V. Also shown in AP2782A, Section 12.

Royal Enfield 350cc, side valve, solo motor cycle
Manufacturer	Royal Enfield
RAF Ref No	Unknown
Engine	Enfield, single-cylinder, side valve. Bore: 70 mm (2.75 in), Stroke: 90 mm (3.54 in), Capacity: 346 cc; Max BHP - 9.5 at 4,500 rpm.
Transmission	Clutch - Multi-plate, with Ferodo inserts. Gearbox - 4 speed foot operated. Primary chain - ½ in pitch x 0.305 in wide, 74 links. Secondary chain - 5/8 in pitch x 0.25 in wide, 89 links. Engine sprocket - 19 teeth, clutch sprocket - 42 teeth. Gearbox sprocket - 18 teeth, Wheel sprocket - 46 teeth Overall ratios - 17.6 to 1, 10.7 to 1, 8.05 to 1, 5.96 to 1.
Brakes	Internal expanding, 6 in drum. Front - hand operated, rear - foot operated.
Performance	Standing ¼ mile - 40.7 mph; MPG - 64.5 (road); Radius of Action - 190 miles
Dimensions	Length - 7 ft 1 in; Width - 2 ft 4½ in; Height - 3 ft 2 in; WB - 4 ft 5 in; G/C - 4¼ in; TC - not stated.
Weights	Unladen - 353 lbs (with full tanks)
Tyres	3.25-19
Notes

Triumph, 350cc, type 3SW, solo motor cycle,
Manufacturer	Triumph
RAF Ref No	Unknown
Engine	Triumph, single-cylinder, side valve. Bore: 70 mm (2.75 in), Stroke: 89 mm (3.50 in), Capacity: 343 cc; Compression ratio - 5.3 to 1; Max BHP - 10 at 4,800 rpm.
Transmission	Clutch - Multi-plate, with cork inserts Gearbox - 4 speed foot operated. Ratios: 1st - 3.12 to 1, 2nd - 2.33 to 1, 3rd - 1.47 to 1, 4th - 1 to 1. Primary chain - ½ in pitch x 0.305 in wide, 74 links. Secondary chain - 5/8 in pitch x 0.375 in wide, 90 links. Engine sprocket - 18 teeth, clutch sprocket - teeth. Gearbox sprocket - teeth, Wheel sprocket - 46 teeth Overall ratios - 18.7 to 1, 14.0 to 1, 8.84 to 1, 6.0 to 1.
Brakes	Internal expanding, 7 in drum. Front - hand operated, rear - foot operated.
Performance	not stated
Dimensions	Length - 6 ft 10 in; Width - 2 ft 6 in; Height - 3 ft 4 in; WB - 4 ft 4½ in; G/C - 4 in; TC - not stated.
Weights	Unladen - 3 cwt (with full tanks)
Tyres	3.25-19
Notes	Electrical equipment - Lucas 6V. Also shown in AP2782A, Section 12.

Velocette, 350cc, OHV solo motor cycle
Manufacturer	Velocette
RAF Ref No	Unknown
Engine	Velocette, single-cylinder, OHV. Bore: 68 mm, Stroke: 96 mm, Capacity: 349 cc; Max BHP - 14.9 at 5,500 rpm.
Transmission	Clutch - Multi-plate, with Ferodo inserts. Gearbox - 4 speed foot operated. Primary chain - ½ in pitch x 0.305 in wide, 75 links. Secondary chain - 5/8 in pitch x 0.375 in wide, 107 links. Overall ratios - 16.7 to 1, 9.58 to 1, 7.28 to 1, 5.47 to 1.
Brakes	Internal expanding, 6 in drum.
Performance	Standing ¼ mile - 41.7 mph; MPG - 65.6 (road); Radius of Action - 165 miles
Dimensions	Length - 7 ft 1 in; Width - 2 ft 3½ in; Height - 3 ft 1½ in; WB - 4 ft 4¼ in; G/C - 5 in; TC - 12 ft 6 in.
Weights	Unladen - 340 lbs (with full tanks)
Tyres	3.25-19
Notes

BSA 500 cc, SV, motor cycle combination
Manufacturer	BSA
RAF Ref No	Unknown
Engine	BSA M20, single-cylinder, side valve. Bore: 82 mm (3.228 in), Stroke: 94 mm (3.701 in), Capacity: 496 cc; Max BHP - 12 at 4,100 rpm; Max torque - 244 lbs ins at 3,100 rpm
Transmission	Clutch - Multi-plate, with Ferodo linings. Gearbox - 4 speed foot operated. Primary chain - ½ in pitch x 0.305 in wide, 69 links. Secondary chain - 5/8 in pitch x 0.25 in wide, 95 links. Overall gear ration - 5.9 to 1 Overall ratios - 15.8 to 1, 10.9 to 1, 7.0 to 1, 5.3 to 1.
Brakes	Front and rear - two shoe, fixed fulcrum with 7 in drums.
Sidecar	Chassis - weldless steel tube frame members, cast iron lugs. 4-point connection to cycle. Quarter elliptic springs. Coachbuilt, water tight scuttle, locker at rear with hinged lid. Mica windscreen in metal frame. Quick lift hood.
Performance	Standing ¼ mile - 35.2 mph; MPG - 50 (road); Radius of Action - 150 miles
Dimensions	Overall - Length - 7 ft 0 in; Width - 5 ft 6½ in; Height - 3 ft 3 in; WB - 4 ft 6 in; G/C - 4-5/8 in; TC - not stated. Sidecar - Length - 6 ft 2 in; Width - 1 ft 8¾ in; depth - 1 ft 8 in;
Weights	not stated
Tyres	3.25-19
Notes	Electrical equipment - Lucas 6V.

Norton 16H, 500cc, sidecar combination Crown Copyright^©
Manufacturer	Norton
RAF Ref No	Unknown
Engine	Norton, single-cylinder, side valve. Bore: 79 mm (3.11 in), Stroke: 100 mm (3.9381 in), Capacity: 490 cc; Compression ratio - 4.9 to 1; Max BHP - 12 at 4,800 rpm.
Transmission	Clutch - Multi-plate, with Ferodo linings, hand operated. Gearbox - 4 speed foot operated. Ratios: 1st - 2.97 to 1, 2nd - 1.77 to 1, 3rd - 1.21 to 1, 4th - 1 to 1. Primary chain - ½ in pitch x 0.305 in wide Secondary chain - 5/8 in pitch x 0.25 in wide. Overall ratios - 16.6 to 1, 9.88 to 1, 6.76 to 1, 5.58 to 1.
Brakes	Internal expanding, 7 in drums, front - cable operated from handlebar lever, rear - rod operated from foot pedal.
Sidecar	Single seater body fitted with door and hinged watertight scuttle. Locker with hinged lid fitted at rear.
Performance	not stated
Dimensions	Overall - Length - 7 ft 1½ in; Width - 5 ft 6½ in; Height - 3 ft 3 in; WB - 4 ft 6 in; G/C - not stated; TC - not stated' Track - not stated. Sidecar - Length - 6 ft 1½ in; Width - 1 ft 9 in; Depth - 1 ft 10 in;
Weights	Unladen -not stated
Wheels/Tyres	WM 2-19/3.25-19
Notes	Electrical equipment - Lucas 6V. Also shown in AP2782A, Section 12.
